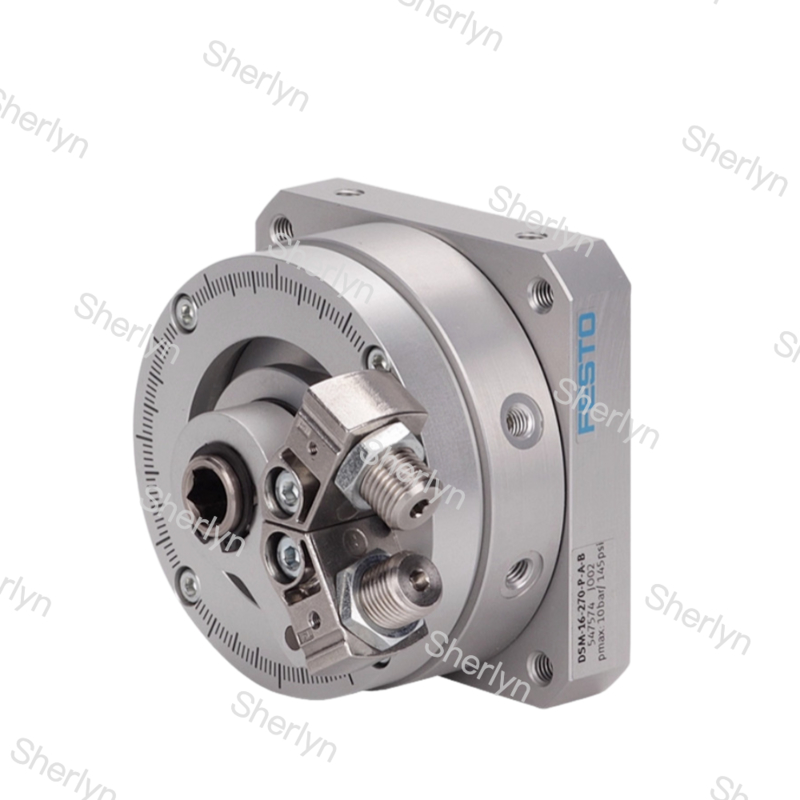

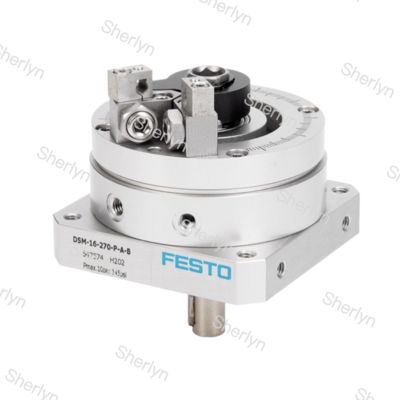

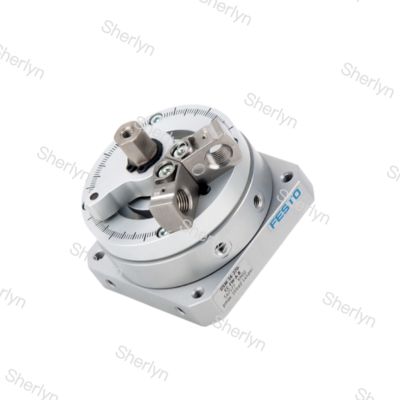

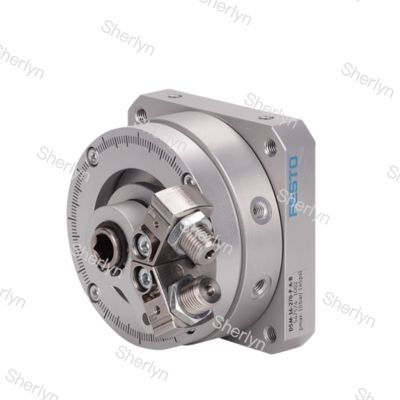

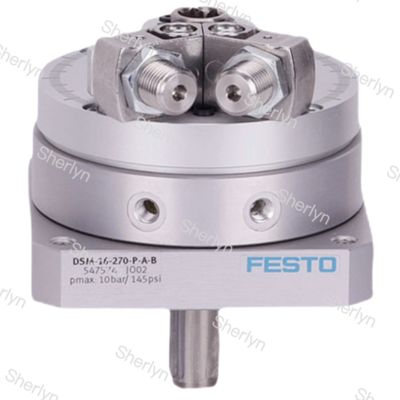

Product Description:
The core advantages of DSM series cylinders are demonstrated through various aspects:
Flexible Swing Angle and High Precision: The DSM series provides a continuously adjustable swing angle of up to 270°. With a fixed metal stopper design, it ensures high-precision terminal position positioning for accurate repeated movements.
Compact Structure and High Torque Output: By using a rotating blade structure, compressed air energy is directly converted into swinging motion, resulting in a compact and lightweight design. Certain models, like DSM-T, feature a double force blade design that can double the torque output to reach up to 80 Nm.
Diverse Buffering and Sensing Options: The DSM series offers elastic buffering pads and adjustable buffering. Basic models come equipped with elastic buffering rings/plates, while users can opt for a more robust hydraulic buffer to effectively absorb impact. Additionally, proximity switch sensing position detection is supported, with some models featuring built-in magnetic rings for easy sensor installation.
Rich Derivative Models and High-Performance Bearings: Multiple derivative models are available within the DSM series. For instance, the DSM-HD model is equipped with heavy-duty bearings capable of withstanding higher axial and radial forces. The DSM-I model integrates a rotatable potentiometer, enabling the creation of a complete servo pneumatic positioning system.
Wide Adaptability to Working Conditions: The DSM series accommodates a broad range of working pressures, varying from 2-10 bar or 0.35-0.8 MPa (depending on the model), ensuring stable operations under different pressure environments. Its design emphasizes reliability, utilizing new chamber seals and rotating blades to achieve excellent synchronicity within pressure ranges of 1.5 to 10 bar.
Applications:
DSM Series Applications
Incorporating the characteristics mentioned above, the DSM series excels in various fields and devices:
General Factory Automation: The DSM series finds widespread utilization in the realm of factory automation across diverse industries. Its compact structure and versatile installation method enable easy integration into devices with confined spaces.
Material Handling and Assembly: In the domain of grasping and assembly technology, DSM cylinders can fulfill functions such as rotating, flipping, positioning, and transferring workpieces.
Mining Machinery and Special Environments: The DSM series also serves in mining machinery and pneumatic tools. Certain models have received ATEX certification, allowing their use in potentially explosive environments. Moreover, its design, which includes models not primarily employing copper zinc nickel metal, suits industries with distinct material prerequisites like lithium battery production facilities.
High Precision Positioning System: By integrating the DSM-I series with a potentiometer, coupled with a CPX-CMAX axis controller and the proportional directional control valve VPWP, it can extend into a sophisticated servo pneumatic positioning system for achieving intricate motion control.
- Size32
- Cushioning angle1.4 deg
- Adjustment range of swivel angle0 deg ... 270 deg
- Swivel angle0 deg ... 270 deg
- Permissible stop radius≥28 mm
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Precision adjustment-6 deg
- Mode of operationDouble-acting
