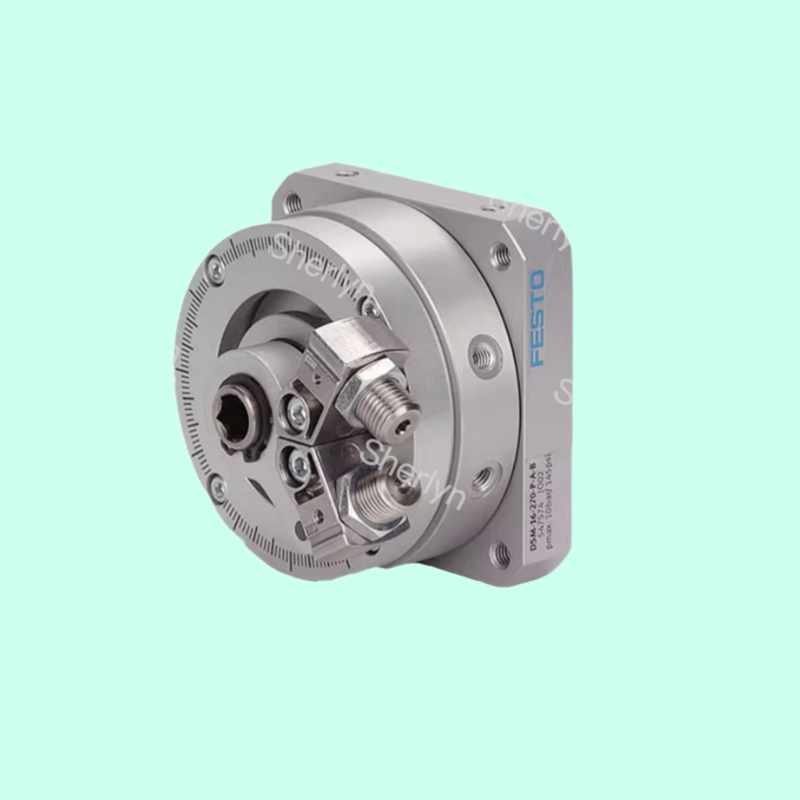

Product Description:
Core Advantages of DSM Series Cylinders
Flexible Swing Angle and High Precision: The DSM series offers a continuously adjustable swing angle of up to 270°. Thanks to the fixed metal stopper design, it can achieve high-precision terminal position positioning, ensuring the accuracy of repeated movements.
Compact Structure and High Torque Output: Adopting a rotating blade structure, the compressed air energy is directly converted into swinging motion, with a compact and lightweight structure. Some models (such as DSM-T) adopt a double force blade design, which can double the torque and reach up to 80 Nm.
Diverse Buffering and Sensing Options: The DSM series offers elastic buffering pads and adjustable buffering, with basic models equipped with elastic buffering rings/plates. Users can choose a more powerful hydraulic buffer to effectively absorb the impact generated by high moment of inertia. At the same time, it supports proximity switch sensing position detection, and some models have built-in magnetic rings for easy sensor installation.
Rich Derivative Models and High-Performance Bearings: The DSM series offers multiple derivative models. For example, the DSM-HD model is equipped with heavy-duty bearings that can withstand higher axial and radial forces. The DSM-I model also integrates a rotatable potentiometer, which can be used to build a complete servo pneumatic positioning system.
Wide Adaptability to Working Conditions: The DSM series has a wide range of working pressures, such as 2-10 bar or 0.35-0.8 MPa (depending on the model), allowing stable operation at various pressures. Its design emphasizes reliability, such as using new chamber seals and rotating blades, achieving excellent synchronicity at pressures ranging from 1.5 to 10 bar.
Applications:
With the above characteristics, the DSM series performs well in the following fields and devices:
- General Factory Automation: The DSM series is widely used in the field of factory automation across various industries. Its compact structure and flexible installation method make it easy to integrate into devices with limited space.
- Material handling and assembly: In grasping and assembly technology, DSM cylinders can be used for rotating, flipping, positioning, and transferring workpieces.
- Mining Machinery and Special Environments: The DSM series is also used in mining machinery and pneumatic tools. Some models have obtained ATEX certification and can be used in potentially explosive environments. Its design (such as some models not mainly using copper zinc nickel metal) is also suitable for industries with special material requirements such as lithium battery production facilities.
- High precision positioning system: Through the DSM-I series integrated potentiometer, combined with CPX-CMAX axis controller and proportional directional control valve VPWP, it can be extended into a high-precision servo pneumatic positioning system to achieve complex motion control.
Support and Services:
Our company provides comprehensive Product Technical Support and Services for the Piston Pneumatic Cylinder product. Our team of experts is dedicated to assisting you with any technical queries, troubleshooting, or maintenance needs related to the product. Whether you require guidance on installation, operation, or performance optimization, we are here to help.
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Description: High-quality piston pneumatic cylinder for industrial use.
Package Contents:
- 1 x Piston Pneumatic Cylinder
- Instruction Manual
- Warranty Information
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
