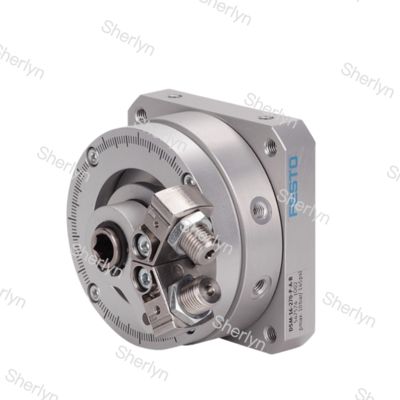

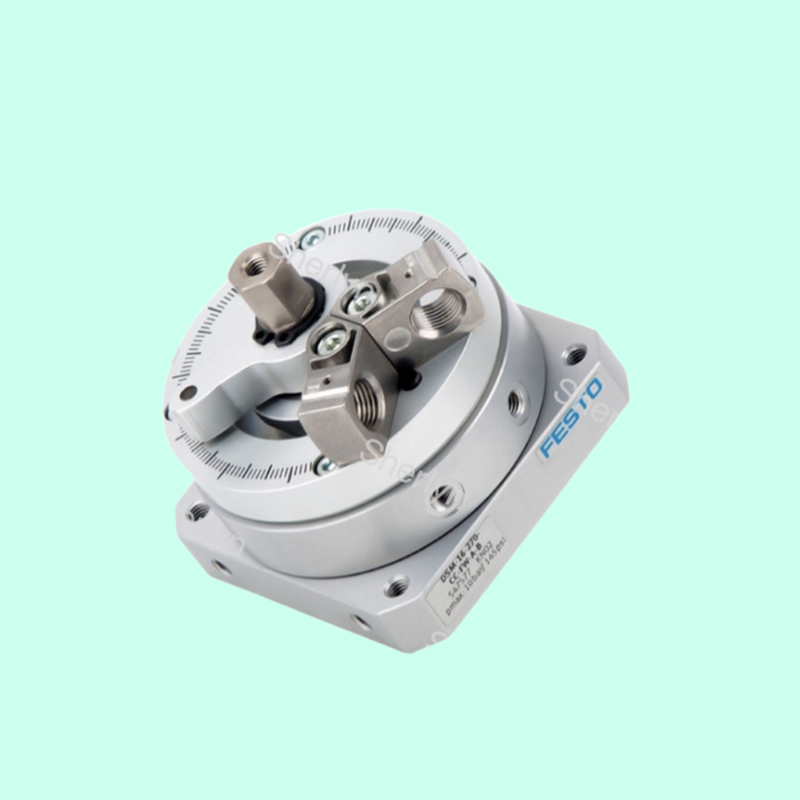

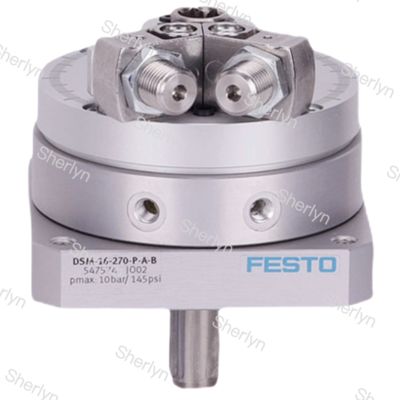

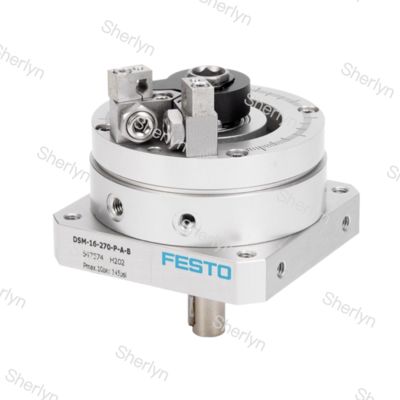

Product Description:
The core advantages of DSM series cylinders are reflected in the following aspects:
Flexible swing angle and high precision: The DSM series offers a continuously adjustable swing angle of up to 270°. Thanks to the fixed metal stopper design, it can achieve high-precision terminal position positioning, ensuring the accuracy of repeated movements.
Compact structure and high torque output: Adopting a rotating blade structure, the compressed air energy is directly converted into swinging motion, with a compact and lightweight structure. Some models (such as DSM-T) adopt a double force blade design, which can double the torque and reach up to 80 Nm.
Diverse buffering and sensing options: The DSM series offers elastic buffering pads and adjustable buffering, with basic models equipped with elastic buffering rings/plates. Users can choose a more powerful hydraulic buffer to effectively absorb the impact generated by high moment of inertia. At the same time, it supports proximity switch sensing position detection, and some models have built-in magnetic rings for easy sensor installation.
Rich derivative models and high-performance bearings: The DSM series offers multiple derivative models. For example, the DSM-HD model is equipped with heavy-duty bearings that can withstand higher axial and radial forces. The DSM-I model also integrates a rotatable potentiometer, which can be used to build a complete servo pneumatic positioning system.
Wide adaptability to working conditions: The DSM series has a wide range of working pressures, such as 2-10 bar or 0.35-0.8 MPa (depending on the model), allowing stable operation at various pressures. Its design emphasizes reliability, such as using new chamber seals and rotating blades, achieving excellent synchronicity at pressures ranging from 1.5 to 10 bar.
Applications:
With the characteristics described above, the DSM series excels in various fields and devices:
- General Factory Automation: The DSM series finds widespread use in factory automation across diverse industries. Its compact structure and flexible installation method facilitate easy integration into devices with limited space.
- Material handling and assembly: DSM cylinders are valuable in grasping and assembly technology for tasks like rotating, flipping, positioning, and transferring workpieces.
- Mining Machinery and Special Environments: The DSM series is also applied in mining machinery and pneumatic tools. Certain models have received ATEX certification, allowing use in potentially explosive environments. Additionally, the design of some models not predominantly using copper zinc nickel metal suits industries with specific material requirements, such as lithium battery production facilities.
- High precision positioning system: By integrating the DSM-I series with a potentiometer, CPX-CMAX axis controller, and proportional directional control valve VPWP, a highly accurate servo pneumatic positioning system can be created for intricate motion control tasks.
- Size12
- Cushioning angle15 deg
- Adjustment range of swivel angle0 deg ... 246 deg
- Swivel angle0 deg ... 246 deg
- Permissible stop radius≥15 mm
- CushioningPneumatic shock absorber at both ends
- Mounting positionAny
- Precision adjustment-3 deg
- Mode of operationDouble-acting
Support and Services:
Our Piston Pneumatic Cylinder product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, troubleshooting, and maintenance of the product. Additionally, we offer customization services to tailor the product to specific requirements and applications.
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Description: High-quality piston pneumatic cylinder suitable for various industrial applications.
Package Includes: Piston Pneumatic Cylinder, Mounting Hardware, User Manual
Package Dimensions: 12 x 6 x 4 inches
Package Weight: 2 lbs
Shipping Method: Standard Shipping
Shipping Time: 3-5 business days
