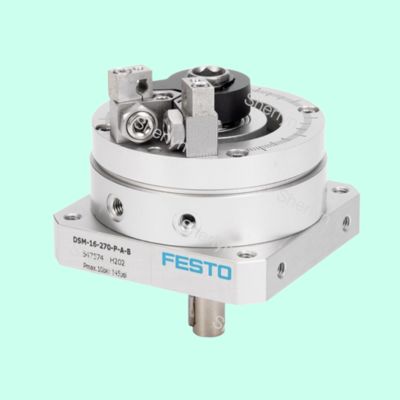

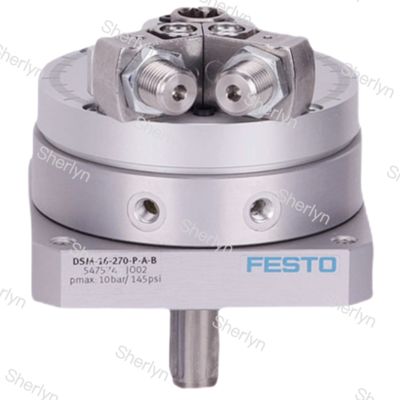

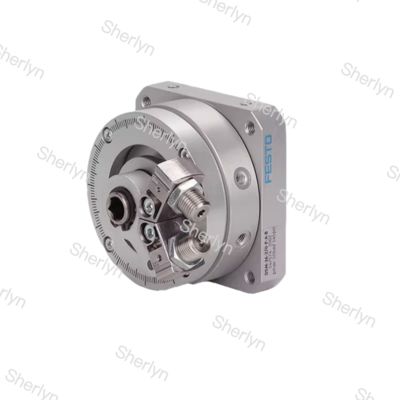

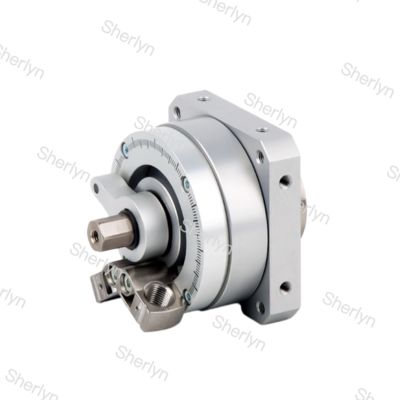

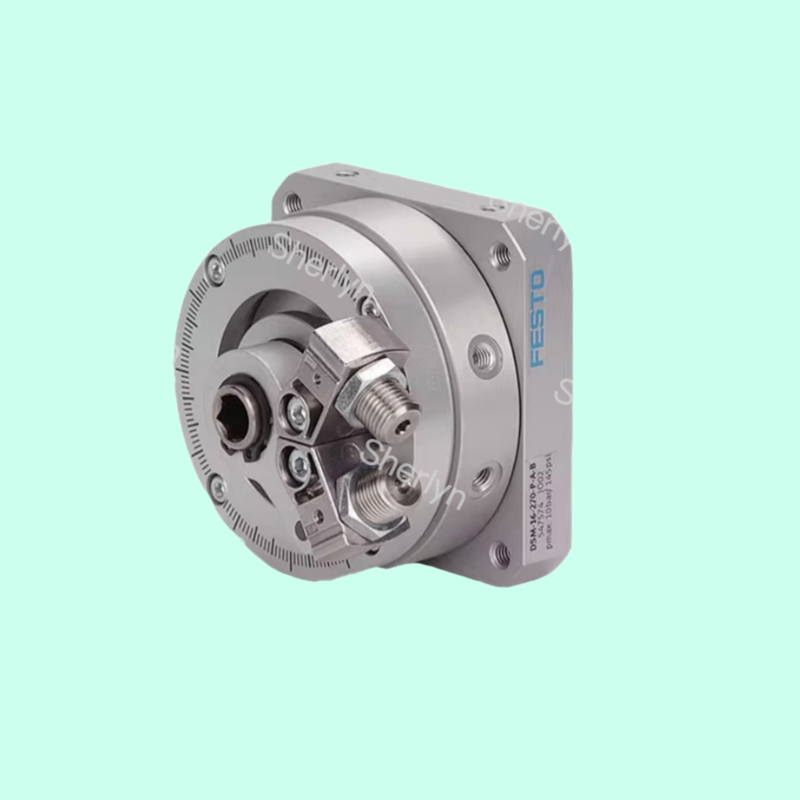

Product Description:
The core advantages of DSM series cylinders are highlighted in various aspects:
Flexible Swing Angle and High Precision: The DSM series provides a continuously adjustable swing angle of up to 270°. With a fixed metal stopper design, precise terminal position positioning is achieved, ensuring accuracy in repetitive movements.
Compact Structure and High Torque Output: Utilizing a rotating blade structure, compressed air energy is directly converted into swinging motion, resulting in a compact and lightweight structure. Certain models (such as DSM-T) feature a double force blade design, doubling the torque output to reach up to 80 Nm.
Diverse Buffering and Sensing Options: The DSM series offers elastic buffering pads and adjustable buffering, with basic models equipped with elastic buffering rings/plates. Users can opt for a more robust hydraulic buffer to effectively absorb impact from high moment of inertia. Additionally, it supports proximity switch sensing for position detection, with some models having built-in magnetic rings for convenient sensor installation.
Rich Derivative Models and High-Performance Bearings: The DSM series provides multiple derivative models. For instance, the DSM-HD model features heavy-duty bearings capable of withstanding higher axial and radial forces. The DSM-I model integrates a rotatable potentiometer, enabling the construction of a comprehensive servo pneumatic positioning system.
Wide Adaptability to Working Conditions: With a wide range of working pressures, such as 2-10 bar or 0.35-0.8 MPa (depending on the model), the DSM series ensures stable operation under various pressures. Prioritizing reliability, it incorporates new chamber seals and rotating blades to achieve excellent synchronicity at pressures ranging from 1.5 to 10 bar.
Applications:
With the above characteristics, the DSM series performs well in various fields and devices:
General Factory Automation: The DSM series is widely used in the field of factory automation across different industries. Its compact structure and flexible installation method make it easy to integrate into devices with limited space.
Material Handling and Assembly: In grasping and assembly technology, DSM cylinders can be used for rotating, flipping, positioning, and transferring workpieces.
Mining Machinery and Special Environments: The DSM series is also applied in mining machinery and pneumatic tools. Some models have obtained ATEX certification and can be used in potentially explosive environments. Its design (such as some models not mainly using copper zinc nickel metal) is also suitable for industries with special material requirements, like lithium battery production facilities.
High Precision Positioning System: Through the DSM-I series integrated potentiometer, combined with CPX-CMAX axis controller and proportional directional control valve VPWP, it can be extended into a high-precision servo pneumatic positioning system to achieve complex motion control.
- Size40
- Cushioning angle2 deg
- Adjustment range of swivel angle0 deg ... 270 deg
- Swivel angle0 deg ... 270 deg
- Permissible stop radius≥40 mm
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Precision adjustment-6 deg
- Mode of operationDouble-acting
Support and Services:
Our Product Technical Support team is dedicated to assisting you with any inquiries or issues you may have regarding our Piston Pneumatic Cylinder product. We provide comprehensive services to ensure that your product functions optimally and meets your expectations. Our team of experts is available to answer any technical questions, provide troubleshooting support, and offer guidance on maintenance and repair procedures.
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Description: High-quality piston pneumatic cylinder suitable for various industrial applications.
Package Contents: - 1x Piston Pneumatic Cylinder - User Manual - Warranty Information
Shipping Details: - Shipping Method: Standard Shipping - Estimated Delivery Time: 5-7 business days - Shipping Cost: Calculated at checkout
