Product Description:

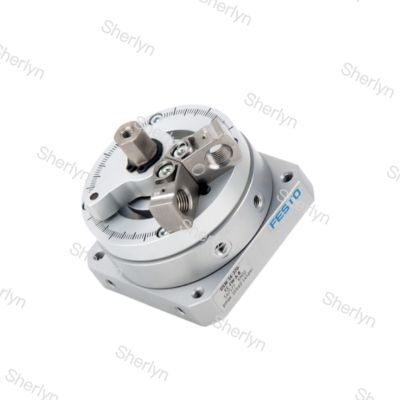

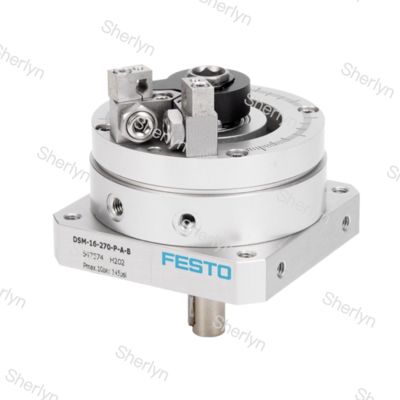

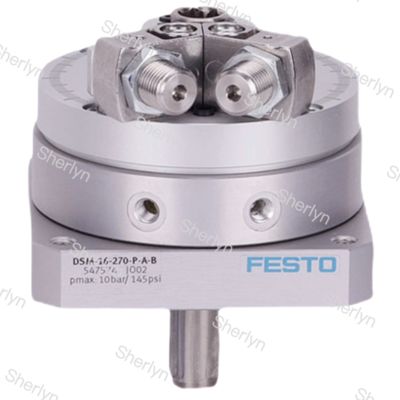

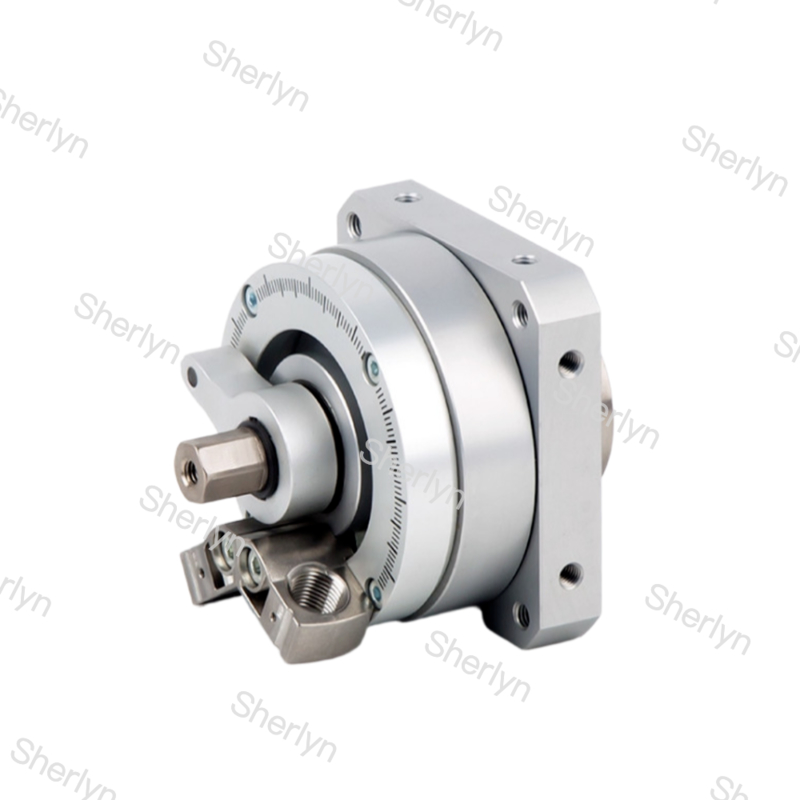

The Core Advantages of DSM Series Cylinders
When it comes to the DSM series cylinders, several key advantages set them apart:
- Flexible Swing Angle and High Precision: The DSM series offers a swing angle that can be continuously adjusted up to 270°. Thanks to the fixed metal stopper design, it ensures high-precision terminal position positioning, guaranteeing the accuracy of repeated movements.
Moreover, the cylinders have:
- Compact Structure and High Torque Output: By adopting a rotating blade structure, compressed air energy is directly converted into swinging motion, resulting in a compact and lightweight design. Some models, like the DSM-T, feature a double force blade design that can double the torque output, reaching up to 80 Nm.
Additionally, the DSM series boasts:
- Diverse Buffering and Sensing Options: These cylinders offer elastic buffering pads and adjustable buffering, with basic models equipped with elastic buffering rings/plates. Users can opt for a powerful hydraulic buffer to absorb impacts from high moment of inertia. The series also supports proximity switch sensing position detection and certain models come with built-in magnetic rings for easy sensor installation.
Besides, the DSM series presents:
- Rich Derivative Models and High-Performance Bearings: With various derivative models available, like the DSM-HD equipped with heavy-duty bearings to withstand higher axial and radial forces. The DSM-I model integrates a rotatable potentiometer, enabling the construction of a complete servo pneumatic positioning system.
Lastly, the DSM series offers:
- Wide Adaptability to Working Conditions: The cylinders operate effectively under a wide range of working pressures, such as 2-10 bar or 0.35-0.8 MPa (varies by model), ensuring stable performance across different pressure environments. Its design focuses on reliability, incorporating new chamber seals and rotating blades to achieve excellent synchronicity within pressures ranging from 1.5 to 10 bar.
Applications:
General Factory Automation: The DSM series is widely used in the field of factory automation across various industries. Its compact structure and flexible installation method make it easy to integrate into devices with limited space.
Material handling and assembly: In grasping and assembly technology, DSM cylinders can be used for rotating, flipping, positioning, and transferring workpieces.
Mining Machinery and Special Environments: The DSM series is also used in mining machinery and pneumatic tools. Some models have obtained ATEX certification and can be used in potentially explosive environments. Its design (such as some models not mainly using copper zinc nickel metal) is also suitable for industries with special material requirements such as lithium battery production facilities.
High precision positioning system: Through the DSM-I series integrated potentiometer, combined with CPX-CMAX axis controller and proportional directional control valve VPWP, it can be extended into a high-precision servo pneumatic positioning system to achieve complex motion control.
- Size25
- Cushioning angle1.2 deg
- Rotation angle adjustment range0 deg ... 270 deg
- Swivel angle0 deg ... 270 deg
- Permissible stop radius≥21 mm
- CushioningElastic cushioning rings/plates at both ends
- Mounting positionoptional
- Fine adjustment-6 deg
- Mode of operationDouble-acting
