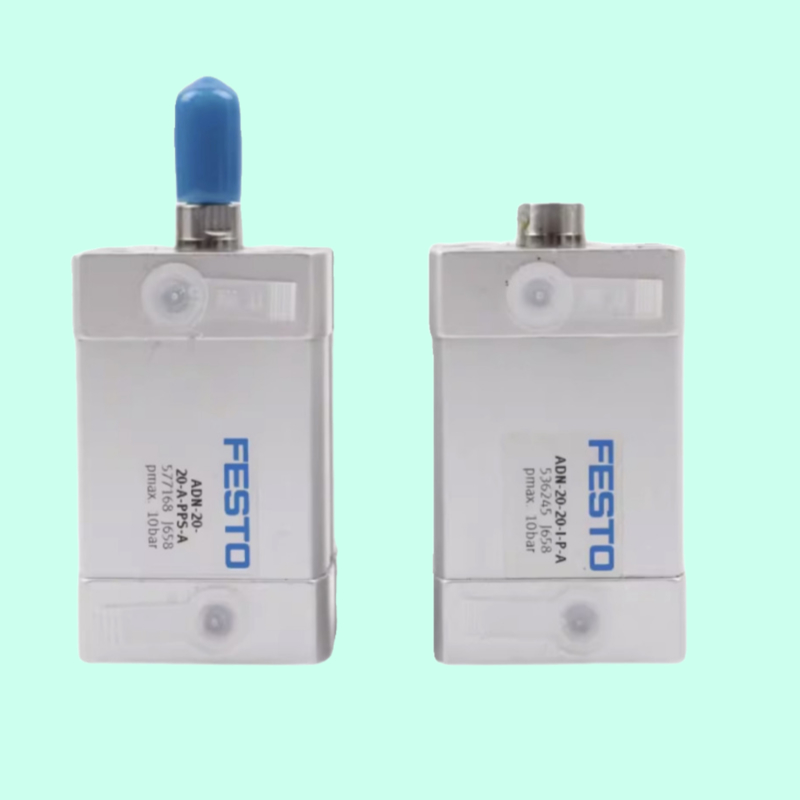

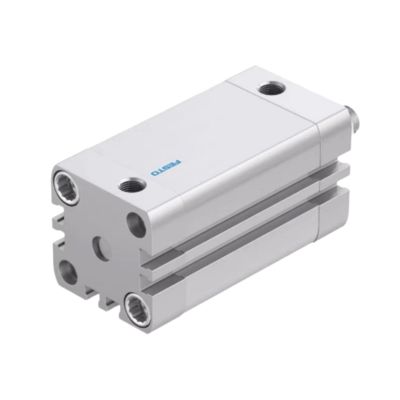

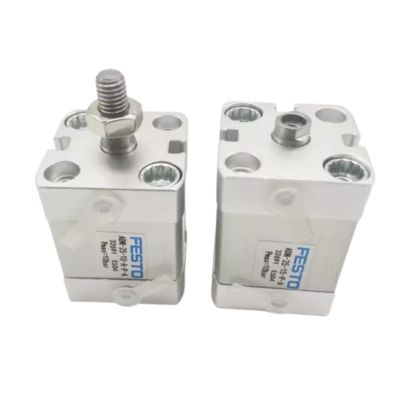

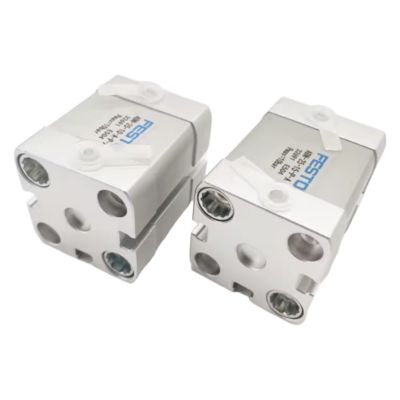

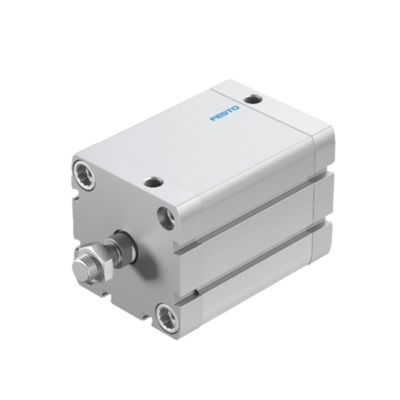

FESTO Cylinder AND Series Compact Cylinder ADN-25-25-A-P-A

Product Description:

Compact Structure and Space Saving: The ADN series is a compact cylinder that complies with the ISO 21287 standard. Compared with similar standard cylinders that comply with ISO 15552, its installation space can be reduced by up to 50%, and its structure is very compact, which helps to miniaturize the equipment.

High Performance and Long Lifespan: The cylinder integrates a buffering device to absorb residual energy and has excellent buffering characteristics and extremely low friction coefficient, which helps to extend its service life.

Easy Installation and Position Sensing: The cylinder is easy to install, with complete installation accessories, and can be used for almost any installation form. The magnetic piston design facilitates non-contact position sensing through proximity switches.

Modular Design and Rich Derivative Models: The ADN series provides extremely rich derivative models that users can configure according to their personalized needs. For example, the piston rod has internal or external threads to choose from. In addition, there are models of production facilities specifically designed for lithium-ion battery manufacturing, whose materials contain no or very little copper, zinc, and nickel (content ≤ 1%), meeting special production process requirements.

Applications:

Thanks to the above characteristics, the FESTO ADN series cylinders perform well in the following scenarios:

Space limited automation equipment: Especially suitable for installation in small but high-performance environments, such as electronic assembly, small material handling, precision testing equipment, etc.

Lithium ion battery production line: This series is recommended as a production system for lithium-ion battery manufacturing, and its dedicated model can avoid the risk of pollution caused by materials such as copper, zinc, and nickel in battery production.

In the field of general industrial automation: With its high reliability and flexibility, the ADN series cylinders are widely used in industries such as automotive manufacturing, packaging, printing, food and beverage. On automated production lines, they are commonly used for processes such as material handling, sorting, assembly, and packaging.

Technical Data

• Stroke25 mm
• Piston diameter25 mm
• Piston rod threadM8
• CushioningElastic cushioning rings/pads at both ends
• Mounting positionAny
• Conforms to standardISO 21287
• Piston rod endExternal thread
• Position sensingFor proximity sensor

Support and Services:

Our company is dedicated to providing top-notch technical support and services for our Piston Pneumatic Cylinder product. Our team of experts is available to assist you with any questions or issues you may encounter.

Our services include installation guidance, troubleshooting assistance, maintenance tips, and product training. We are committed to ensuring that our customers have a smooth and efficient experience with our Piston Pneumatic Cylinder product.

Packing and Shipping:

Product: Piston Pneumatic Cylinder

Description: The Piston Pneumatic Cylinder is a high-quality, durable cylinder designed for use in various pneumatic applications. It is made from premium materials to ensure long-lasting performance and reliability.

Packaging: The Piston Pneumatic Cylinder is carefully packaged in a sturdy cardboard box to protect it from any damage during shipping. The cylinder is securely placed inside the box with ample cushioning to prevent any movement.

Shipping: We use a reliable shipping service to ensure that your Piston Pneumatic Cylinder reaches you safely and on time. The package is sealed securely and labeled with your address for easy identification.
