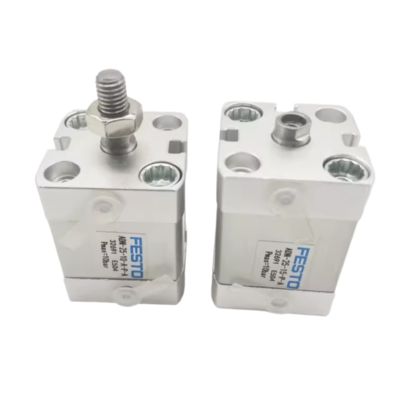

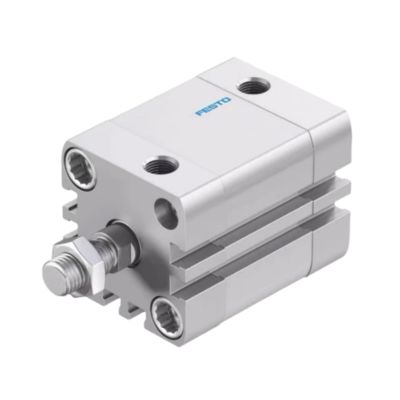

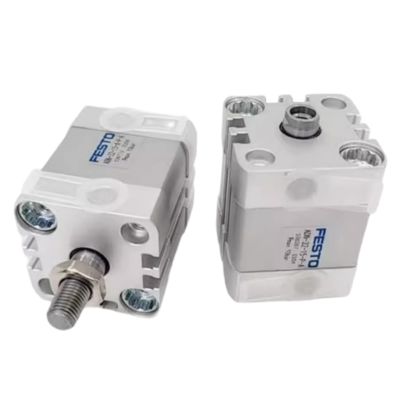

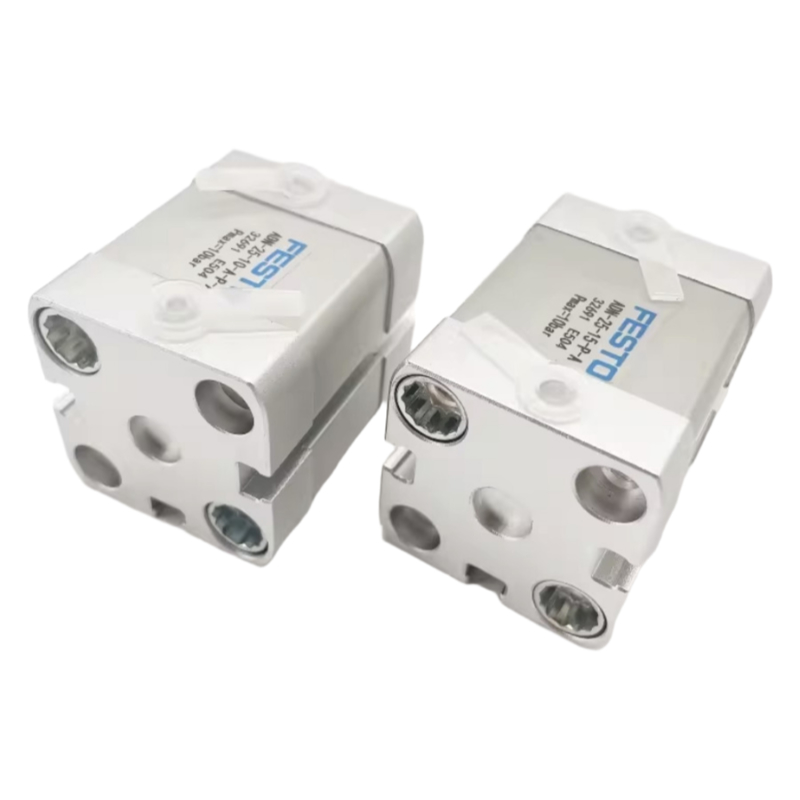

ADN-25-10-A-P-A FESTO Cylinder Double-acting

Product Description:

The key benefits of ADN series cylinders are multifaceted:

Compact Structure and Space Saving: The ADN series is a compact cylinder that adheres to the ISO 21287 standard. In comparison to similar ISO 15552-compliant cylinders, it can reduce installation space by up to 50%. Its condensed structure aids in equipment miniaturization.

High Performance and Long Lifespan: These cylinders include a buffered device to absorb excess energy. They boast exceptional buffering characteristics and an extremely low friction coefficient, leading to prolonged service life.

Easy Installation and Position Sensing: Installation is straightforward with the inclusion of all necessary accessories. The magnetic piston design enables non-contact position sensing through proximity switches.

Modular Design and Rich Derivative Models: The ADN series offers an array of derivative models that cater to varied user requirements. For instance, piston rods come in options of internal or external threads. Specific models are tailored for lithium-ion battery production facilities, with minimal copper, zinc, and nickel content (<1%) to meet specialized manufacturing needs.

Applications:

Thanks to the above characteristics, the FESTO ADN series cylinders perform well in the following scenarios:

Space limited automation equipment: Especially suitable for installation in small but high-performance environments, such as electronic assembly, small material handling, precision testing equipment, etc.

Lithium ion battery production line: This series is recommended as a production system for lithium-ion battery manufacturing, and its dedicated model can avoid the risk of pollution caused by materials such as copper, zinc, and nickel in battery production.

In the field of general industrial automation: With its high reliability and flexibility, the ADN series cylinders are widely used in industries such as automotive manufacturing, packaging, printing, food and beverage. On automated production lines, they are commonly used for processes such as material handling, sorting, assembly, and packaging.

Technical Data

• Stroke10 mm
• Piston diameter25 mm
• Piston rod threadM8
• CushioningElastic cushioning rings/pads at both ends
• Mounting positionAny
• Conforms to standardISO 21287

Support and Services:

Our Product Technical Support and Services for the Piston Pneumatic Cylinder include:

- Installation assistance

- Troubleshooting guidance

- Maintenance recommendations

- Repair services

- Product training

Packing and Shipping:

Product Name: Piston Pneumatic Cylinder

Description: High-quality piston pneumatic cylinder suitable for a wide range of industrial applications.

Package Contents: - 1 Piston Pneumatic Cylinder - Instruction Manual

Package Dimensions: 12in x 6in x 6in

Shipping Method: Standard Shipping

Estimated Delivery Time: 5-7 business days
