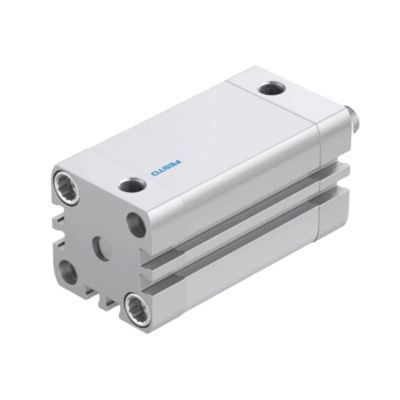

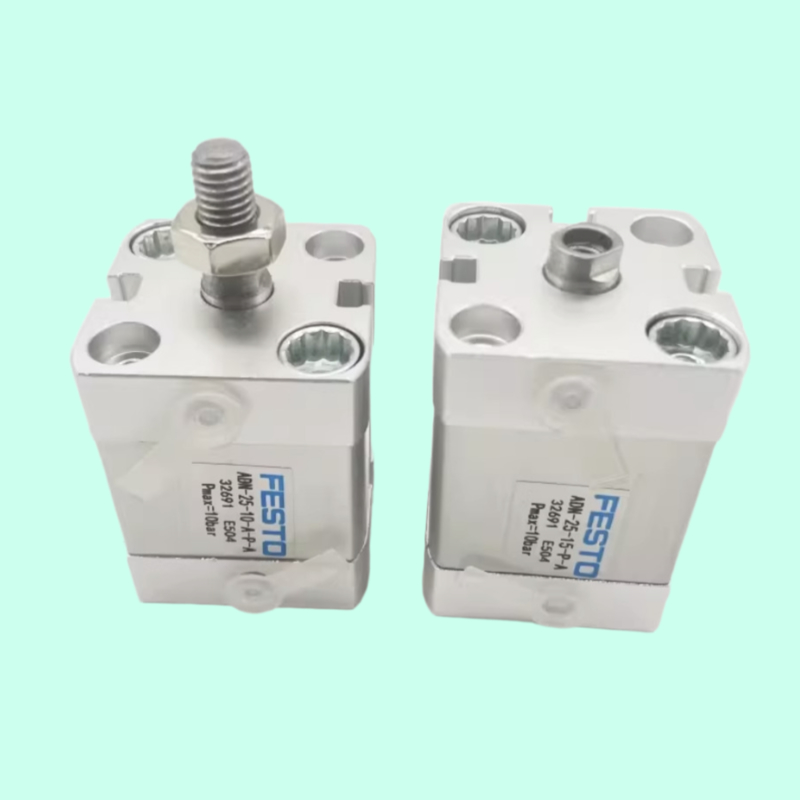

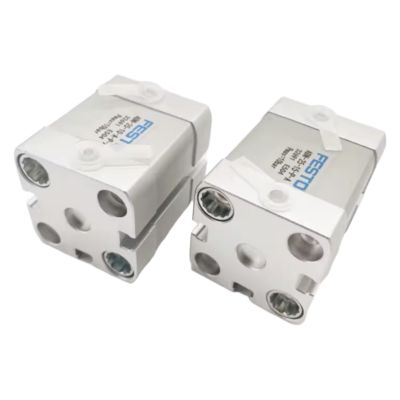

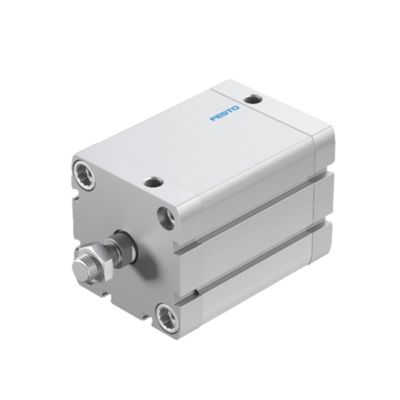

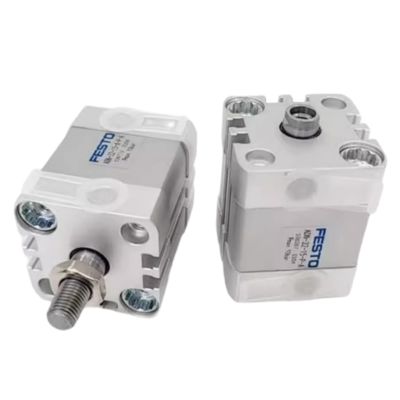

Product Description:
Advantages of ADN Series Cylinders
The core advantages of ADN series cylinders are mainly reflected in the following aspects:
- Compact structure and space saving: The ADN series is a compact cylinder that complies with the ISO 21287 standard. Compared with similar standard cylinders that comply with ISO 15552, its installation space can be reduced by up to 50%, and its structure is very compact, which helps to miniaturize the equipment.
- High performance and long lifespan: The cylinder integrates a buffering device to absorb residual energy and has excellent buffering characteristics and extremely low friction coefficient, which helps to extend its service life.
- Easy installation and position sensing: The cylinder is easy to install, with complete installation accessories, and can be used for almost any installation form. The magnetic piston design facilitates non-contact position sensing through proximity switches.
- Modular design and rich derivative models: The ADN series provides extremely rich derivative models that users can configure according to their personalized needs. For example, the piston rod has internal or external threads to choose from. In addition, there are models of production facilities specifically designed for lithium-ion battery manufacturing, whose materials contain no or very little copper, zinc, and nickel (content ≤ 1%), meeting special production process requirements.
Applications:
The FESTO ADN series cylinders excel in various scenarios due to their unique characteristics:
1. Space limited automation equipment: These cylinders are ideal for small yet high-performance environments, including electronic assembly, small material handling, and precision testing equipment.
2. Lithium ion battery production line: The ADN series is highly recommended for lithium-ion battery manufacturing systems. Its dedicated model helps prevent pollution risks associated with materials like copper, zinc, and nickel in battery production.
3. General industrial automation: The ADN cylinders are renowned for their reliability and flexibility, making them popular in industries such as automotive manufacturing, packaging, printing, and food and beverage. They are commonly deployed on automated production lines for tasks like material handling, sorting, assembly, and packaging.
- Stroke5 mm
- Piston diameter25 mm
- Piston rod threadM8
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Conforms to standardISO 21287
- Piston rod endExternal thread
Support and Services:
Our Product Technical Support team is available to assist you with any questions or issues you may have regarding our Piston Pneumatic Cylinder product. Whether you need help with installation, troubleshooting, or maintenance, our knowledgeable team is here to provide you with the support you need.
In addition to technical support, we also offer a range of services for our Piston Pneumatic Cylinder product. These services may include training programs, customized solutions, and on-site assistance to ensure that you get the most out of your product.
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Description: High-quality piston pneumatic cylinder suitable for various industrial applications.
Package Includes: - 1 x Piston Pneumatic Cylinder - Instruction Manual
Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery Time: 5-7 business days
