Product Description:

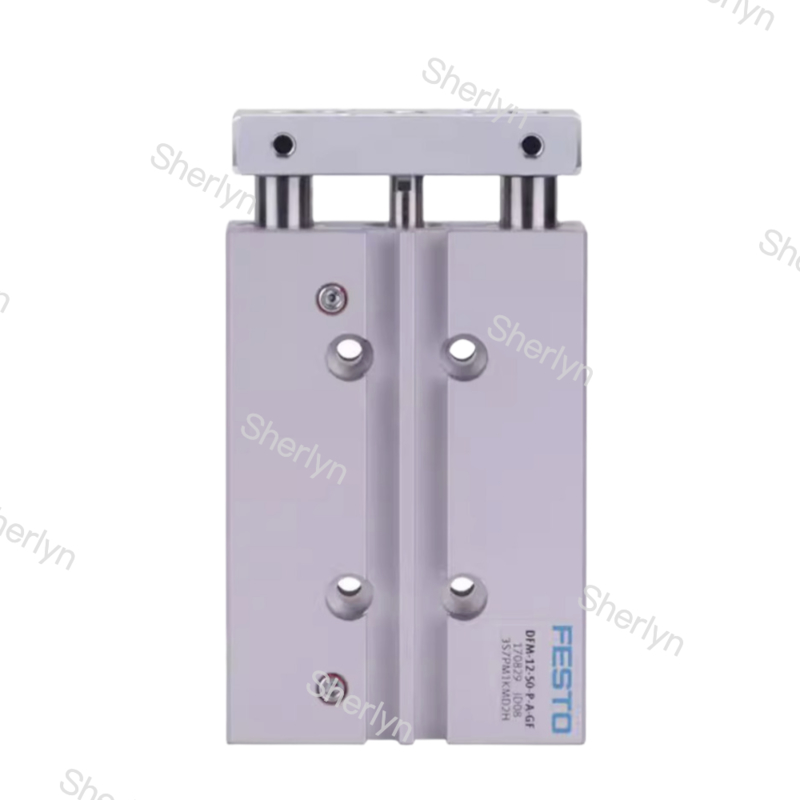

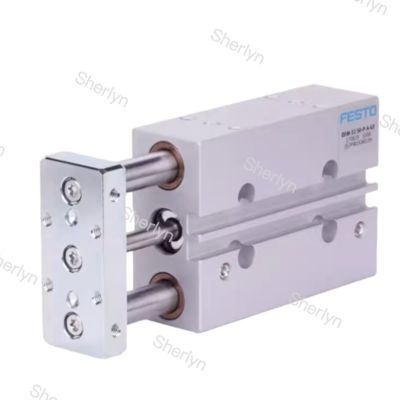

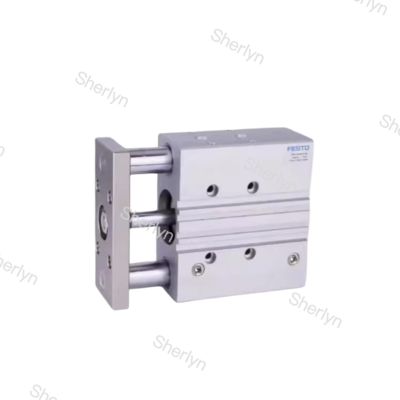

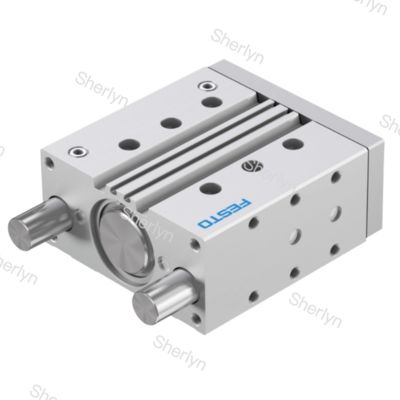

The core advantage of DFM series cylinders
The core advantage of DFM series cylinders lies in their sturdy integrated structure and excellent resistance to eccentric loads.
Integrated Compact Design
The DFM series integrates the driver and guide device into the same housing. This compact design significantly reduces space requirements, making the cylinder structure very compact and effectively reducing assembly time.
High rigidity and torque resistance
Thanks to the design of large diameter guide rods and multiple sliding bearings (usually four), or optional circulating ball bearing guides, this cylinder has high rigidity.
Buffer and noise reduction design
The cylinder is usually equipped with elastic buffer pads (synthetic rubber buffers) at both ends, which can effectively absorb impact energy, reduce operating noise, and extend the service life of the cylinder.
Flexible installation and position sensing
The DFM series offers multiple installation options, such as through holes or using female threads for installation, providing high design flexibility. The air source port is located at the top and side of the cylinder for easy and flexible positioning and connection. The integrated slot on the actuator body facilitates the installation of proximity switches and enables non-contact position sensing.
Applications:
Clamping and fixing: It is very suitable as a clamping element to achieve reliable working fixation in mechanical processing, assembly production lines, and other occasions.
Lifting and Handling: Can be used for efficient and flexible transportation and lifting of heavy objects, such as in material handling systems and automated warehouses.
Stopping and blocking: It can reliably and safely stop heavy objects (such as on assembly lines), serving as a strong and elastic stopper.
General industrial automation: widely used in automation control networks, production lines, and industrial processing fields.
Specific industry applications: Used for positioning, clamping, and stopping operations in the printing industry, packaging facilities, and electronic manufacturing. Special derivative models are also applicable to production systems for lithium-ion battery manufacturing.
- Distance of centre of gravity of payload to yoke plate xs25 mm
- Stroke10 mm
- Piston diameter12 mm
- Drive unit operating modeYoke
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- GuideRecirculating ball bearing guide
- Structural designGuide
Support and Services:
Our company provides comprehensive Product Technical Support and Services for our Piston Pneumatic Cylinder product. Our team of experts is dedicated to assisting you with any technical inquiries, troubleshooting, installation guidance, and maintenance tips to ensure optimal performance of the product.
Packing and Shipping:
Product Packaging:
This Piston Pneumatic Cylinder is carefully packaged to ensure its safety during transportation. It is securely wrapped in bubble wrap and placed in a sturdy cardboard box to prevent any damage.
Shipping:
We offer fast and reliable shipping for the Piston Pneumatic Cylinder product. Orders are processed promptly and shipped using trusted carriers to ensure timely delivery to your doorstep.
