Product Description:

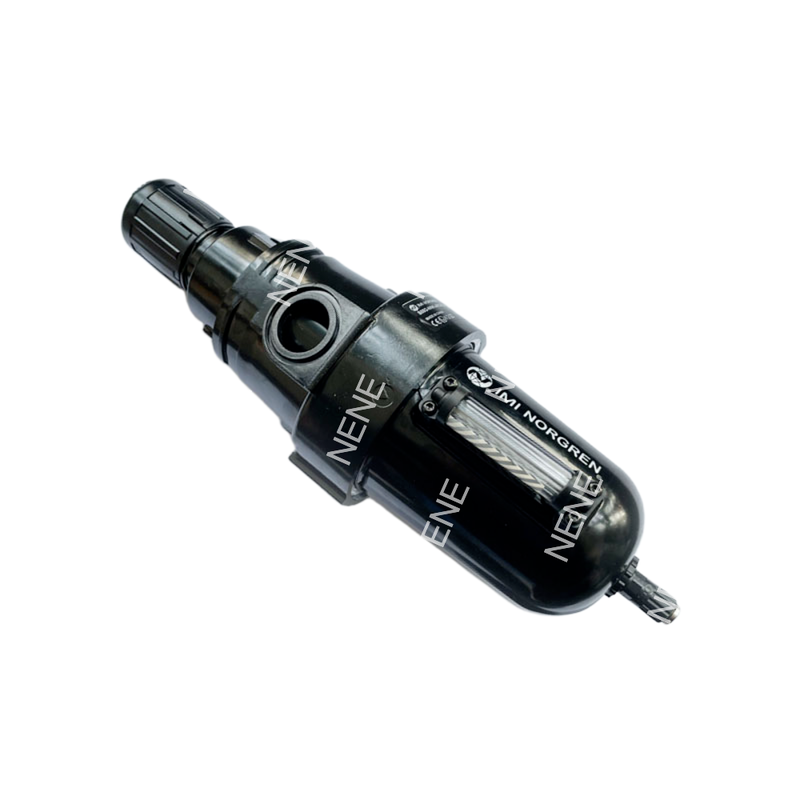

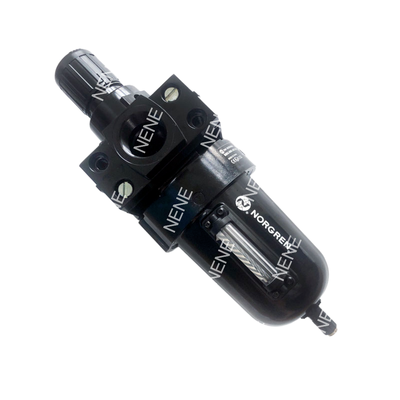

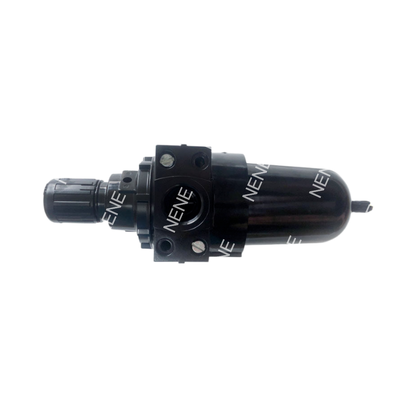

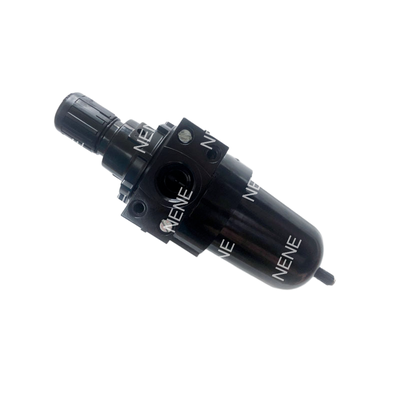

The Norgren B68G Series is a top-tier Filter Regulator, featured within the Olympian Plus™ product line. It is crafted to provide both effective filtration and accurate pressure control within a single, compact device.
Specifically designed to meet the rigorous demands of industrial settings, this series excels at removing water, oil mist, and particulate contaminants from compressed air systems. With a standard filtration rating of 40μm, it ensures clean airflow while maintaining a consistent and dependable output pressure.
Its integrated design not only conserves valuable space but also reduces the number of potential leakage points, thereby improving the overall reliability of the pneumatic system. Constructed from durable aluminum alloy, the B68G Series offers excellent regulation performance and versatile configuration options.
As a flagship product from Norgren, a company under IMI plc, the B68G Series enjoys a strong reputation globally. It is widely trusted for use in automated manufacturing, process machinery, and various industrial equipment, making it a reliable solution for demanding applications.
Features:
Integrated Design
This unit combines both a filter and a regulator into a single integrated system. By doing so, it saves valuable space, reduces the number of installation components required, and minimizes potential leak points. This integration ultimately results in a more reliable and efficient compressed air system.
Efficient Coalescing Filtration
Equipped with a large-area 40μm sintered plastic filter element, this device effectively removes water aerosols, oil mist, and solid particles from the compressed air stream. This ensures cleaner air output and protects downstream equipment from contamination.
Accurate & Stable Pressure Regulation
The pressure regulation is handled by a diaphragm-operated balanced valve design, which provides precise control over the output pressure. It delivers a fast response and maintains stable output even when there are fluctuations in inlet pressure or varying flow demands.
Robust & Durable Construction
Constructed from high-quality aluminum alloy, including the main body, bonnet, and bowl, this unit is designed for strength and longevity. Its durable build allows it to withstand the harsh conditions often found in industrial environments.
User-Friendly Operation
The adjustment knob features a non-rising design with a snap-action lock mechanism. This ensures that the preset pressure remains securely maintained and prevents accidental adjustments or tampering during operation.
Clear Maintenance Indication
For easy and safe monitoring, the metal bowl is fitted with a heat-resistant Pyrex sight glass. This allows users to visually check the condensate level at a glance without the need for disassembly.
Flexible Configuration
The unit offers a variety of configurable options to suit specific application requirements. These include choices between manual or automatic drains, alternative pressure ranges, a finer 5μm filter element, and a non-relief (no-bleed) version for specialized use cases.
Technical Parameters:
| Filter Element |
40 µm, Optional 5 µm |
| Pressure Range |
0.4 ... 8 Bar |
| Drain |
Manual or Automatic |
| Port Size |
3/4", 1", 1 1/4" or 1 1/2" |
| Maximum Operating Pressure |
17 Bar |
| Medium |
Compressed Air |
Applications:
The B68G Series stands out as an excellent solution for delivering clean and stable air supply across a diverse array of industrial applications. Its reliable performance makes it suitable for various sectors, ensuring operational efficiency and consistency.
Key applications include factory automation and pneumatic systems, where precise air control is essential. Additionally, the series is well-suited for packaging machinery, supporting the smooth functioning of packaging processes. Automotive manufacturing and assembly lines also benefit from the dependable air quality provided by the B68G Series.
Moreover, this series is ideal for food and beverage processing equipment, maintaining hygiene and safety standards by supplying uncontaminated air. It is also widely applied in general industrial machinery, catering to broad operational needs with stability and reliability.
Important Notes
- This product is specifically designed to operate with compressed air only.
- In environments where ambient temperatures drop below +2°C (+35°F), it is crucial to use adequately dried compressed air to avoid ice formation inside the bowl.
- Installation must be carried out carefully, following the flow direction indicated by the markings to ensure proper operation.
- Choose the model that best fits your operational needs by considering factors such as flow capacity, pressure range, and the required level of filtration.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by filtering, regulating, and lubricating compressed air efficiently.
For technical support, please refer to the product manual for installation guidelines, maintenance procedures, and troubleshooting tips. Proper installation is crucial to avoid air leaks and ensure accurate pressure regulation.
Regular maintenance is recommended to maintain product efficiency. This includes periodic draining of the filter bowl to remove accumulated water and contaminants, checking and refilling the lubricator with the appropriate oil, and inspecting seals and connections for wear or damage.
If you encounter any operational issues, verify that the air supply is clean and dry, and that pressure settings are within the specified range. Avoid using incompatible lubricants or exceeding the maximum pressure rating to prevent damage.
Replacement parts such as filter elements, seals, and lubricator reservoirs are available to extend the service life of your FRL unit. Always use genuine parts to ensure compatibility and performance.
Our technical support team is available to assist with product selection, installation advice, and troubleshooting to help you maximize the reliability and efficiency of your pneumatic systems.
