Product Description:

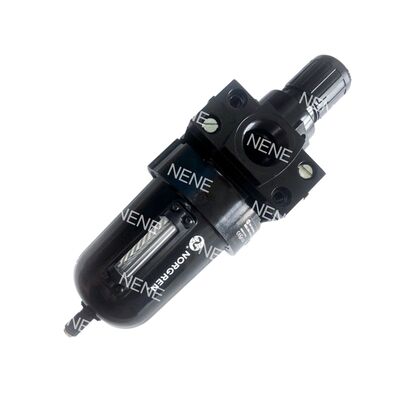

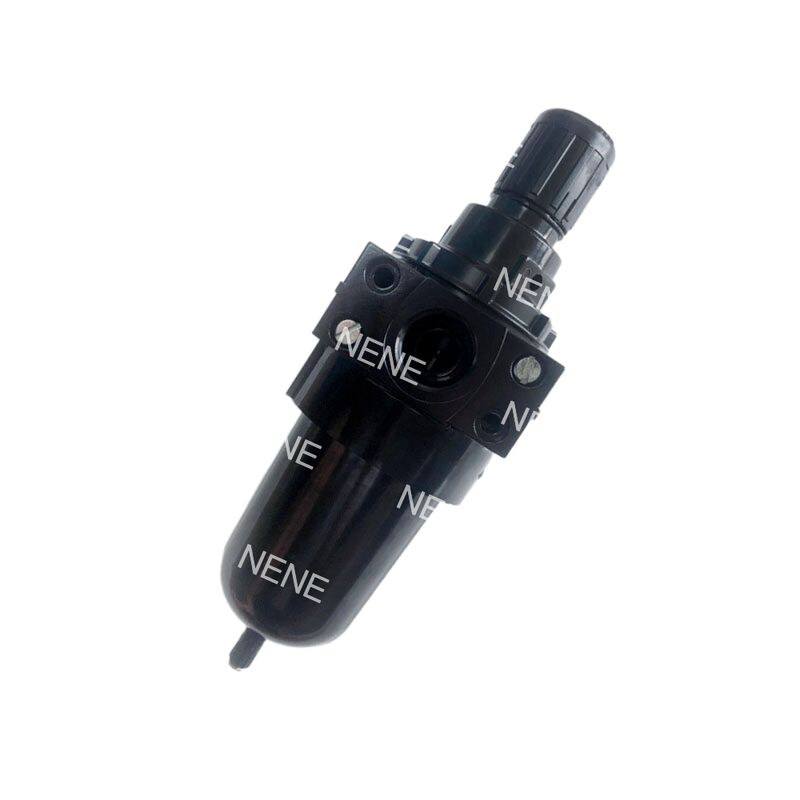

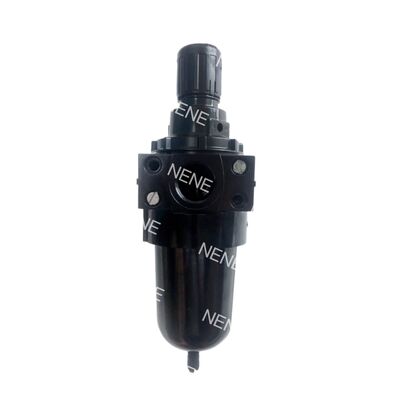

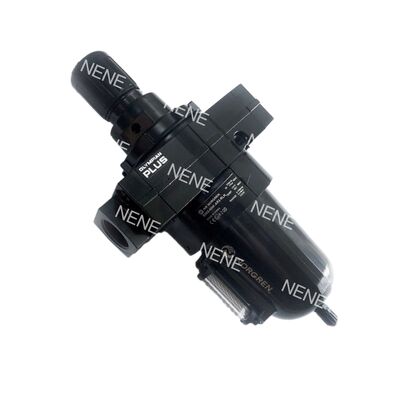

The Norgren B68G Series represents a high-performance Filter Regulator within the Olympian Plus™ product range. It is specifically designed to provide both effective filtration and accurate pressure regulation, all within a single, compact device. This innovative unit is built to meet the rigorous demands of industrial settings.
Capable of efficiently removing contaminants such as water, oil mist, and particulate matter with a standard filtration rating of 40μm, the B68G Series ensures that compressed air systems remain clean and functional. At the same time, it maintains a stable and reliable output pressure, which is crucial for optimal system performance.
Its integrated configuration helps conserve valuable space and reduces the number of potential leak points, thereby significantly improving the overall reliability of the system. As a flagship product by Norgren, a company under IMI plc, this series is widely recognized for its durable aluminum alloy construction, superior regulation performance, and versatile configuration possibilities.
Thanks to these qualities, the Norgren B68G Series has become a preferred choice for applications in automated manufacturing, process machinery, and various industrial equipment across the globe.
Features:
The integrated design combines both a filter and regulator within a single unit. This approach saves valuable space, reduces the number of installation components, and minimizes potential leak points, leading to a more reliable and efficient system overall.
Featuring a large 40μm sintered plastic filter element, the coalescing filtration effectively eliminates water aerosols, oil mist, and solid particles from the compressed air stream. This ensures cleaner air quality for downstream equipment and processes.
Pressure regulation is both accurate and stable, thanks to a diaphragm-operated balanced valve design. This setup provides precise control over pressure with a rapid response time, maintaining a consistent output even when there are fluctuations in inlet pressure or varying flow demands.
Constructed from aluminum alloy, the main body, bonnet, and bowl offer robust durability and strength. This makes the unit well suited to withstand harsh industrial environments while delivering long service life.
User-friendly operation is ensured through a non-rising adjustment knob that includes a snap-action lock mechanism. This feature securely holds the preset pressure and helps prevent accidental adjustments during use.
For maintenance convenience, the metal bowl is equipped with a heat-resistant Pyrex sight glass. This clear window allows for easy visual monitoring of the condensate level, facilitating timely maintenance interventions.
The unit also supports flexible configuration options to cater to diverse application requirements. Available choices include manual or automatic drains, alternative pressure ranges, a finer 5μm filter element, and a non-relief (no-bleed) version.
Technical Parameters:
| Pressure Range |
0.4 ... 8 Bar |
| Port Size |
3/4", 1", 1 1/4", or 1 1/2" |
| Medium |
Compressed Air |
| Drain |
Manual or Automatic |
| Maximum Operating Pressure |
17 Bar |
| Filter Element |
40 µm, Optional 5 µm |
Applications:
The B68G Series stands out as an excellent solution for delivering clean and stable air supply across a variety of industrial sectors. It is well-suited for numerous applications, such as factory automation and pneumatic systems, packaging machinery, automotive manufacturing and assembly lines, food and beverage processing equipment, as well as general industrial machinery.
Key Applications
- Factory Automation & Pneumatic Systems
- Packaging Machinery
- Automotive Manufacturing & Assembly
- Food & Beverage Processing Equipment
- General Industrial Machinery
Important Notes
This product is specifically designed to be used with compressed air only. It is critical to ensure that the compressed air supply is adequately dried, especially when ambient temperatures drop below +2°C (+35°F), to avoid any ice formation inside the bowl.
Additionally, proper installation is essential. Please follow the flow direction markings carefully to ensure optimal performance and safety.
When selecting a model from the B68G Series, consider your specific needs in terms of flow capacity, pressure range, and filtration level to choose the most appropriate option.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure the efficient operation and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For optimal performance, regular maintenance and proper installation are essential.
Technical Support:
Our technical support team is available to assist you with the installation, operation, and troubleshooting of your Pneumatic Filter Regulator Lubricator unit. We recommend reviewing the product manual carefully before installation. Ensure all connections are secure and that the unit is installed in the correct orientation. If you encounter any issues such as pressure fluctuations, air leaks, or lubrication problems, please consult the troubleshooting section of the manual or contact our technical support for guidance.
Maintenance Services:
To maintain peak performance, periodic maintenance is required. This includes:
- Regularly draining accumulated water and contaminants from the filter bowl.
- Checking and replacing filter elements as needed to prevent clogging.
- Adjusting the regulator to maintain the desired pressure output.
- Refilling the lubricator with the appropriate pneumatic oil to ensure proper lubrication of downstream components.
Replacement parts such as filter elements, bowls, and lubricator inserts are available to ensure your FRL unit continues to operate effectively. We recommend scheduling routine inspections and maintenance to avoid unexpected downtime and extend the life of your pneumatic system.
For detailed technical documentation, installation guides, and maintenance instructions, please refer to the product manual provided with your unit or available on our website.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is carefully packaged in a sturdy, high-quality cardboard box to ensure maximum protection during transit. Inside the box, the product is secured with custom foam inserts or molded plastic trays to prevent movement and damage. Each unit is wrapped in anti-static and moisture-resistant materials to maintain product integrity. The packaging also includes a user manual, warranty card, and necessary installation accessories, all neatly organized for easy access.
Shipping: We offer reliable and prompt shipping services for the Pneumatic Filter Regulator Lubricator. The product is shipped via trusted courier partners with tracking available for all orders. Standard and expedited shipping options are available to meet customer needs. All shipments are handled with care to ensure the product arrives safely and on time. International shipping is also supported, with appropriate customs documentation provided to facilitate smooth delivery.
