Product Description:

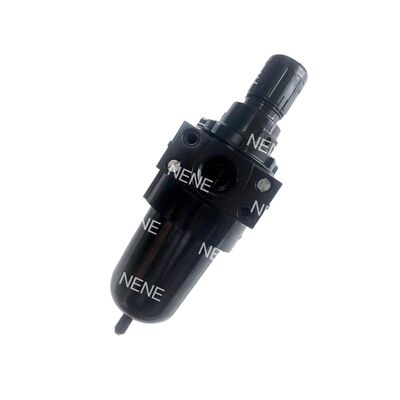

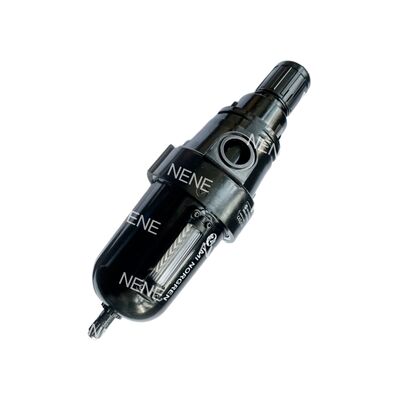

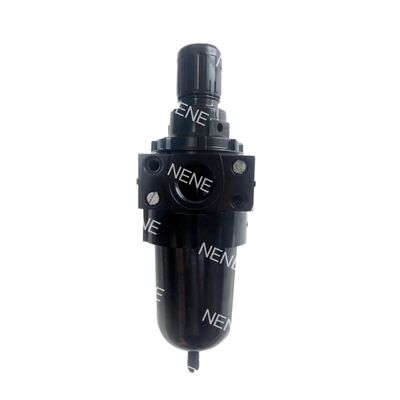

The Norgren B68G Series represents a high-performance Filter Regulator, featured within the Olympian Plus™ product line. This device is specifically designed to combine efficient filtration with accurate pressure regulation, all housed within a single, compact unit.
Built to withstand challenging industrial conditions, the B68G Series effectively eliminates water, oil mist, and particulate contaminants from compressed air systems. It offers a standard filtration rating of 40μm, ensuring clean and reliable air supply while maintaining a consistent and stable output pressure.
Its integrated design not only conserves valuable installation space but also reduces the number of potential leak points, thereby improving the overall reliability of the system. This thoughtful engineering makes it an essential component for various industrial applications.
As a flagship offering from Norgren, a division of IMI plc, the B68G Series is distinguished by its rugged aluminum alloy construction, superior regulation performance, and versatile configuration possibilities. These attributes have established it as a dependable solution widely used in automated manufacturing, process machinery, and equipment across the globe.
Features:
Integrated Design
This product seamlessly combines a filter and regulator into a single unit. By doing so, it saves valuable space, minimizes the number of installation components, and reduces potential points of leakage. The result is a more reliable and efficient system overall.
Efficient Coalescing Filtration
Equipped with a large-area 40μm sintered plastic filter element, the device effectively eliminates water aerosols, oil mist, and solid contaminants from the compressed air stream, ensuring cleaner and safer operation.
Accurate & Stable Pressure Regulation
The unit employs a diaphragm-operated balanced valve design which provides precise pressure control. This design allows for a rapid response to changes and maintains consistent output pressure regardless of fluctuations in inlet pressure or varying flow demands.
Robust & Durable Construction
Constructed with an aluminum alloy main body, bonnet, and bowl, the device offers exceptional strength and durability. It is built to withstand harsh industrial environments while delivering long-term reliable service.
User-Friendly Operation
Featuring a non-rising adjustment knob with an integrated snap-action lock, the product ensures that the preset pressure remains securely maintained. This design prevents accidental changes, providing peace of mind during operation.
Clear Maintenance Indication

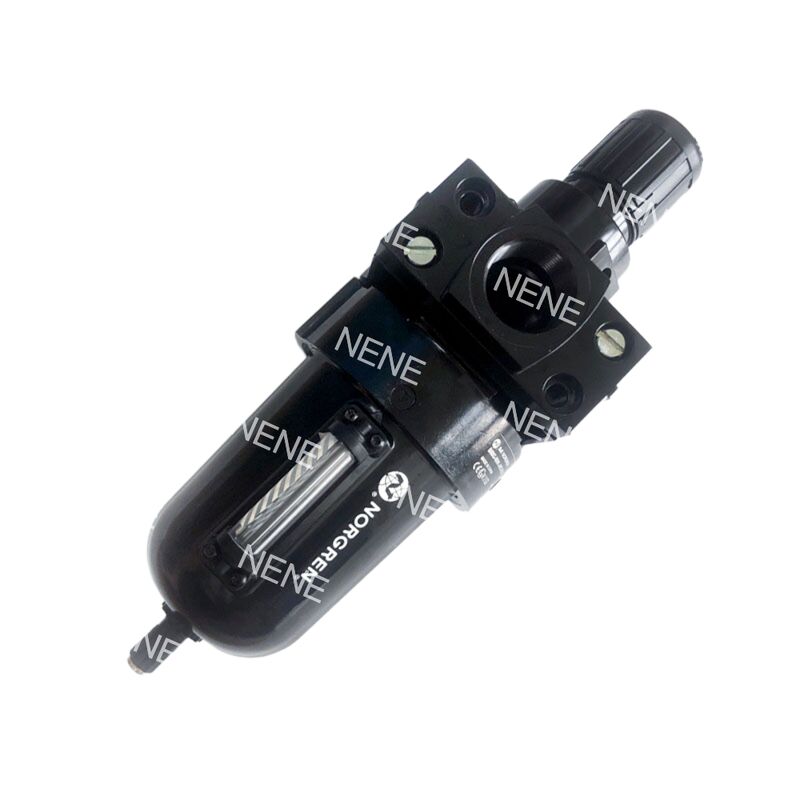

The metal bowl includes a heat-resistant Pyrex sight glass that allows for straightforward visual monitoring of condensate levels. This facilitates timely maintenance and helps avoid unexpected downtime.
Flexible Configuration
To accommodate various application requirements, the product offers multiple configuration options. These include manual or automatic drain choices, alternative pressure ranges, a finer 5μm filter element, and a non-relief (no-bleed) version, providing adaptability for specific needs.
Technical Parameters:
| Port Size |
3/4", 1", 1 1/4" Or 1 1/2" |
| Pressure Range |
0.4 ... 8 Bar |
| Drain |
Manual Or Automatic |
| Filter Element |
40 µm, Optional 5 µm |
| Maximum Operating Pressure |
17 Bar |
| Medium |
Compressed Air |
Applications:
B68G Series Overview
The B68G Series offers an excellent solution for delivering clean and stable air supply across a variety of industrial sectors. Its versatility makes it suitable for numerous applications where reliable pneumatic performance is essential.
Common uses of the B68G Series include factory automation and pneumatic systems, packaging machinery, automotive manufacturing and assembly lines, food and beverage processing equipment, as well as general industrial machinery. This broad applicability ensures that the series meets the demands of diverse operational environments.
Important Considerations
Please note that the B68G Series is specifically engineered for use with compressed air only. It is crucial to maintain the correct operating conditions to ensure optimal performance and longevity of the equipment.
In situations where ambient temperatures drop below +2°C (+35°F), it is imperative that the compressed air is adequately dried to avoid ice formation within the bowl, which could compromise the system's functionality.
Proper installation is essential; always follow the flow direction markings carefully to guarantee correct setup. Additionally, selecting the right model should be based on your particular needs concerning flow capacity, pressure ranges, and filtration levels to achieve the best results.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by filtering contaminants, regulating air pressure, and lubricating moving components. For technical support, please refer to the user manual provided with the product which includes detailed installation, operation, and maintenance instructions.
Ensure that the filter element is regularly inspected and replaced as needed to maintain air quality and system efficiency. The regulator should be adjusted according to the specific pressure requirements of your application, and the lubricator must be filled with the recommended oil type to provide proper lubrication.
If you encounter any issues with the FRL unit, verify that all connections are secure and free from leaks, and that the unit is installed in accordance with the recommended guidelines. Routine maintenance is crucial; clean the filter bowl and check for any signs of wear or damage.
For additional support, technical documentation, or to request replacement parts, please consult our product support website or technical service team who can provide expert assistance tailored to your application needs.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, high-quality cardboard box to prevent damage during transit. Inside, the unit is cushioned with protective foam inserts to ensure stability and reduce impact. All components, including fittings and installation instructions, are neatly organized and sealed in plastic bags to maintain cleanliness and integrity.
Shipping: The product is shipped via reliable courier services with tracking options available for customer convenience. Each package is labeled with handling instructions such as “Fragile” and “This Side Up” to ensure careful transportation. Shipping options include standard and expedited delivery, with estimated delivery times provided at the point of purchase. International shipping is available with appropriate customs documentation included.
