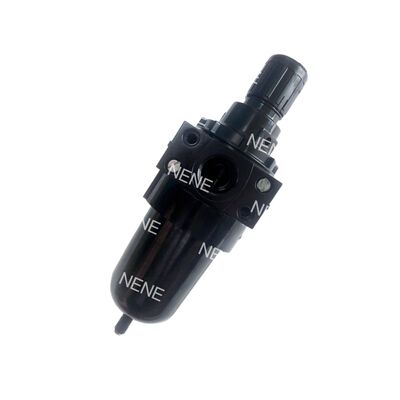

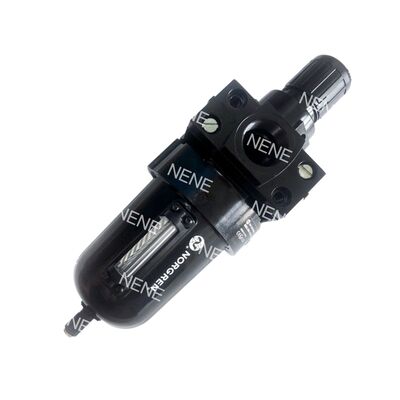

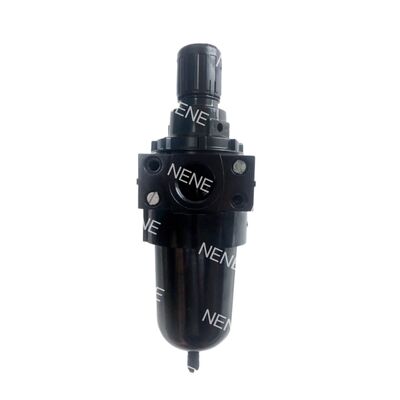

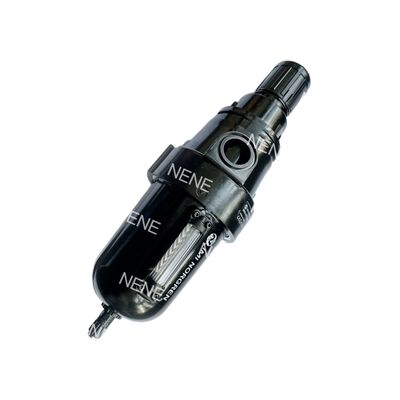

Product Description:
The Norgren B68G Series represents a high-performance Filter Regulator from the Olympian Plus™ range, crafted to provide efficient filtration alongside precise pressure control within a single compact device. This innovative unit is engineered to meet the rigorous demands of industrial applications.
Designed to purify compressed air systems, the B68G effectively eliminates water, oil mist, and particulate contaminants, boasting a standard filtration rating of 40μm. At the same time, it maintains a consistent and dependable output pressure, ensuring optimal system performance.
The integrated design of the B68G Series not only conserves space but also reduces the number of potential leak points, which helps improve the overall reliability of the system. Its sturdy aluminum alloy construction further enhances durability and longevity in challenging environments.
As a flagship product from Norgren, a division of IMI plc, the B68G Series is well-regarded for its excellent regulation capabilities and adaptability. Its versatile configuration options make it a preferred solution for automated manufacturing processes, process machinery, and various equipment applications globally.
Features:
Integrated Design
This unit combines both a filter and a regulator into a single compact device. By integrating these components, it saves valuable space, minimizes the number of installation parts required, and reduces potential leak points, resulting in a more reliable and efficient system.
Efficient Coalescing Filtration
Equipped with a large-area 40μm sintered plastic filter element, this device effectively removes water aerosols, oil mist, and solid particles from the compressed air stream. This filtration ensures cleaner air and improved performance of downstream equipment.
Accurate & Stable Pressure Regulation
Featuring a diaphragm-operated balanced valve design, the regulator provides precise control of pressure. It responds quickly and maintains a consistent output even when there are fluctuations in inlet pressure or varying flow demands, ensuring steady operational conditions.
Robust & Durable Construction
The main body, bonnet, and bowl are constructed from aluminum alloy, delivering exceptional strength and durability. This robust build is designed to withstand harsh industrial environments and guarantees a long service life.
User-Friendly Operation
The adjustment knob is designed as a non-rising type with a snap-action lock feature. This lock securely holds the preset pressure setting in place, preventing accidental changes and simplifying operation for users.
Clear Maintenance Indication
The metal bowl includes a heat-resistant Pyrex sight glass, allowing for easy visual monitoring of condensate levels. This feature helps operators perform timely maintenance and ensures the system remains in optimal condition.
Flexible Configuration
This product offers various configuration options to suit different application requirements. Options include manual or automatic drain systems, alternative pressure ranges, a finer 5μm filter element, and a non-relief (no-bleed) version for specialized needs.
Technical Parameters:
| Pressure Range |
0.4 ... 8 Bar |
| Filter Element |
40 µm, Optional 5 µm |
| Drain |
Manual or Automatic |
| Port Size |
3/4", 1", 1 1/4" or 1 1/2" |
| Medium |
Compressed Air |
| Maximum Operating Pressure |
17 Bar |
Applications:
The B68G Series offers an excellent solution for delivering clean and stable air in various industrial environments. Its design makes it particularly suitable for multiple applications such as factory automation, pneumatic systems, and packaging machinery.
Additionally, the B68G Series is widely used in automotive manufacturing and assembly processes. It also supports food and beverage processing equipment, ensuring reliable performance in these critical areas. Furthermore, it can be integrated into general industrial machinery for enhanced air supply management.
Important Notes
Please note that this product is specifically intended for use with compressed air only. In situations where ambient temperatures drop below +2°C (+35°F), it is essential to use adequately dried compressed air to prevent ice formation within the bowl.
To guarantee proper functioning, always follow the installation instructions carefully, paying attention to the flow direction markings. Moreover, selecting the correct model is crucial—consider your particular needs regarding flow capacity, pressure range, and filtration level when making your choice.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply.
For technical support, please ensure that the FRL is installed according to the manufacturer's guidelines, including proper orientation, correct air pressure settings, and appropriate filter maintenance schedules.
Regular maintenance is crucial for the efficient operation of the FRL. This includes periodic draining of accumulated water and contaminants from the filter bowl, checking and adjusting the regulator pressure, and refilling the lubricator with the recommended type and quantity of oil.
If you experience issues such as pressure fluctuations, insufficient lubrication, or air leakage, inspect the unit for blockages, damaged seals, or incorrect installation. Replacement parts and repair kits are available to restore your FRL to optimal condition.
Our technical team provides comprehensive support to assist with troubleshooting, installation advice, and maintenance best practices to maximize the performance and reliability of your pneumatic equipment.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is carefully packaged to ensure maximum protection during transit. It is securely enclosed in a robust cardboard box with custom foam inserts to prevent movement and absorb shocks. The packaging includes a clear label with product details, handling instructions, and safety warnings to facilitate easy identification and safe handling.
Shipping: We offer reliable shipping options to deliver the Pneumatic Filter Regulator Lubricator promptly and safely to your location. Products are shipped via trusted carriers with tracking available for all orders. Depending on your location, standard and expedited shipping services are available. All shipments are handled with care to maintain product integrity, and proper documentation is provided for smooth customs clearance when applicable.
