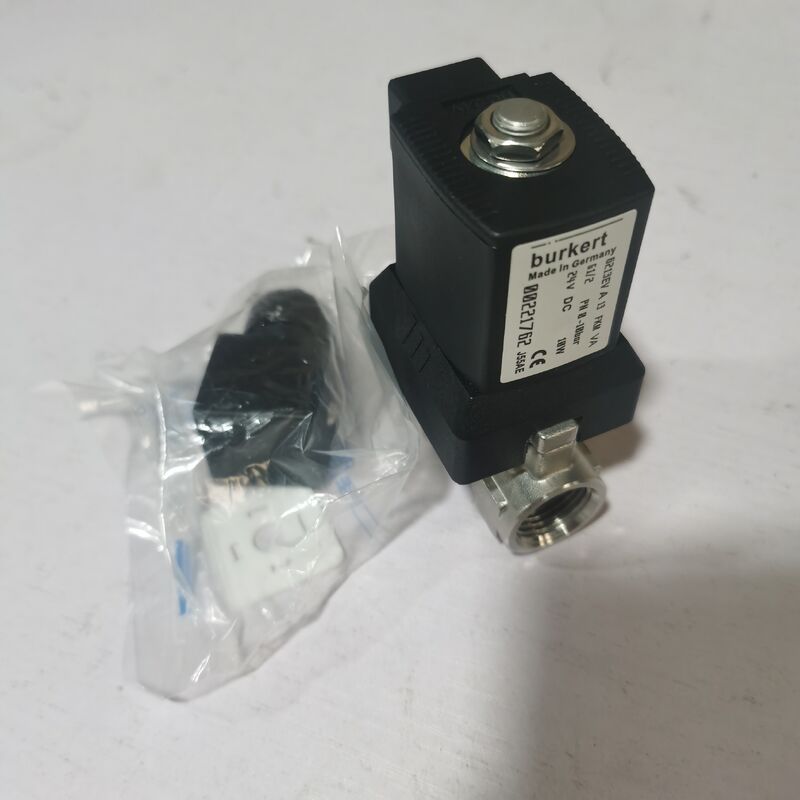

Name: Burket 6213 series G1/2 solenoid valve 00221763 00221765 00221762
Brand: YW DKE TRADING COMPANY
SKU: 00221762
Availability: InStock

Home Products Burkert Solenoid Valve

Burket 6213 series G1/2 solenoid valve 00221763 00221765 00221762

Product Details:

Brand Name:	BURKERT
Certification:	CE
Model Number:	00221762

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 Pieces/1Month

Contact Now

Detailed Product Description

Seal:	NBR	Orifice:	DN 10…DN 50
Application:	Fluid Control In Industrial Automation, Water Treatment, Chemical Processing	Orifice Size:	DN 10…DN 50
Temperature Range:	-10℃~100℃	Product Type:	6213
Highlight:	Burkert 6213 solenoid valve G1/2 , Burkert solenoid valve with warranty , G1/2 solenoid valve 00221763

Product Description:

Parameter Category	Specification Details
Basic Information	Model: 6213; Item No.: 00221762; Type: 2/2-way servo-assisted diaphragm valve (Normally Closed, P/NC)
Size & Connection	Interface: G1/2 female thread; Flow diameter: 13mm (DN13); Installation: Any orientation, coil upward is recommended
Pressure & Temperature	Operating pressure: 0–10.0 bar; Medium temperature: 0–120°C; Ambient temperature: -10 to +55°C
Material & Sealing	Valve body: Stainless steel 1.4408 (316L); Sealing: FKM (fluororubber); Internal parts: Stainless steel + PPS; Coil: Polyamide + epoxy resin (Class H insulation)
Electrical Parameters	Voltage: 24VDC; Protection class: IP65 (with standard cable socket); Duty cycle: 100%ED (continuous operation)
Performance & Function	Switching time: Open approx. 800–1400ms, Close approx. 100–200ms; Low-noise damping; Optional Kick and Drop energy-saving dual-coil technology
Compatible Media	Neutral gases, liquids and slightly corrosive fluids (e.g. compressed air, water, oil, solvents, etc.)

Key Features & Selection Points

Servo-assisted Design: Spring-loaded diaphragm enables normal opening without pressure difference, suitable for low-pressure working conditions.
Material Compatibility: 316L stainless steel + FKM sealing offers corrosion resistance and high temperature resistance, applicable for general industrial fluids.
Installation & Maintenance: Compact structure, high flow rate, coil can be rotated 360°, easy to maintain.
Safety & Certification: Complies with EU RoHS, ISO 9001; ATEX explosion-proof version is available on request.

Application Scenarios & Alternative Recommendations

Applicable Scenarios: On-off control of fluids in water treatment, food & beverage, pharmaceutical and chemical processes, especially suitable for working conditions requiring stable sealing and medium flow rate.
Alternative Options: For strong corrosion resistance, PTFE sealing version is replaceable; For higher pressure (up to 40bar), Model 6240 is optional; For low temperature (-40℃), EPDM sealing version is available.

Packing and Shipping:

The Burkert Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. Each valve is securely enclosed in a custom-fitted box with protective padding to prevent damage from shocks and vibrations.

Packaging materials used are durable and environmentally friendly, designed to maintain the product’s integrity while minimizing environmental impact. Clear labeling and handling instructions are included on each package to facilitate smooth logistics and proper storage.

Shipping is conducted through reliable carriers with tracking options available to provide timely updates on the delivery status. We offer various shipping methods to meet customer needs, including standard, expedited, and international shipping services.

Upon receipt, customers are advised to inspect the package for any visible signs of damage and report any issues promptly to ensure proper resolution. Burkert is committed to delivering high-quality products with excellent service to guarantee customer satisfaction.
