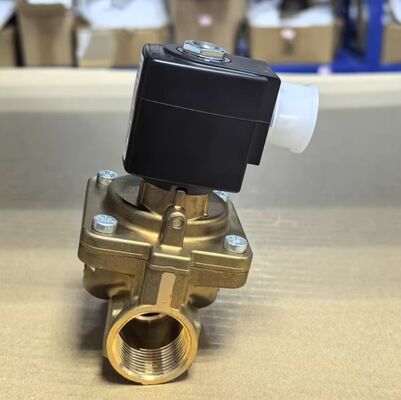

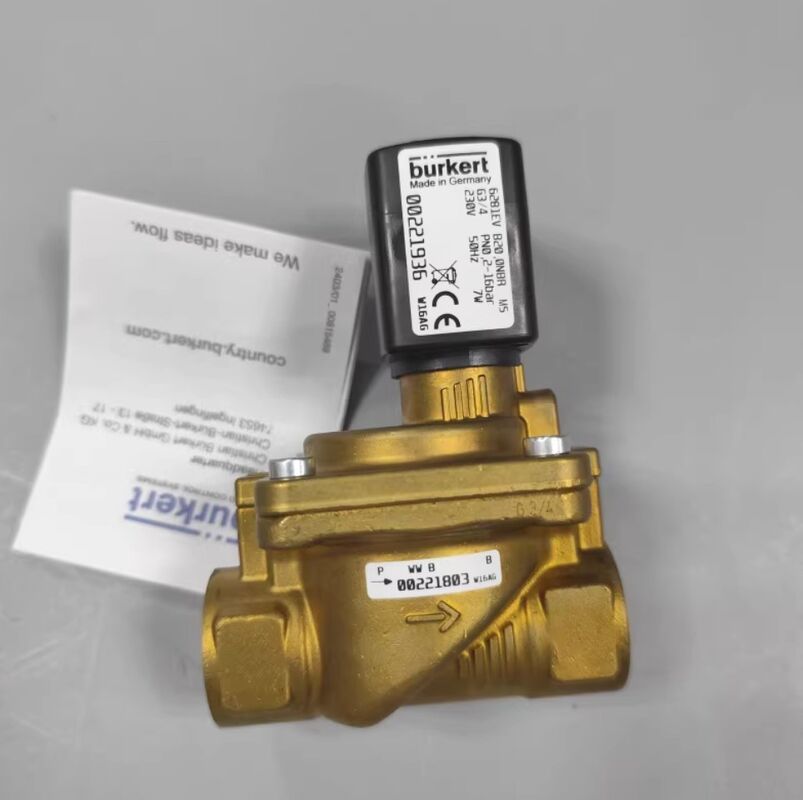

00221934 00221936 00221935 Burkert Germany 6281 Type 221936 Diaphragm Solenoid Valve G3/4

Product Description:

This valve utilizes a servo-assisted mechanism featuring a pilot isolation diaphragm combined with plunger actuation. The pilot valve operates as a rotary armature or rocker solenoid valve equipped with an isolation diaphragm, ensuring that the medium does not pass through the pilot orifice. This design offers excellent resistance to clogging.

When opening, a minimum differential pressure of 0.2 bar is necessary to actuate the main diaphragm. The pilot valve manages the pressure within the main chamber to facilitate valve opening. During closing, a damped design provides a quiet, water-hammer-free shutdown, which effectively reduces pipeline stress and noise pollution.

Additionally, the valve supports energy-saving features through an optional KD dual-coil technology. This system automatically decreases power consumption during steady-state operation after the initial actuation, making it particularly suitable for long-term continuous use.

The valve offers a wide range of material compatibility. Its body can be made from either brass or stainless steel, and it supports sealing materials such as NBR, EPDM, and FKM. This versatility allows it to be used with water, various gases, general chemicals, and in high-temperature environments.

Reliability and durability are enhanced via a centrally threaded coil that is vibration-resistant and encapsulated in epoxy resin to withstand chemical exposure. Furthermore, the pilot isolation diaphragm design minimizes the chances of clogging and leakage.

The valve also provides flexible customization options, including an optional manual override for maintenance and commissioning, KD energy-saving coils, and explosion-proof certification. These features enable the valve to perform effectively in harsh and hazardous environments.

Compliance with multiple standards is ensured, including drinking water regulations, ATEX explosion-proof certifications, and UL/CSA standards. This comprehensive compliance makes the valve suitable for use across different regions with strict regulatory requirements.

This valve is commonly utilized in municipal and industrial water treatment systems as well as drinking water supply networks. Brass models designed to meet the relevant regulations are typically applied in these scenarios.

In the food and beverage industry along with pharmaceutical liquid preparation systems, stainless steel valves combined with EPDM or FKM seals are chosen to satisfy hygiene standards.

The valve also supports transfer systems for compressed air, hydraulic oil, and various general chemicals, with material selection tailored to the specific properties of the medium.

For fluid control in hazardous areas, models certified to ATEX and IECEx standards are available to ensure safe operation.

When selecting this valve, it is essential to ensure the actual operating differential pressure is at least 0.2 bar. Insufficient differential pressure will prevent the valve from opening reliably.

Choosing medium compatibility is critical: a stainless steel body with FKM seals is recommended for strongly corrosive media, while standard brass bodies with EPDM seals are suitable for drinking water applications.

To optimize working conditions, opting for the KD dual-coil version is advantageous for continuous operation by reducing energy consumption. Explosion-proof certified models should be specified for use within hazardous environments.

Proper installation and maintenance include fitting a strainer upstream to block impurities from entering the valve. It is also important to avoid imposing pipe stress on the valve body by independently supporting the pipeline. The manual override function is intended strictly for commissioning and emergency situations and should not be used for extended forced valve opening.

Technical Parameters:

Applications:

The BURKERT Solenoid Valve, specifically the 6281 product type, is an essential component in various industrial automation applications. Known for its reliable performance and certified with CE standards, this Burkert Electromagnetic Valve is widely used for precise fluid control across multiple sectors. Its robust design includes an NBR seal and supports an orifice size ranging from DN 10 to DN 50, making it versatile for handling different flow requirements. The valve operates efficiently within a temperature range of -10℃ to 100℃, ensuring adaptability in diverse environmental conditions.

One of the primary application occasions for the Burkert Valve is in industrial automation systems, where accurate fluid control is vital for seamless operation. It is commonly employed to regulate the flow of liquids and gases in manufacturing plants, assembly lines, and automated machinery. The solenoid operated valve mechanism allows for quick and reliable switching, enhancing process efficiency and reducing downtime.

In the water treatment industry, the BURKERT Solenoid Valve plays a critical role in managing water flow and quality. It is utilized in filtration systems, chemical dosing, and wastewater management to ensure precise control and safety. The valve’s ability to handle a wide temperature range and various fluid types makes it an ideal choice for water treatment plants seeking dependable and long-lasting components.

Chemical processing is another significant scenario where the Burkert Electromagnetic Valve demonstrates exceptional performance. Its chemical resistance and secure sealing provide safe handling of aggressive fluids and corrosive substances. The valve’s adaptability to varying pressure and temperature conditions supports complex chemical reactions and processes, ensuring operational stability and safety.

With a minimum order quantity of just one piece and flexible pricing through negotiation, the BURKERT Solenoid Valve is accessible for both small-scale projects and large industrial operations. Packaging is customizable according to client requirements, typically shipped in cartons, and delivery is prompt within 1-7 workdays after payment. Payment terms are convenient, accepting T/T, Western Union, and Paypal to accommodate diverse customer preferences.

Overall, the Burkert Valve is a reliable, efficient, and versatile solenoid operated valve solution suitable for fluid control in industrial automation, water treatment, and chemical processing environments. With a supply ability of 5000 pieces per month, it ensures availability and support for various industrial demands.

Packing and Shipping:

Burkert solenoid valves are carefully packaged to ensure maximum protection during transit. Each valve is securely placed in a custom-fitted box with protective padding to prevent damage from shocks and vibrations. The packaging materials are designed to be durable and moisture-resistant, preserving the integrity of the product.

For shipping, Burkert solenoid valves are shipped using reliable carriers with tracking options available. The packaging is clearly labeled with handling instructions and product information to facilitate safe and efficient delivery. Depending on the destination, shipping options include standard, expedited, and freight services to meet customer requirements.
