Filter Compressed Air Pneumatic Cylinder with Reinforced Piston Construction Ensuring Durability in Continuous Operation

Product Description:

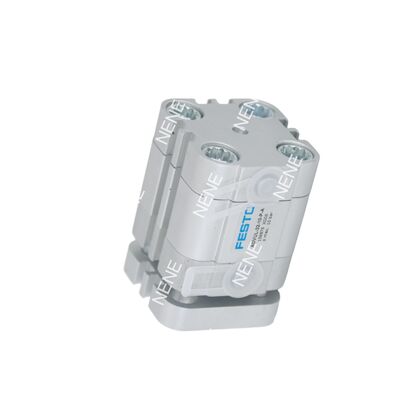

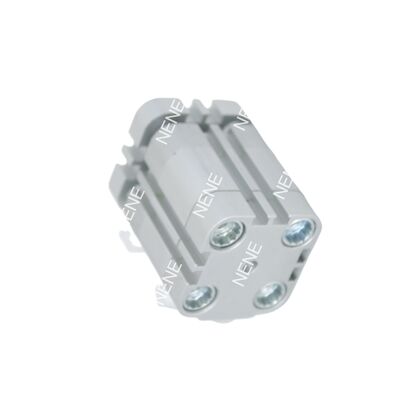

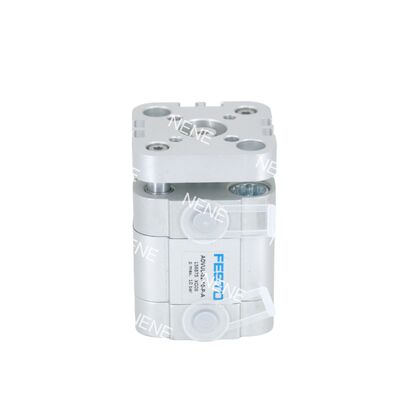

The FESTO ADVUL Series represents a compact and high-performance guided rod cylinder solution. Its unique integrated design combines the piston, guide rod, and yoke coupling plate into a single unit, which effectively eliminates piston rod torsion. This design ensures extremely precise linear motion for various applications.

Engineered specifically for automated systems that have limited installation space and demand high reliability, the ADVUL Series is ideal for such challenging environments. It is available in a broad range of bore sizes, from 12mm up to 125mm, allowing for flexibility to handle different load requirements.

Additionally, the series supports strokes of up to 400mm, making it suitable for a wide variety of applications. These features together enable the FESTO ADVUL Series to meet diverse operational needs while maintaining compactness and high performance.

Features:

Rigid Anti-Rotation Design: This product features a unique guide rod and yoke coupling construction that can endure certain lateral and eccentric loads. This design provides excellent motion rigidity and ensures repeatable positioning accuracy, making it highly reliable in demanding applications.

Highly Integrated & Compact: Engineered with space efficiency in mind, this compact unit is perfect for installation in tight or confined spaces. Its optimized design helps maximize the overall efficiency of machine layouts without compromising performance.

Easy Installation & Sensing: To accommodate diverse installation needs, multiple mounting accessory options are available for flexible adaptation. Additionally, profile grooves on the cylinder body facilitate straightforward installation of proximity sensors, such as those from the SME series. This enables non-contact position sensing, allowing for effortless integration into control systems.

Reliable & Durable: Built with a precision aluminum alloy barrel and a high-alloy stainless steel piston rod, this product also includes standard elastomeric cushioning at both ends. These features combine to ensure smooth, quiet operation and significantly extend the service life of the equipment.

Broad Operating Conditions: Designed to operate efficiently within a wide range of conditions, it supports a typical operating pressure from 1.5 to 10 bar and can function reliably in ambient temperatures ranging from -20°C to +80°C. This broad adaptability makes it suitable for most industrial environments.

Technical Parameters:

Applications:

In the field of new energy vehicle manufacturing, these technologies are extensively utilized for tasks requiring precise positioning and clamping. They play a crucial role in the assembly of battery modules, handling of various parts, as well as in welding and painting production lines.

Within the semiconductor and electronics industry, these solutions are particularly suited for delicate processes such as wafer handling, testing equipment operations, and the assembly of printed circuit boards (PCBs). Their ability to maintain high standards of cleanliness and precision makes them indispensable in these applications.

The food and packaging machinery sector benefits from these technologies by employing them for actuation and pushing actions. Their use is essential in high-speed filling, packaging, and sealing machines, ensuring efficiency and reliability in production lines.

Additionally, in general industrial automation, these components function as dependable core drives. They facilitate material handling, support machine tool loading and unloading tasks, and contribute significantly to the operation of various assembly workstations.

Support and Services:

Our Piston Pneumatic Cylinders are designed for reliable and efficient performance in a wide range of industrial applications. For technical support, please refer to the product manual for installation guidelines, maintenance procedures, and troubleshooting tips. Ensure that the cylinder is operated within the specified pressure and temperature limits to avoid damage and ensure longevity.

If you experience any issues with the Piston Pneumatic Cylinder, check for common problems such as air leaks, improper mounting, or contamination in the air supply. Regular maintenance, including lubrication and inspection of seals and rods, is recommended to maintain optimal functionality.

We offer comprehensive services including installation assistance, repair, and replacement parts. Our technical support team can provide guidance on system integration and customization to meet your specific application requirements.

For warranty information, please refer to the warranty section provided with the product documentation. Keep your purchase details and product serial number handy for any service requests.

Visit our website for FAQs, instructional videos, and downloadable resources to help you get the most out of your Piston Pneumatic Cylinder.
