Product Description:

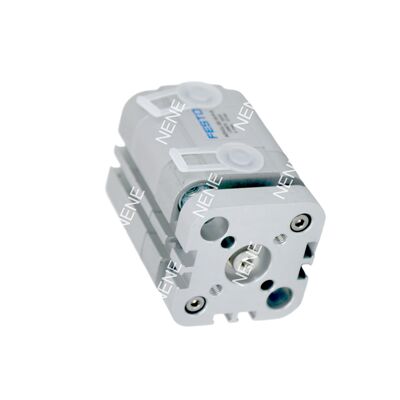

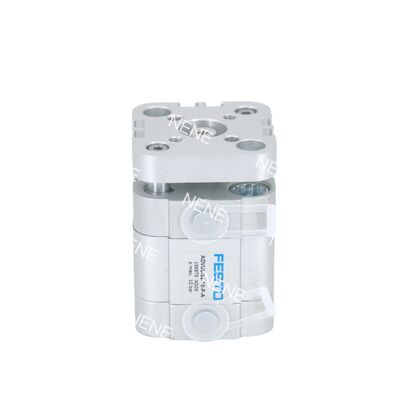

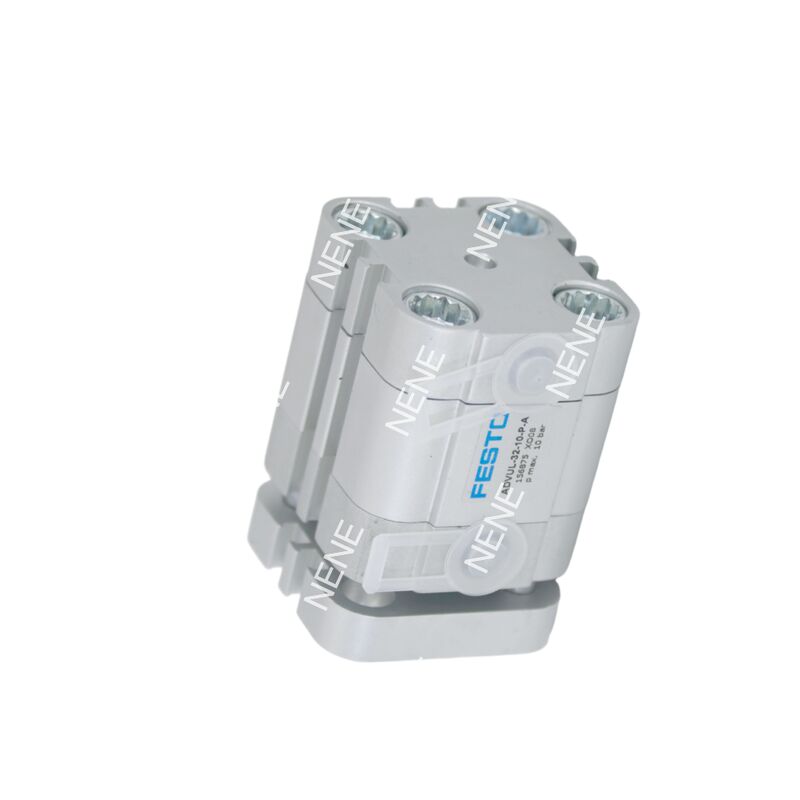

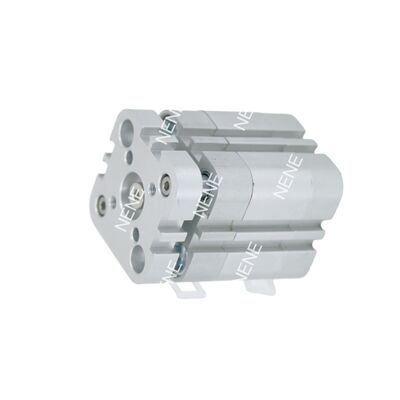

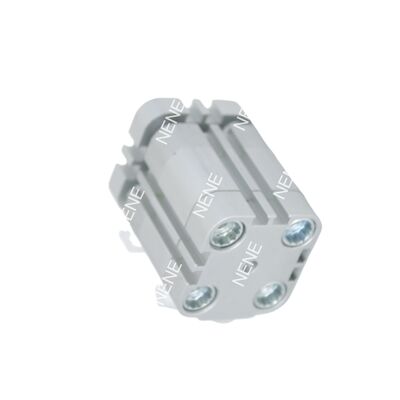

The FESTO ADVUL Series represents a compact, high-performance guided rod cylinder engineered for precision and durability. By integrating the piston, guide rod, and yoke coupling plate into a single design, it effectively eliminates piston rod torsion, ensuring exceptionally accurate linear movements.
This series is specifically developed for automated systems that require high reliability within confined spaces. Its design meets the stringent demands of such applications, providing robust and consistent performance.
With a versatile range of bore sizes spanning from 12 mm to 125 mm and stroke lengths reaching up to 400 mm, the ADVUL Series caters to diverse load capacities and spatial constraints. This flexibility makes it suitable for a variety of industrial automation tasks.
Features:
Rigid Anti-Rotation Design
The product features a distinctive guide rod and yoke coupling construction that can endure certain lateral and eccentric loads. This design ensures outstanding motion rigidity and provides consistent, repeatable positioning accuracy.
Highly Integrated & Compact
Engineered for optimized, space-saving installation, this unit is perfect for use in tight spaces. Its compact build helps maximize the efficiency of machine layouts, making it ideal for designs with limited room.
Easy Installation & Sensing
A variety of mounting accessories are offered to allow flexible adaptation to different installation needs. Additionally, profile grooves on the body of the cylinder facilitate straightforward installation of proximity sensors, such as the SME series. This feature enables non-contact position sensing, allowing smooth integration into control systems.
Reliable & Durable
Constructed with a precision aluminum alloy barrel and a high-alloy stainless steel piston rod, the product incorporates standard elastomeric cushioning at both ends. These elements contribute to smooth and quiet operation while significantly extending the service life.
Broad Operating Conditions
Designed to operate efficiently within a typical pressure range of 1.5 to 10 bar and an ambient temperature range spanning from -20°C to +80°C, this product is well-suited for a wide variety of industrial environments.
Technical Parameters:
|
Working Medium
|
Filter Compressed Air, Lubricated Or Unlubricated
|
|
Mounting Position
|
Optional
|
|
Design
|
Piston, Piston Rod
|
|
Cushioning
|
Elastic Cushioning Rings/plates At Both Ends
|
|
Ambient Temperature
|
-20 ... 80°C
|
|
Type of Mounting
|
Either, With Through-hole, With Accessories
|
Applications:
The manufacturing of new energy vehicles heavily relies on advanced technologies for precise positioning and clamping. These technologies are extensively applied in various stages such as battery module assembly, part handling, welding, and painting lines, ensuring efficiency and accuracy throughout the production process.
In the semiconductor and electronics industry, the demand for cleanliness and precision is paramount. Equipment used for wafer handling, testing, and PCB assembly benefits greatly from solutions designed to maintain these high standards, making them ideal choices for such critical applications.
The food and packaging machinery sector requires components that can perform actuation and pushing movements effectively in fast-paced environments. These components are well-suited for use in high-speed filling, packaging, and sealing machines, contributing to the smooth operation of production lines.
For general industrial automation, reliable core drive elements play a crucial role. They are commonly employed in material handling, machine tool loading and unloading, as well as various assembly workstations, providing dependable performance across diverse industrial applications.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to provide reliable and efficient performance in various industrial automation applications. For technical support, please ensure you have the model number, specifications, and operating conditions ready for a more efficient service experience.
We offer comprehensive services including installation guidance, troubleshooting assistance, maintenance tips, and spare parts availability to ensure the longevity and optimal operation of your pneumatic cylinder.
Common issues addressed include air leakage, abnormal noise, insufficient stroke, and mounting problems. Our support team can help diagnose these issues and recommend appropriate solutions or replacement parts.
For maintenance, regular inspection of seals, rods, and cylinders is recommended to prevent wear and tear. Proper lubrication and adherence to operational guidelines will enhance the product’s service life.
We also provide customized solutions and technical documentation to assist with integration into your specific systems. Our goal is to support your operations with expert advice and prompt service.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure it arrives in perfect condition. Each cylinder is securely wrapped with protective materials to prevent damage during transit. The product is then placed in a sturdy, custom-fitted box designed to minimize movement and absorb shocks.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All packages are labeled clearly with handling instructions to ensure proper care throughout the shipping process. Whether shipping domestically or internationally, we prioritize the protection and prompt arrival of your Piston Pneumatic Cylinder.
