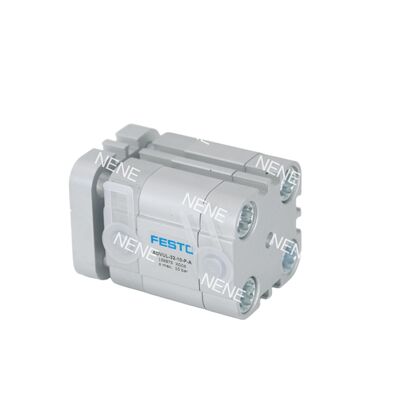

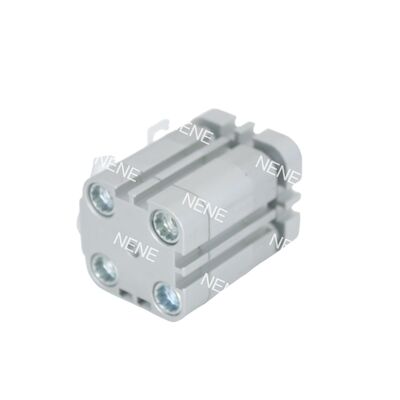

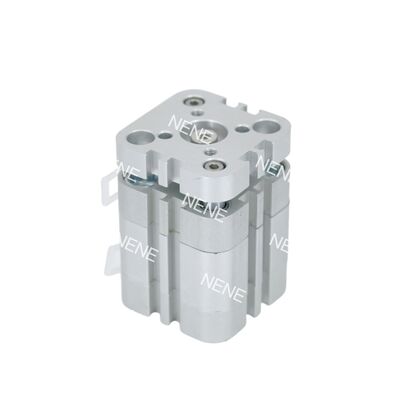

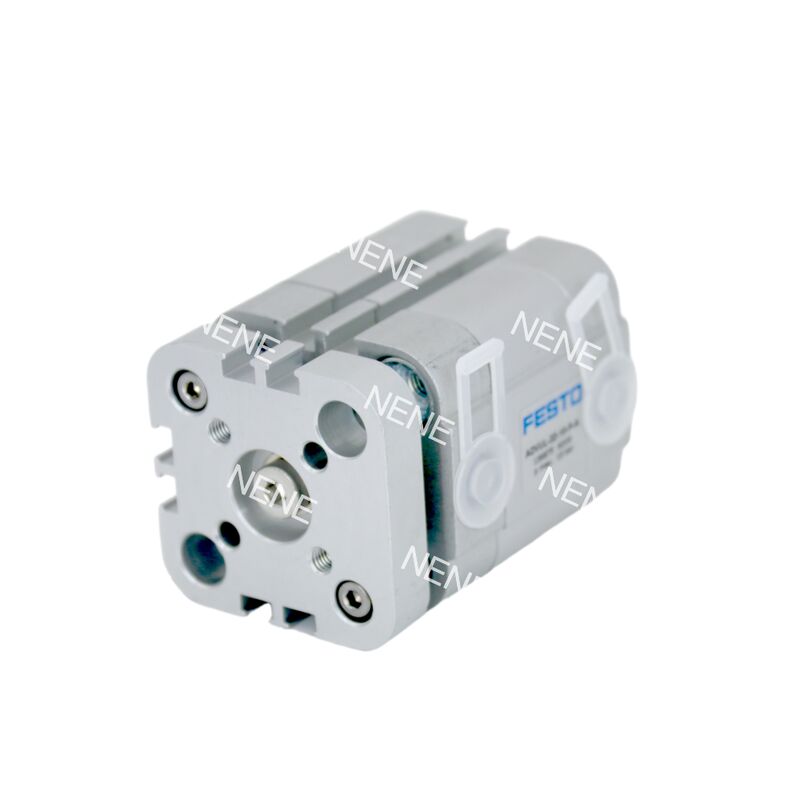

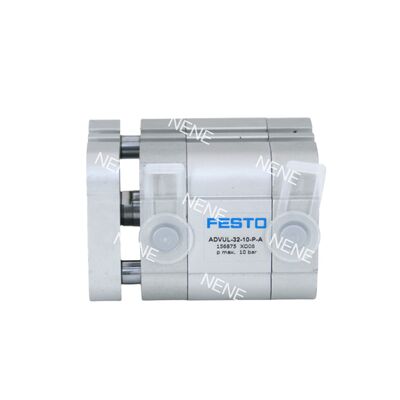

Product Description:
The FESTO ADVUL Series represents a compact yet high-performance solution in the realm of guided rod cylinders. Its unique integrated design combines the piston, guide rod, and yoke coupling plate into one unit, which effectively eliminates piston rod torsion. This feature guarantees highly accurate and reliable linear motion.
Specifically engineered for automated systems where space is limited and reliability is crucial, the ADVUL Series caters to demanding industrial applications. It provides an extensive selection of bore sizes, ranging from 12mm up to 125mm, allowing it to accommodate different operational requirements.
Furthermore, with stroke lengths available up to 400mm, this series is versatile enough to suit a variety of load capacities and space constraints. Overall, the FESTO ADVUL Series is an excellent choice for tasks that require compact design without compromising on performance and precision.
Features:
Rigid Anti-Rotation Design
This product incorporates a unique guide rod and yoke coupling structure that effectively resists lateral and eccentric forces. This design ensures superior motion rigidity and offers highly repeatable positioning accuracy, making it reliable for precise applications.
Highly Integrated & Compact
Designed with space efficiency in mind, the unit is optimized for installation in tight spaces. Its compact form factor is ideal for maximizing the efficiency of machine designs, especially where space constraints are critical.
Easy Installation & Sensing
Flexible mounting accessories are available to accommodate a variety of installation needs. Additionally, the cylinder body features profile grooves that facilitate the easy attachment of proximity sensors such as the SME series. This allows for non-contact position detection, enabling seamless integration with control systems.
Reliable & Durable
Constructed with a precision aluminum alloy barrel and a high-alloy stainless steel piston rod, this product includes standard elastomeric cushioning at both ends. These features contribute to smooth and quiet operation, while also extending the overall service life.
Broad Operating Conditions
The device is suitable for a wide range of industrial environments, with a typical operating pressure from 1.5 to 10 bar and an ambient temperature tolerance between -20°C and +80°C. This versatility ensures dependable performance under diverse conditions.
Technical Parameters:
|
Working Medium
|
Filter Compressed Air, Lubricated Or Unlubricated
|
|
Design
|
Piston, Piston Rod
|
|
Mounting Position
|
Optional
|
|
Ambient Temperature
|
-20 ... 80°C
|
|
Cushioning
|
Elastic Cushioning Rings/plates At Both Ends
|
|
Type of Mounting
|
Either, With Through-hole, With Accessories
|
Applications:
In the realm of New Energy Vehicle Manufacturing, these components play a crucial role. They are extensively utilized for tasks that require precise positioning and clamping during the assembly of battery modules. Additionally, they are integral to various operations including part handling, welding processes, and painting lines, ensuring accuracy and efficiency throughout the production stages.
When it comes to the Semiconductor and Electronics industries, these solutions are perfectly suited for delicate applications. They are commonly employed in wafer handling, as well as in testing equipment and printed circuit board (PCB) assembly. Their ability to maintain high levels of cleanliness and deliver exceptional precision makes them indispensable in these critical environments.
In Food and Packaging Machinery, such components are ideal for actuation and pushing tasks. They are designed to operate efficiently within high-speed filling, packaging, and sealing machines, facilitating smooth and reliable movements essential for maintaining production throughput and quality standards.
For General Industrial Automation, these elements function as dependable core drive components. They support a variety of automation processes including material handling, loading and unloading of machine tools, and operations at assembly workstations, contributing to streamlined workflows and enhanced productivity across diverse manufacturing sectors.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for high performance and durability in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and replacement part information to ensure optimal operation.
We offer detailed product documentation, including user manuals, specification sheets, and safety guidelines to help users understand the features and proper usage of the piston pneumatic cylinder. Our technical team is available to assist with custom configurations and to answer any technical queries related to the product.
Regular maintenance services are recommended to prolong the lifespan of the piston pneumatic cylinder. This includes routine inspection of seals, rods, and cylinders, lubrication recommendations, and advice on operating conditions to prevent wear and tear.
In the event of product issues, we support diagnostics and repair services to minimize downtime. Replacement parts and accessories are readily available to support quick and efficient repairs.
We are committed to providing high-quality technical support and services to ensure the reliable performance of our piston pneumatic cylinders, helping our customers achieve maximum productivity and safety in their operations.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped in protective materials to prevent damage from impact, moisture, and dust. The product is then placed in a sturdy, custom-designed box that fits snugly to minimize movement inside the package.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All packages are labeled clearly with handling instructions, including “Fragile” and “Handle with Care” notices to ensure proper treatment. We also provide customers with shipment details and estimated delivery times for a transparent and convenient purchasing experience.
