Product Description:

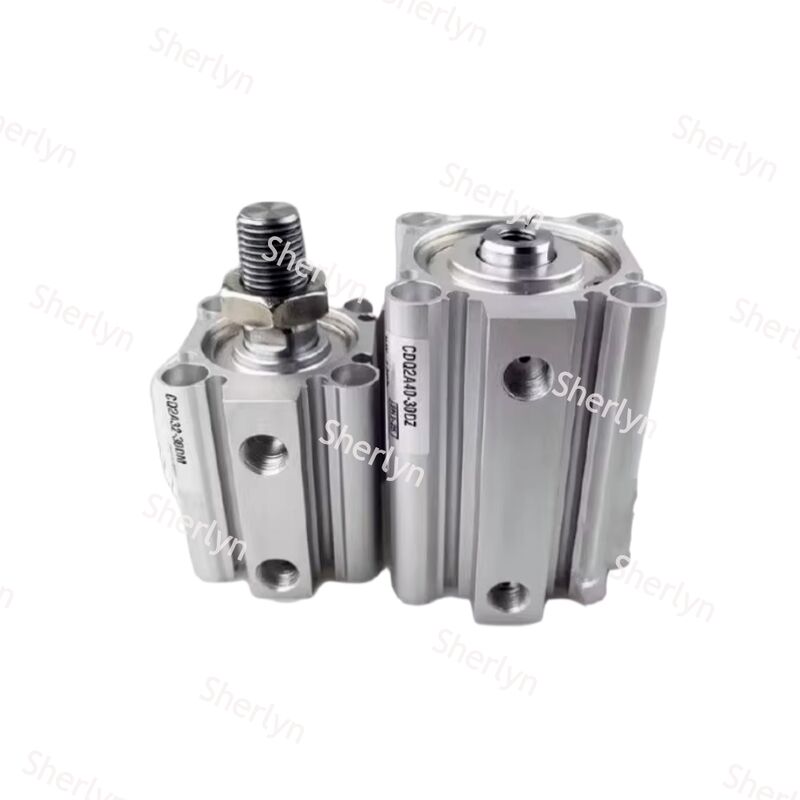

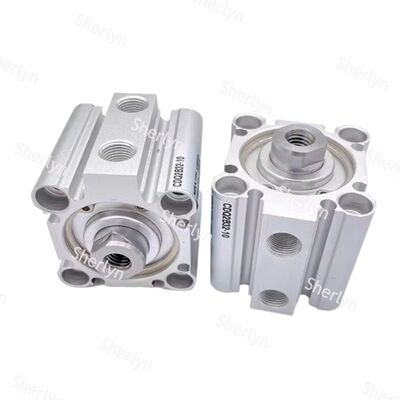

Thin, Compact & Space-Saving Design
This cylinder boasts a slim profile, making it an excellent choice for applications where space is limited. Compared to many traditional cylinders of the same bore size, its overall dimensions—particularly its width and height—are significantly reduced, ensuring a more compact footprint.
Constructed primarily from aluminum alloy, the cylinder is notably lightweight. This material choice not only decreases the total weight but also contributes to the overall goal of equipment lightweighting.
Flexible Design and Simple Installation
The cylinder body includes specially designed mounting grooves. For smaller bore sizes, there are two grooves on opposite sides, while larger bores feature grooves on all four sides. These grooves allow for embedding compact magnetic switches, such as those from the D-M9 series. Once installed, the switches sit flush with the surface, which helps save space and prevents accidental collisions.
Versatility is further enhanced by support for a basic installation type utilizing through-hole mounting. Additionally, a broad range of optional accessories—such as foot mounts and flanges—are available to accommodate diverse installation requirements.
Reliability and Maintenance Ease
Designed to function reliably under a standard operating pressure range from 0.07 MPa to 1.0 MPa, the cylinder performs well within an operating temperature span of -10°C to +70°C.
The cylinder is factory-pre-lubricated, enabling extended maintenance-free operation under standard air conditions. This feature reduces the need for frequent lubrication, thereby decreasing the overall maintenance workload.
Depending on the specific model, a variety of cushioning options are available. These range from rubber cushioning to adjustable air cushioning, providing smooth and controlled stops across different loads and speeds.
Applications:
Applications of the CDQ2B Series
The CDQ2B series is renowned for its compact size and high reliability, making it an ideal choice in automation environments where space is limited. Its versatility allows it to serve a variety of purposes across multiple industries.
Electronics & Semiconductor Manufacturing
In the realm of electronics and semiconductor production, the CDQ2B series is frequently utilized for precise tasks such as part transferring, clamping, and positioning. It plays a crucial role in processes involving circuit board handling, chip packaging, and high-accuracy inspection equipment.
Small Automation Equipment
This series is commonly employed as actuators within small automated machines, including assembly lines, packaging machinery, and robotic handling systems. Its compact design allows it to fit seamlessly into equipment where space is at a premium.
Medical Devices & Instruments
The CDQ2B series is also suitable for medical applications that demand clean and compact driving mechanisms. Typical uses include laboratory automation devices and various analyzers, where precision and cleanliness are essential.
Guidance for Selection and Usage
Key Parameters
When selecting a CDQ2B cylinder, two main parameters should be considered. First is the bore size, which directly influences the output force and commonly includes sizes such as Φ12, Φ16, and Φ20. Second is the stroke length, determining the extent of the cylinder’s travel.
Action Type
Another important factor is the type of action required. Options include double-acting cylinders, which are powered pneumatically for both extension and retraction, and single-acting cylinders, which incorporate a spring return mechanism. The choice depends on the specific operational needs.
Option Considerations
It is advisable to assess whether adjustable cushioning is necessary to accommodate variations in load and speed. Additionally, if the cylinder will be subjected to side loads, opting for a guided model, such as those in the CDQ2B/W series, can significantly enhance durability and service life.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient operation in a wide range of industrial applications. To ensure optimal performance and longevity, we provide comprehensive technical support and services.
Technical Support: Our expert team is available to assist with product selection, installation guidance, troubleshooting, and maintenance recommendations. We offer detailed product documentation, including specifications, operating instructions, and safety guidelines to help you get the most out of your pneumatic cylinder.
Maintenance Services: Regular maintenance is crucial for the sustained performance of your piston pneumatic cylinder. We offer maintenance services that include inspection, cleaning, lubrication, and replacement of worn components to prevent downtime and extend the product's service life.
Customization and Upgrades: If your application requires specific modifications or enhanced features, we provide customization services to tailor the pneumatic cylinder to your needs. Additionally, we offer upgrade options to improve performance or adapt to new operational requirements.
Warranty and Repairs: Our products come with a standard warranty that covers manufacturing defects. In case of malfunction, we provide repair services carried out by trained technicians using genuine replacement parts to restore the cylinder to its original condition.
Training and Consultation: To help your team effectively operate and maintain the pneumatic cylinders, we offer training sessions and consultation services. These programs cover best practices, safety procedures, and troubleshooting techniques.
By choosing our Piston Pneumatic Cylinder product, you gain access to a full range of support and services aimed at maximizing your investment and ensuring uninterrupted operation.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder
Each piston pneumatic cylinder is carefully packaged to ensure it arrives in perfect condition. The cylinder is first wrapped in protective foam or bubble wrap to prevent any scratches or damage during transit. It is then placed in a sturdy cardboard box, with additional padding materials used to fill any empty spaces and provide extra cushioning.
For bulk orders, multiple cylinders are individually wrapped and securely packed in larger cartons, which are reinforced with tape and corner protectors to withstand handling and shipping stresses.
All packages are clearly labeled with handling instructions such as “Fragile” and “This Side Up” to ensure proper care is taken throughout the shipping process.
We offer various shipping options including standard ground, expedited, and international shipping. Each shipment is tracked and insured to provide peace of mind and ensure timely delivery.
Upon receiving your piston pneumatic cylinder, please inspect the package for any visible damage and report any issues immediately to our customer service team for prompt resolution.
