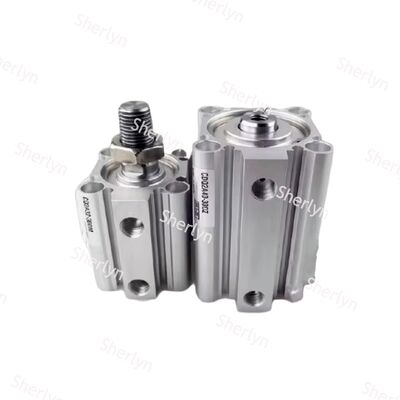

CDQ2B12-30D SMC Double Acting CDQ2 Series Cylinder

This cylinder is designed with a thin-profile structure that offers a significant advantage in terms of size. Compared to many traditional cylinders of the same bore size, its overall dimensions—particularly the width and height—are noticeably smaller. This compactness allows for more efficient use of space in various applications.

The primary components of the cylinder are manufactured from aluminum alloy, which greatly reduces the overall weight. This lightweight attribute not only facilitates easier handling and installation but also contributes positively to the goal of equipment lightweighting.

The cylinder body features dedicated mounting grooves—two on each side for smaller bore sizes and four sides for larger bores. These grooves are specifically designed to accommodate compact magnetic switches such as the D-M9 series. Once installed, the switches sit flush with the cylinder body, saving valuable space and minimizing the risk of accidental collisions.

In addition, the cylinder supports a basic through-hole mounting option and offers a broad selection of optional accessories, including foot mounts and flange mounts. This versatility ensures that the cylinder can be adapted to meet a wide variety of installation requirements.

The cylinder operates reliably within a standard pressure range of 0.07 MPa to 1.0 MPa and performs effectively across a temperature span from -10°C to +70°C. This broad operating window makes it suitable for diverse industrial environments.

Maintenance is simplified thanks to factory pre-lubrication, which allows for extended periods of operation without the need for additional lubrication under normal air conditions. This feature helps reduce maintenance efforts and downtime.

To accommodate different operational needs, the cylinder is available with various cushioning options. Depending on the model, users can select from rubber cushioning to adjustable air cushioning, providing smooth and controlled stopping performance under varying loads and speeds.

The CDQ2B series is known for its compact size and dependable performance, making it a popular choice in automation industries where space is limited. Its design allows it to fit easily into environments with strict spatial requirements without compromising functionality.

This series finds extensive applications in the electronics and semiconductor manufacturing sector. It is commonly used for tasks such as part transfer, clamping, and precise positioning during circuit board processing, chip packaging, and inspection with high accuracy.

Additionally, the CDQ2B series serves as actuators in small automation equipment. Examples include assembly machines, packaging systems, and handling manipulators, where reliable and compact motion control is essential.

In the medical field, these components are utilized in devices and instruments that demand clean and compact drives. They are ideal for laboratory automation equipment and various types of analyzers, contributing to efficient and hygienic operation.

When selecting a CDQ2B series actuator, key parameters to consider are the bore size and the stroke length. The bore size, such as Φ12, Φ16, or Φ20, influences the output force, while the stroke defines the travel distance of the actuator.

It is important to decide on the type of action required. Depending on application needs, you can choose between double-acting actuators, which are pneumatically driven in both directions, or single-acting actuators, which have a spring return mechanism.

Furthermore, take into account any special options. For instance, if adjustable cushioning is necessary to accommodate specific load and speed conditions, this should be specified. In cases where side loads are expected, opting for a guided version like the CDQ2B/W series can enhance durability and extend service life.
