Product Description:
Thin, Compact & Space-Saving Design
This product features an ultra-thin profile, making it exceptionally compact. For cylinders with the same bore size, its overall dimensions—particularly in terms of width and height—are noticeably smaller compared to many conventional cylinders. This design advantage helps maximize space efficiency in various applications.
Lightweight Construction
The main components are crafted from high-quality aluminum alloy, significantly reducing the overall weight. This material choice contributes to the lightweight nature of the equipment, facilitating easier handling and installation while enhancing operational efficiency.
Flexible Design & Easy Installation
The cylinder body is equipped with dedicated mounting grooves—two grooves on both sides for smaller bore sizes, and four grooves for larger bore sizes. These grooves are designed to embed compact magnetic switches, such as those from the D-M9 series. Once installed, the switches sit flush with the body, saving space and minimizing the risk of collisions.
Additionally, the cylinder supports basic through-hole mounting as a standard. A variety of optional accessories, including foot mounts and flanges, are also available to accommodate diverse installation requirements, making the setup process highly versatile and user-friendly.
Reliable Performance & Easy Maintenance
This cylinder is designed to operate reliably within a pressure range of 0.07 MPa to 1.0 MPa and can withstand temperatures from -10°C to +70°C. These conditions cover a wide range of industrial environments ensuring stable performance.
It comes pre-lubricated from the factory, allowing for maintenance-free operation under standard atmospheric conditions. This pre-lubrication reduces the need for frequent servicing and helps decrease overall maintenance efforts.
Depending on the specific model, various cushioning options are available. These range from rubber cushioning to adjustable air cushioning, enabling smooth and controlled stopping at different loads and speeds, thereby enhancing operational safety and comfort.
Applications:

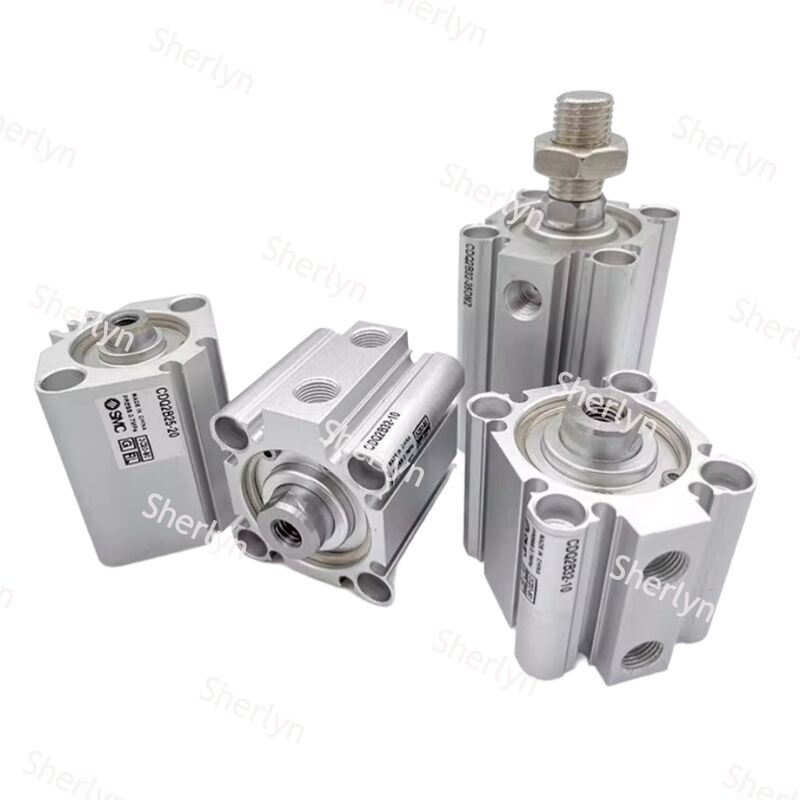

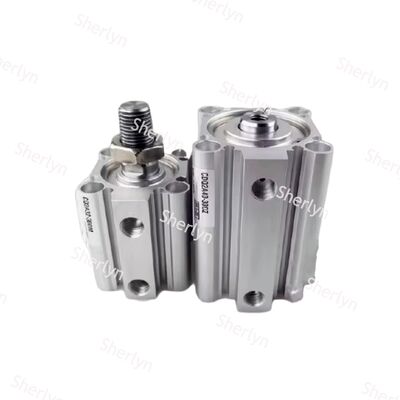

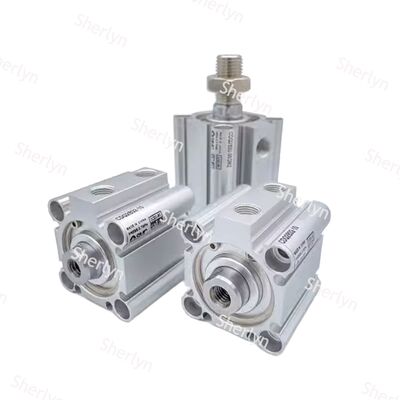

Overview of the CDQ2B Series
The CDQ2B series is renowned for its compact size and dependable performance, making it a popular choice in automation sectors where space is limited. Its versatile design allows it to be effectively utilized in a variety of precise and space-constrained environments.
Applications Across Various Industries
In the Electronics and Semiconductor Manufacturing industry, the CDQ2B series plays a crucial role in tasks such as part transfer, clamping, and positioning. These functions are essential within circuit board processing, chip packaging, and the operation of precision inspection equipment.
For Small Automation Equipment , this series serves as actuators in assembly machines, packaging machinery, and handling manipulators, providing reliable movement control within compact systems.
Within the realm of Medical Devices and Instruments , the CDQ2B series is ideal for applications that demand clean and compact drive solutions. It is commonly employed in laboratory automation devices and analyzers where space efficiency and cleanliness are paramount.
Guidance on Selection and Usage
When selecting a CDQ2B actuator, several key parameters must be considered. The bore size is fundamental as it determines the output force; common sizes include Φ12, Φ16, and Φ20. Equally important is the stroke length, which dictates the travel distance of the actuator.
It is also necessary to decide on the action type based on operational requirements. Double-acting variants are pneumatically driven in both directions, while single-acting versions utilize a spring return mechanism.
Additional options should be reviewed carefully. For example, adjustable cushioning may be required depending on the load and speed involved. Moreover, if the application involves side loads, opting for a guided version such as the CDQ2B/W series can help enhance durability and service life.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please ensure that you have the model number and specifications of your cylinder ready when seeking assistance. Our support team can help with installation guidance, troubleshooting common issues, maintenance tips, and performance optimization.
Services provided include detailed product documentation, replacement parts availability, and repair services to extend the life of your pneumatic cylinder. We recommend regular inspection and lubrication to maintain optimal operation. For custom requirements or special applications, our engineering team can offer tailored solutions to meet your needs.
To ensure safety and proper function, always follow the recommended operating pressures and environmental conditions specified in the product manual. Our technical resources include CAD drawings, installation videos, and FAQs to assist you throughout the lifecycle of your piston pneumatic cylinder.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure it arrives in perfect condition. Each cylinder is wrapped in protective foam and sealed within a sturdy cardboard box to prevent damage during transit. The packaging is designed to safeguard the product from moisture, dust, and mechanical impact.
For shipping, we use reliable carriers with tracking options to guarantee timely delivery. The packaging is labeled clearly with handling instructions to ensure proper care throughout the shipping process. Whether shipped domestically or internationally, the Piston Pneumatic Cylinder is securely packed to maintain its quality and performance upon arrival.
