Product Description:
Thin, Compact & Space-Saving Design

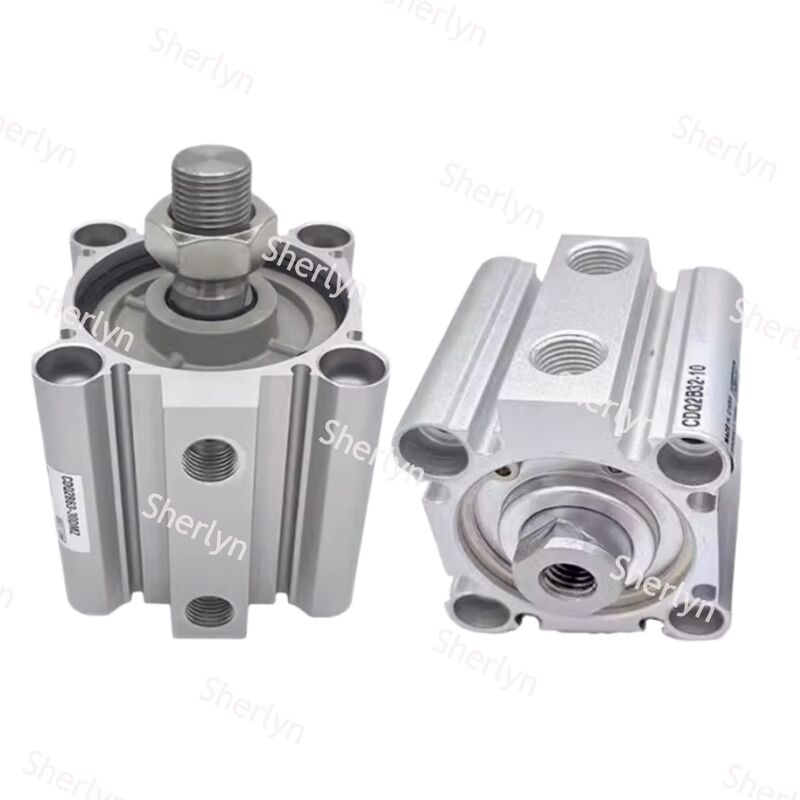

This cylinder features an ultra-thin profile that significantly reduces its overall dimensions compared to many traditional cylinders with the same bore size. Its compact width and height make it an excellent choice for applications where space is limited.
Constructed primarily from aluminum alloy, the cylinder boasts a lightweight design that contributes to the overall reduction in equipment weight, facilitating easier handling and installation.
Flexible Design & Easy Installation
The cylinder body includes specially designed mounting grooves on either two sides (for smaller bore sizes) or four sides (for larger bore sizes). These grooves accommodate compact magnetic switches such as the D-M9 series. Once installed, these switches sit flush with the body, optimizing space usage and minimizing the risk of impact damage.
In addition to the basic through-hole mounting option, this cylinder supports a variety of accessories including foot mounts and flanges, enabling versatile installation methods to meet diverse application requirements.
Reliable Performance & Easy Maintenance
Designed to operate reliably within a pressure range of 0.07 MPa to 1.0 MPa, and a temperature range from -10°C to +70°C, this cylinder ensures stable performance under various working conditions.
The cylinder comes pre-lubricated from the factory, allowing for maintenance-free operation over extended periods when used under standard air conditions. This feature significantly reduces the need for additional lubrication and lowers overall maintenance efforts.
To accommodate different operational needs, multiple cushioning options are available. Depending on the model, you can choose from rubber cushioning or adjustable air cushioning to achieve smooth stops tailored to varying loads and speeds.
Applications:
Applications of the CDQ2B Series
The CDQ2B series stands out due to its compact size and dependable performance, making it highly suitable for automation scenarios where space is limited. Its design allows it to be effectively integrated into various fields that demand precision and reliability.
In the realm of electronics and semiconductor manufacturing , these cylinders are commonly employed for tasks such as part transfer, clamping, and positioning. They play an important role in operations involving circuit board processing, chip packaging, and precision inspection machinery.
Additionally, the CDQ2B series finds extensive use in small automation equipment , serving as actuators within assembly lines, packaging systems, and handling manipulators. Their compact form factor allows seamless integration into these automated processes.
The medical field also benefits from the CDQ2B series, particularly in medical devices and instruments that require clean, compact drives. Applications include laboratory automation equipment and various types of analyzers where space and cleanliness are critical.
Selection and Usage Recommendations
When choosing a CDQ2B cylinder, several key parameters must be considered. Primarily, the bore size is crucial as it determines the output force; typical bore sizes include Φ12, Φ16, and Φ20. The stroke length is another important factor, as it dictates the travel distance of the cylinder.
It is also essential to decide on the action type of the cylinder. Users can select between double-acting cylinders, which are pneumatically powered in both directions, and single-acting cylinders, which utilize a spring return mechanism, depending on the application needs.
Additional options should be evaluated as well. For example, if adjustable cushioning is required based on the load and operating speed, this feature should be included. In cases where side loads may occur, opting for a guided version, such as the CDQ2B/W series, can enhance durability and extend service life.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial automation applications. For technical support, please refer to the user manual included with the product for installation guidelines, operating instructions, and maintenance procedures.
If you experience any issues with the Piston Pneumatic Cylinder, ensure that the cylinder is installed correctly, the air supply meets the specified pressure requirements, and that all connections are secure. Regular inspection and lubrication can help maintain optimal operation and extend the product’s lifespan.
For troubleshooting, common problems such as air leakage, unusual noises, or reduced cylinder speed can often be resolved by checking seals and fittings, cleaning the cylinder, and verifying the air supply quality. Replacement parts are available for worn or damaged components to restore the cylinder to full functionality.
We also offer comprehensive maintenance services and technical consultations to help you maximize the performance of your Piston Pneumatic Cylinder. Our support team is equipped to assist with product selection, customization, and integration into your existing systems.
To ensure the best results, always operate the cylinder within the specified pressure and temperature ranges, and follow all safety instructions provided. Proper handling and maintenance are key to achieving long-term reliability and efficiency.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static foam and placed inside a sturdy, custom-fitted cardboard box to prevent any movement or damage. The packaging materials are designed to absorb shocks and vibrations, keeping the product safe from impacts and environmental factors.
For shipping, we use reliable carriers with tracking options to ensure timely and secure delivery. Each package is clearly labeled with handling instructions and product details. We also offer various shipping methods to accommodate your needs, including express and standard delivery. Rest assured, your Piston Pneumatic Cylinder will arrive in perfect condition, ready for immediate use.
