- Stroke25 mm
- Piston diameter12 mm
- Piston rod threadM6
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Conforms to standardISO 6432
- Piston rod endExternal thread
- Structural designPiston Piston rod Cylinder barrel
Product Description:
The DSNU series is widely recognized for its exceptional efficiency and versatility. It incorporates a self-adjusting pneumatic end-position cushioning system, known as the PPV system. This innovative mechanism automatically adjusts the cushioning based on the load and speed, effectively minimizing impact and significantly reducing the time required for setup.
Designed with a compact, round shape, the DSNU series offers great flexibility for installation, even in confined spaces. Customers can choose from multiple mounting options, including basic types, flange mounts, and foot mounts, to best suit their application requirements.

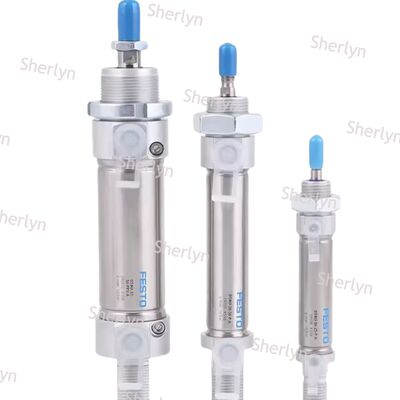

This series provides a broad selection of variants to cater to different needs. Besides the standard DSNU model, there is the DSNU-S variant, which is shorter for applications with even stricter space constraints. Additionally, the CRDSNU model is specifically engineered for environments that demand corrosion resistance.
Durability is a key feature of these cylinders, which are generally constructed from high-quality aluminum alloy or steel. They also offer stainless steel piston rod options for enhanced longevity. The cylinders are designed to operate reliably over a temperature range from -20°C to +80°C, making them suitable for use in a wide variety of industrial settings.
Applications:
The Festo DSNU series of compact cylinders are engineered specifically for linear motion applications within the automation industry. Their design focuses on delivering reliable and efficient performance across various tasks.
In general industrial automation, these cylinders find extensive use in fundamental operations such as material handling, positioning, pushing, clamping, and sorting. Their versatility makes them an essential component in many automated processes.
When it comes to critical industry equipment, the DSNU series is the preferred solution for actuating mechanisms in sectors like packaging, automotive assembly, food and beverage production, electronic manufacturing, and medical device equipment. Their robust performance ensures consistent operation in demanding environments.
Additionally, the DSNU compact cylinders are ideally suited for precision and integration applications. They function effectively as end effectors for industrial robots, including grippers, and can be integrated into inspection, measurement, and light assembly machinery. This enables precise movements that require rapid response times and a compact form factor.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance for a wide range of industrial applications. For technical support, please refer to the user manual included with the product, which contains detailed installation, operation, and maintenance instructions.
We offer comprehensive services including troubleshooting assistance, replacement parts, and repair services to ensure your pneumatic cylinder operates at peak efficiency. Our technical support team is available to provide guidance on product selection, installation best practices, and preventive maintenance schedules.
To maximize the lifespan and performance of your piston pneumatic cylinder, regular inspection and maintenance are recommended. This includes checking for air leaks, lubricating moving parts as specified, and verifying cylinder alignment and mounting integrity.
For advanced support, we provide customized training sessions and on-site service options to help your team better understand and maintain the pneumatic systems.
We are committed to supporting our customers with expert advice and quality service to ensure optimal operation of your Piston Pneumatic Cylinder.
Packing and Shipping:

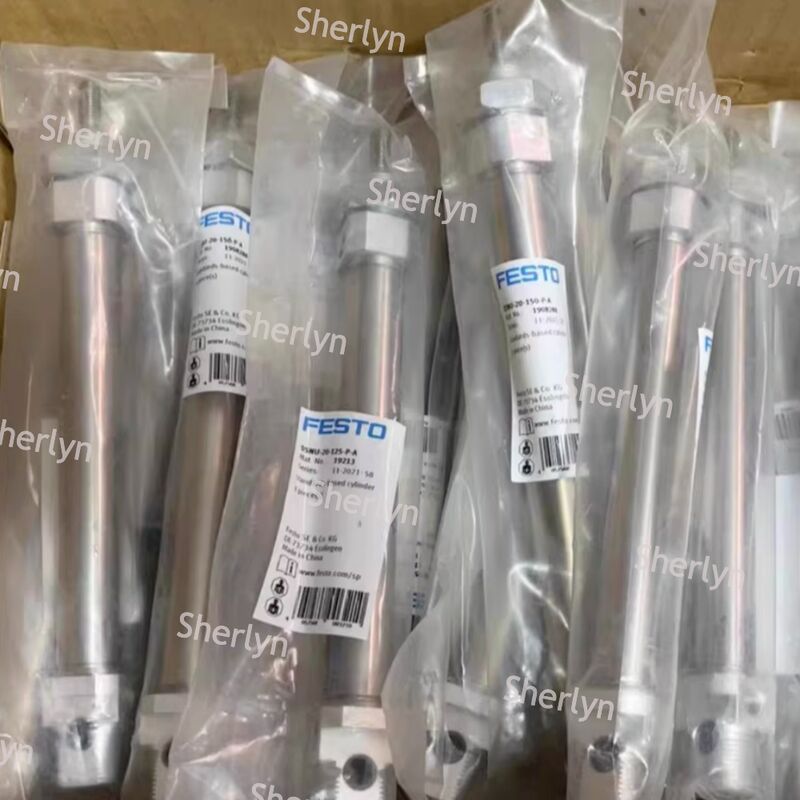

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam and then placed inside a custom-fitted corrugated cardboard box to prevent movement and absorb shocks. Additional cushioning materials are used as needed to safeguard delicate components.
For shipping, we use reliable carriers and provide tracking information to the customer. The packages are labeled clearly with handling instructions such as "Fragile" and "This Side Up" to ensure proper care. We also offer expedited shipping options for urgent orders to ensure timely delivery.
Upon receiving the product, customers are advised to inspect the packaging for any signs of damage and report any issues immediately to our customer service team for prompt resolution.
