- Stroke50 mm
- Piston diameter12 mm Equivalent diameter
- Piston rod threadM6
- Max. angle of rotation of the piston rod +/-2.5 deg
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Mode of operationDouble-acting
Product Description:

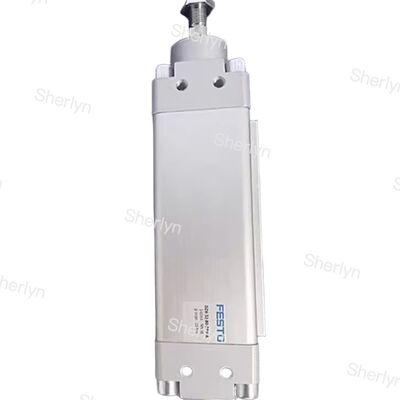

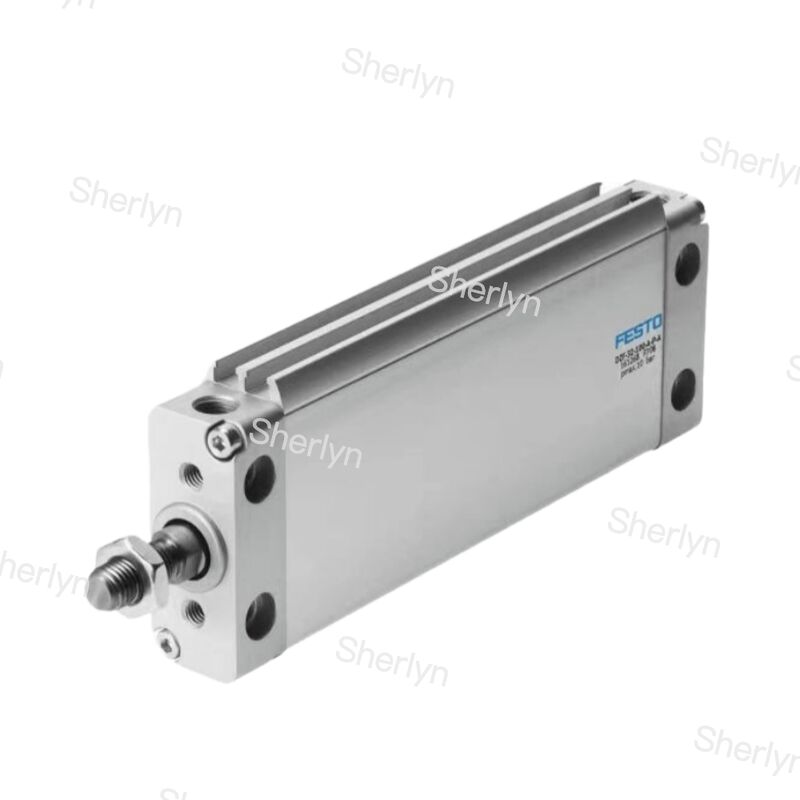

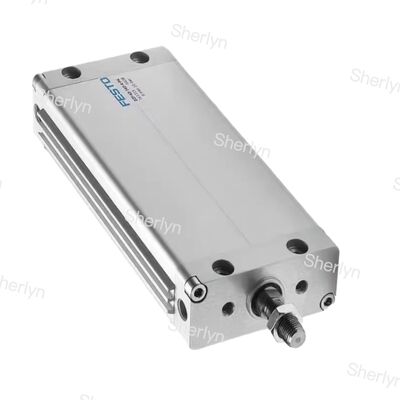

Extremely Flat Profile
This product incorporates a super-flat structural design, showcasing an exceptionally compact and flattened form within the cylinder category. Such a profile allows it to be installed conveniently in very tight and confined spaces where traditional designs might not fit.
Integrated Anti-Rotation Function
The piston is uniquely shaped with an oval cross-section, which delivers an intrinsic anti-rotation capability during its operation. This design guarantees precise linear motion and eliminates the necessity for additional guide units, enhancing both efficiency and reliability.
Integrated Mounting Design
Built with a focus on seamless integration, this construction is ideal for direct mounting onto valve manifolds or integrating into modular assemblies. It allows for compact connections with components such as pneumatic valve groups, resulting in a high density of components in a minimal footprint.
Flexible Standard Configurations
The device generally functions in a double-acting mode and is equipped with elastic cushioning rings or plates at both stroke ends to ensure smooth and controlled damping. The piston rod offers flexibility with options for either internal (female) or external threading to facilitate straightforward mounting of tools. Additionally, many models include grooves designed to accommodate inductive proximity sensors, enabling effective position detection.
Applications:
The DZF series is perfectly designed to meet the demands of high-density modular equipment. This includes multi-station machining units, assembly modules, and integrated valve manifolds. In these applications, multiple actuators need to be installed closely together side-by-side, making the compact design of the DZF series an ideal solution.
Additionally, the DZF series is well-suited for space-constrained precision mechanisms. It is commonly employed within electronic assembly equipment, semiconductor machines, small robotic end-effectors such as grippers, and precision measuring instruments. In these devices, the DZF series serves as the driving unit responsible for pushing, lifting, or clamping tasks where accuracy and compactness are critical.
Furthermore, the DZF series is an excellent choice for light-duty linear drive applications. It caters to environments with strict limitations on overall height, yet still demands reliable and precise linear motion. These characteristics make the series highly versatile for various specialized industrial uses.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a variety of industrial applications. For technical support, please ensure that you have the model number, serial number, and a detailed description of the issue ready when seeking assistance.
We offer comprehensive services including installation guidance, maintenance tips, troubleshooting, and repair services to maximize the lifespan and functionality of your pneumatic cylinder.
Technical documentation such as user manuals, installation guides, and maintenance instructions are available to help you understand the correct usage and care of the product.
If you encounter any operational issues, our support team can assist with diagnosing problems related to air pressure, cylinder alignment, seal integrity, and performance inconsistencies.
Regular maintenance is recommended to ensure optimal performance. This includes checking for air leaks, lubricating moving parts, and inspecting seals and mounting hardware.
For service and repair, please follow the guidelines provided in the technical documentation to avoid voiding the warranty and to ensure safety during handling.
We are committed to providing excellent customer service and technical support to ensure your satisfaction with our Piston Pneumatic Cylinder product.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each unit is wrapped in anti-static foam and placed inside a sturdy, custom-fitted cardboard box to prevent movement and damage. Additional cushioning materials are used as necessary to safeguard delicate components.
For shipping, we use reliable carriers that provide tracking and timely delivery services. Our packaging is designed to withstand various handling conditions, ensuring that the product arrives at your location in perfect working condition. International shipments are securely sealed and labeled in compliance with all shipping regulations.
We recommend inspecting the package upon receipt and reporting any damages immediately to facilitate prompt resolution. Our commitment is to deliver quality products safely and efficiently to meet your operational needs.
