- Stroke100 mm
- Piston diameter12 mm Equivalent diameter
- Piston rod threadM6
- Max. angle of rotation of the piston rod +/-2.5 deg
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Mode of operationDouble-acting
Product Description:

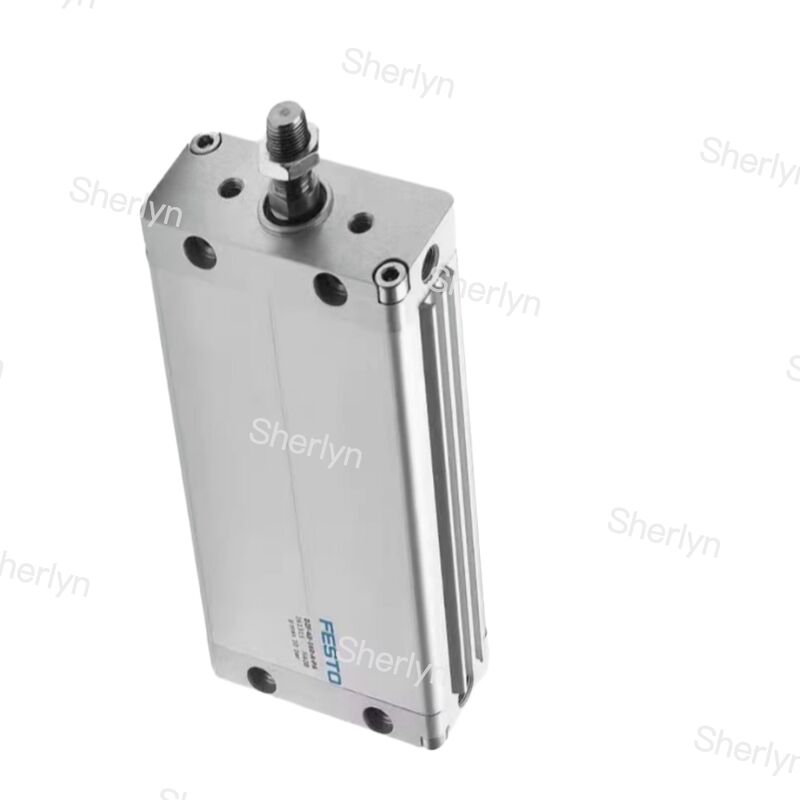

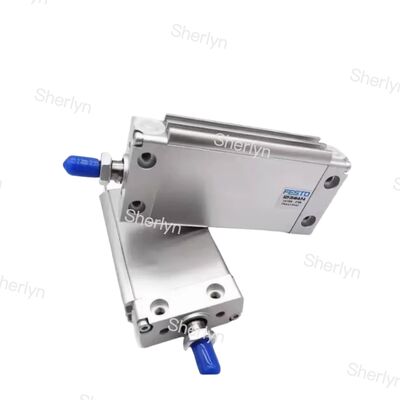

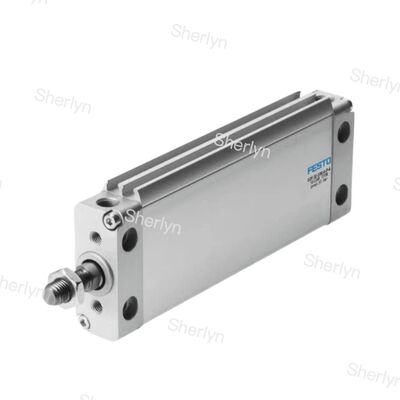

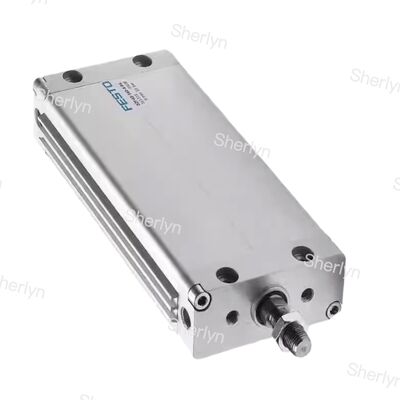

Extremely Flat Profile
This product adopts an exceptionally flat structural design, offering a highly compact and streamlined form factor within its cylinder category. Such a design allows it to be installed in areas where space is extremely limited, making it ideal for applications requiring a low-profile solution.
Integrated Anti-Rotation Function
The piston is crafted with a unique oval shape, which provides an inherent anti-rotation capability during its movement. This feature ensures precise linear motion control without the necessity of additional guiding mechanisms, enhancing both performance and simplicity.
Integrated Mounting Design
Designed with direct mounting in mind, the construction is especially suitable for attachment onto valve manifolds or modular integration setups. It can be connected compactly with components such as pneumatic valve assemblies, facilitating a high density of components within a confined space.
Flexible Standard Configurations
Typically operating in a double-acting mode, the device incorporates elastic cushioning rings or plates at both ends to provide smooth damping at the stroke's endpoints. The piston rod is available with either internal (female) or external threading, allowing straightforward tool mounting. Additionally, most models come equipped with grooves for installing inductive proximity sensors, simplifying position detection.
Applications:
The DZF series is perfectly designed to meet the demands of various applications due to its distinctive features. It excels especially in environments where high-density modular equipment is required. Examples include multi-station machining units, assembly modules, or integrated valve manifolds where several actuators must be installed closely together in a compact arrangement.
Additionally, the DZF series is highly suitable for space-constrained precision mechanisms. These mechanisms are commonly found within electronic assembly equipment, semiconductor machinery, and small robotic end-effectors such as grippers. It also serves as an effective driving unit for precision measuring instruments, performing tasks like pushing, lifting, or clamping with high accuracy.
Furthermore, the DZF series is ideal for light-duty linear drive applications. It is especially beneficial in situations where there are strict limitations on overall height but a need for dependable and precise linear motion remains critical. This makes the DZF series a versatile choice for a variety of compact linear motion requirements.
