- Stroke80 mm
- Piston diameter12 mm Equivalent diameter
- Piston rod threadM6
- Max. angle of rotation of the piston rod +/-2.5 deg
- CushioningElastic cushioning rings/pads at both ends
- Mounting positionAny
- Mode of operationDouble-acting
Product Description:

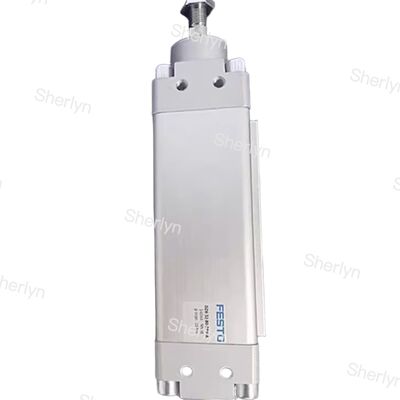

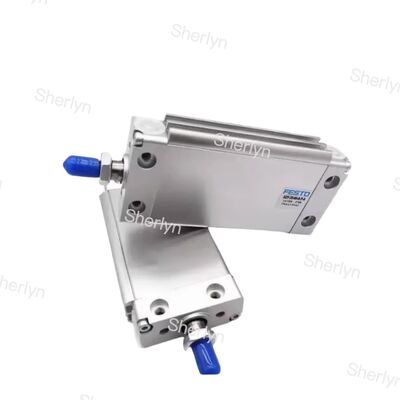

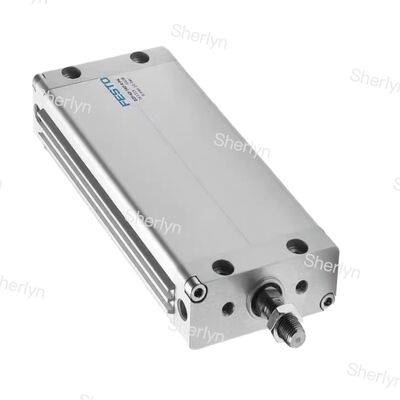

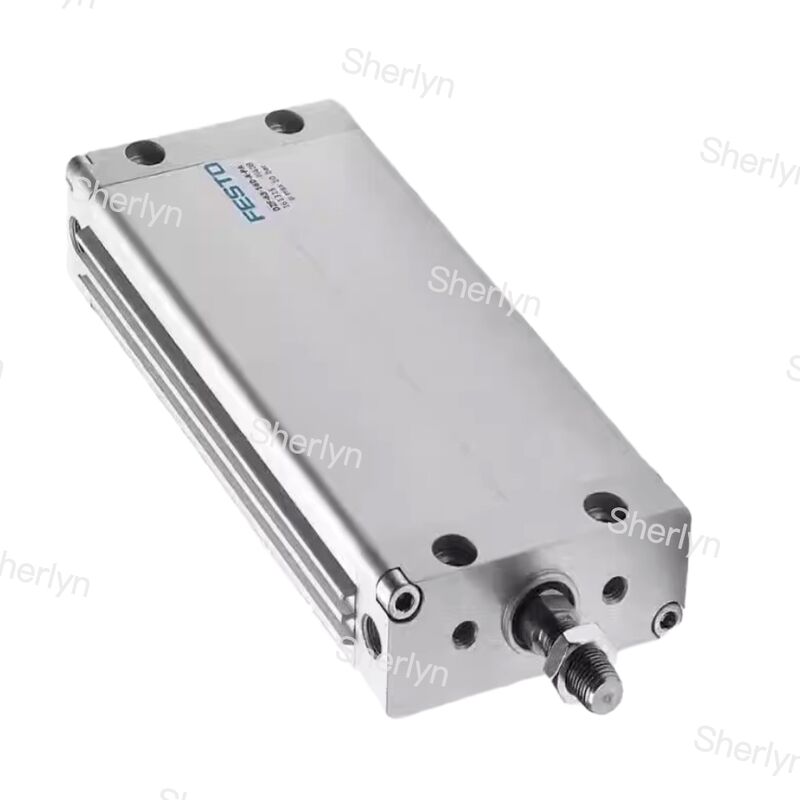

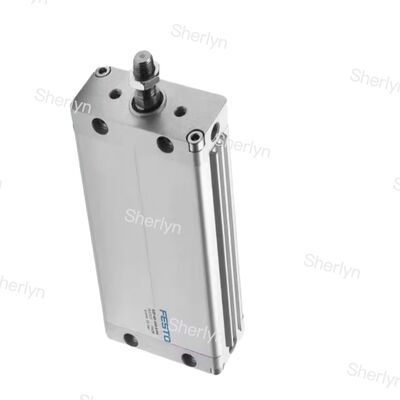

Extremely Flat Profile
This product utilizes a super-flat structural design, showcasing an exceptionally compact and streamlined form within its cylinder category. Such a design allows it to be installed efficiently in areas where space is highly limited.
Integrated Anti-Rotation Function
The piston is designed with a unique oval shape that delivers an effective anti-rotation capability throughout its movement. This feature guarantees precise linear motion without requiring supplementary guide mechanisms.
Integrated Mounting Design
The construction of this product is optimized for direct installation onto valve manifolds or for modular setups. It can be seamlessly connected to other components, such as pneumatic valve assemblies, enabling a compact arrangement with high component density.
Flexible Standard Configurations
Generally, the device operates in a double-acting mode and includes elastic cushioning rings or plates at both ends to ensure smooth damping at the stroke limits. The piston rod offers options for either internal (female) or external threading to facilitate easy tool attachment. Additionally, most versions come equipped with grooves designed for mounting inductive proximity sensors, simplifying position detection tasks.
Applications:
The DZF series presents an ideal solution for high-density modular equipment. This includes multi-station machining units, assembly modules, and integrated valve manifolds. These applications often require several actuators to be installed closely together, making the DZF series a perfect fit due to its compact design.
Another key application of the DZF series is in space-constrained precision mechanisms. These are frequently found within electronic assembly machinery, semiconductor equipment, small robotic end-effectors such as grippers, and precision measuring devices. In these settings, the DZF series serves as an efficient driving unit, enabling precise pushing, lifting, or clamping operations.
Moreover, the DZF series is well-suited for light-duty linear drives. It is especially favorable in scenarios where there is a strict limit on the overall height of the equipment but where reliable and accurate linear motion is still essential. This makes it a versatile choice for various compact and precise linear motion applications.
