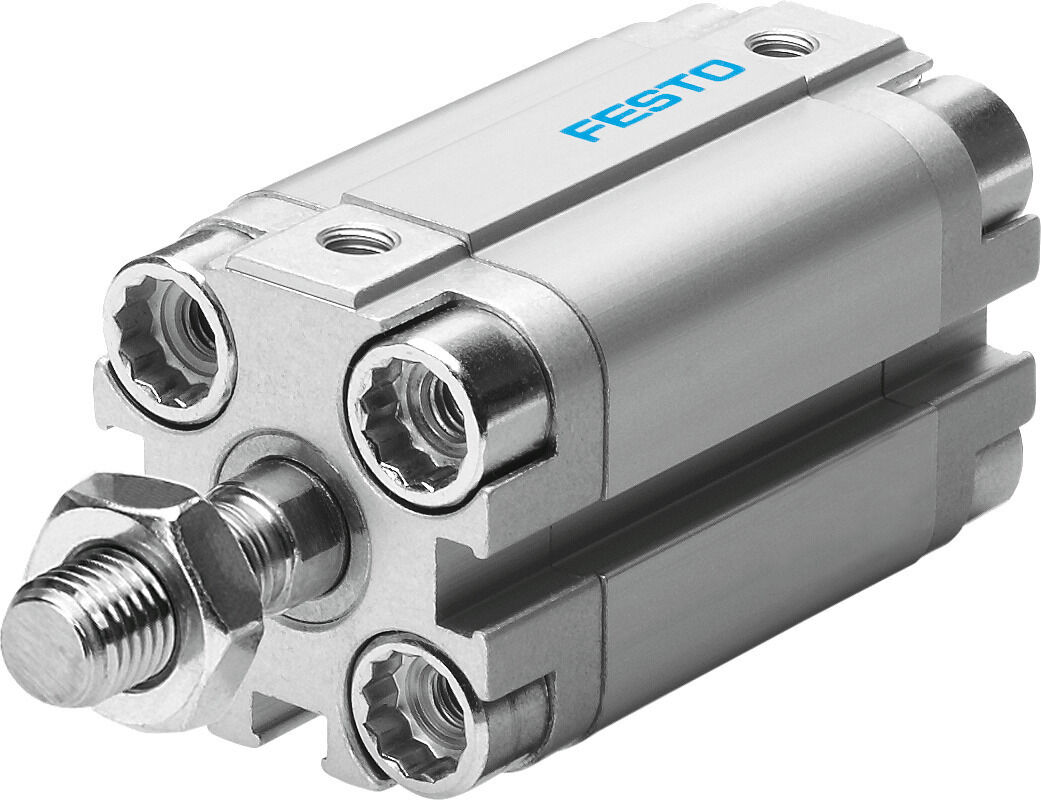

ADVU-12-15-A-P-A 156588 156503 FESTO Compact Cylinder ADVU-12-5-10-15-20-25-30-40-A-P-A

Product Description:

The FESTO ADVU series compact cylinders are pneumatic actuators designed with a space-saving form and multifunctionality. These cylinders are widely applied in automated systems, manufacturing equipment, and various other industrial domains. Below, their key attributes and detailed product description are outlined.

These cylinders operate in a double-acting mode and use compressed air that meets the ISO 8573-1:2010 standard (class 7:4:4) as their operating medium. They function effectively within an operating pressure range of 0.08 MPa to 1 MPa (0.8 bar to 10 bar), and within temperatures from -20℃ up to 80℃.

With corrosion resistance rated as Class 2, these cylinders are suitable for environments with moderate corrosion stress. They come in a wide range of piston diameters, including 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm.

Stroke lengths are flexible; the standard strokes range from 5 mm up to 80 mm, while optional strokes cover 1 mm to 400 mm depending on the piston diameter chosen. The piston rod is made of high-alloy stainless steel to ensure durability, and both the cylinder barrel and end caps are fabricated from forged aluminum alloy. Dynamic seals incorporate materials such as nitrile rubber (NBR) and thermoplastic polyurethane (TPE-U / PU).

The ADVU cylinders feature a sleek structural design characterized by smooth surfaces and three-sided grooves that facilitate position sensing. The front and rear end caps are securely attached directly to the cylinder barrel using hexagon socket head screws. The entire assembly is mounted utilizing these screws for reliable installation.

FESTO offers various derivative models within the ADVU series to address specific application needs. For example, the S1 variant comes with an extended piston rod bearing; the S2 has a double-ended piston rod; the S6 utilizes high-temperature resistant seals capable of withstanding temperatures up to 120℃; and the S20 features a double-ended hollow piston rod, among others.

Installation flexibility is a key feature, as these cylinders support multiple mounting methods. They can be affixed using hexagon socket head screws or by employing the grooves on three sides along with a broad range of mounting accessories, meeting diverse setup requirements.

For position detection, the cylinders are compatible with proximity sensors that fit seamlessly into the profile grooves. These sensors can be installed flush with the surface, allowing for quick and easy replacement without the need to modify the original mounting position.

In terms of performance, the ADVU series provides a significant space-saving advantage by reducing the footprint by 50% compared to comparable standard cylinders conforming to ISO 15552. Constructed with premium materials, these cylinders exhibit a robust build quality, impressive corrosion resistance, and deliver consistent, reliable operational performance.

Technical Parameters:

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is a highly versatile and reliable component designed for a wide range of industrial applications. Known for its superior quality and precision, this air piston cylinder features an aluminium body that ensures durability while maintaining a lightweight structure. Its double-acting mode of operation allows for efficient and controlled motion in both directions, making it ideal for automation tasks that require precise positioning and repeatability.

This air piston cylinder is equipped with an oval piston that provides excellent protection against torsion and guides the piston rod smoothly, enhancing the overall stability and performance of the device. The piston rod is threaded with an M3 specification, which allows easy integration with various mechanical assemblies. With a piston diameter of 12 mm (equivalent diameter), the ADVU model is suitable for applications requiring compact size without compromising power.

Thanks to its flexible mounting position capability, this FESTO air piston cylinder can be installed in any orientation, offering great adaptability to different system designs. It is CE certified, ensuring compliance with European safety and quality standards, making it a trustworthy choice for manufacturers worldwide.

The piston pneumatic cylinder is ideal for use in automation equipment, packaging machines, assembly lines, and material handling systems. Its aluminium body and robust construction make it suitable for environments where corrosion resistance and lightweight components are essential. Whether used in factories for repetitive tasks or in robotics for precise movements, the FESTO ADVU air piston cylinder delivers consistent performance and longevity.

With a minimum order quantity of just one unit, the product is accessible for both small-scale projects and large-scale industrial demands. Pricing is negotiable, and the packaging can be customized as per client requirements, typically shipped in secure cartons. The supply ability is up to 5000 pieces per month, and delivery time ranges from 1 to 7 working days after payment. Payment terms include T/T, Western Union, and Paypal, facilitating convenient and flexible transactions.

In summary, the FESTO ADVU air piston cylinder with its aluminium body, oval piston design, and versatile operation mode is an excellent choice for various pneumatic applications requiring precision, reliability, and adaptability in modern industrial settings.
