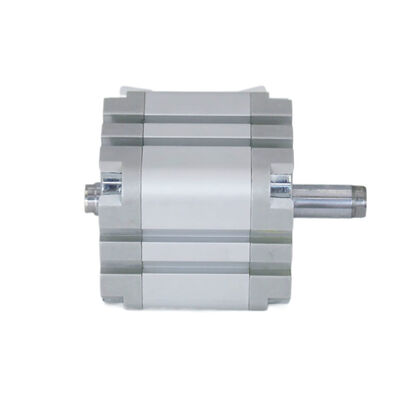

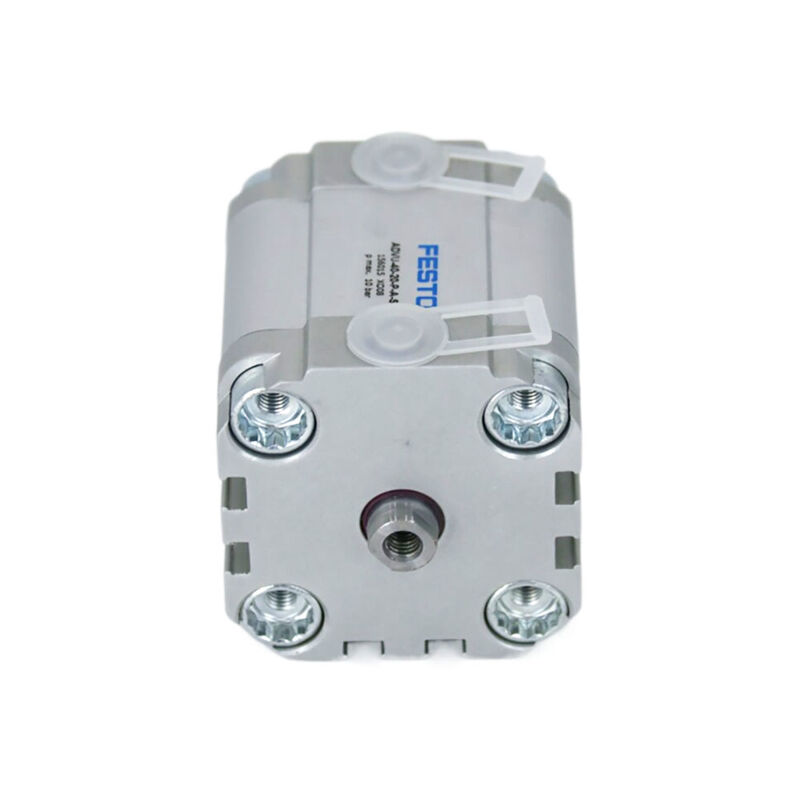

ADVU-100-10-A-P-A FESTO 156663 ADVU-100-10-15-20-25-30-40-50-A-P-A Compact cylinder

Product Description:

The ADVU series of compact cylinders from FESTO represent pneumatic actuators designed with a focus on space efficiency and multifunctionality. These cylinders are widely utilized across automated systems, manufacturing machinery, and various other industrial fields, due to their reliable performance and flexible application.

These cylinders operate in a double-acting mode and use compressed air that meets the ISO 8573-1:2010 [7:4:4] quality standard as the operating medium. Their operating pressure typically ranges between 0.08 MPa and 1 MPa (0.8 bar to 10 bar), with an operational temperature span from -20℃ up to 80℃. For environments with moderate corrosion levels, the cylinders are rated with Corrosion Resistance Class 2.

The ADVU series offers a broad selection of piston diameters, including sizes such as 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm. Stroke lengths typically range from 5 mm to 80 mm for standard models, while optional strokes can extend from 1 mm to as much as 400 mm, depending on the piston diameter chosen.

Key materials used include high-alloy stainless steel for the piston rod and forged aluminum alloy for both the cylinder barrel and end caps. The dynamic seals are made from nitrile rubber (NBR) and thermoplastic polyurethane (TPE-U), ensuring durability and reliable sealing.

The structural design of the ADVU cylinders is sleek and modern, featuring smooth surfaces along with grooves on three sides designed specifically for position sensing. The end caps—both front and rear—are securely fastened directly onto the cylinder barrel with screws, while the entire assembly is mounted using hexagon socket head screws to provide a robust configuration.

This series includes several derivative types tailored to specific applications. For example, the S1 variant has an extended piston rod bearing, the S2 type features a double-ended piston rod, the S6 version incorporates seals rated for high temperatures up to 120℃, and the S20 is designed with a double-ended hollow piston rod.

Installation flexibility is a notable feature, as the cylinder supports a variety of mounting methods. Besides the conventional use of hexagon socket head screws, the provided grooves on three sides allow the use of a comprehensive range of mounting components to accommodate diverse setup requirements.

For position detection, these cylinders are compatible with proximity sensors that fit neatly within the profile grooves. These sensors can be installed flush with the cylinder surface, which facilitates easy sensor replacement without the need to change the original mounting arrangement.

When compared to similar cylinders following the ISO 15552 standard, the ADVU series reduces the installation footprint by approximately 50%, thanks to its compact design. Manufactured from high-quality materials, these cylinders combine a sturdy structure with good corrosion resistance and provide stable, dependable operational performance.

Technical Parameters:

This compact cylinder offers reliable performance with a double-acting mode of operation and an oval piston design for protection against torsion. The compact cylinder features a piston rod thread of M3, a stroke of 10 mm, and a piston diameter of 12 mm (equivalent diameter). Its mounting position is flexible, allowing installation in any orientation. Truly a compact cylinder designed for versatile pneumatic applications.

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is an essential component widely utilized in various industrial automation applications. Renowned for its high-quality aluminium body and robust design, this CE-certified automation cylinder ensures reliable performance in demanding environments. With a piston diameter of 12 mm (equivalent diameter) and a stroke length of 10 mm, the ADVU model is specifically engineered for precision and efficiency in double-acting operations.

One of the primary application occasions for the FESTO ADVU pneumatic cylinder is in automated manufacturing lines, where precise and repeatable motion control is critical. Its double-acting mode of operation allows for controlled extension and retraction, making it ideal for tasks such as material handling, packaging, and assembly processes. The oval piston design provides protection against torsion and guide, ensuring smooth and stable movement, which is crucial in automation systems requiring consistent accuracy.

Moreover, the pneumatic cylinder’s compact size and piston rod thread of M3 make it suitable for integration into smaller automation equipment and robotic systems. This flexibility allows engineers to implement the FESTO ADVU cylinder in diverse scenarios, from automotive assembly lines to semiconductor manufacturing and food processing plants. Its aluminium body not only contributes to a lightweight structure but also offers excellent corrosion resistance, enhancing durability and reducing maintenance requirements.

Thanks to its efficient design and high supply ability of 5000 pieces per month, the FESTO ADVU pneumatic cylinder can be quickly delivered within 1-7 work days after payment, making it a dependable choice for projects with tight deadlines. The product is available with flexible packaging options, including cartons or customized packaging as per client requirements, and can be purchased with a minimum order quantity of just one unit, allowing for scalability in procurement.

Payment terms such as T/T, Western Union, and PayPal provide convenience and security for international buyers negotiating the price of this premium automation cylinder. Whether used in industrial automation, robotics, or machine tooling, the FESTO ADVU pneumatic cylinder stands out as a versatile and reliable solution designed to optimize operational efficiency and enhance production quality.

Packing and Shipping:

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped in anti-static foam and placed inside a sturdy, custom-fitted cardboard box to prevent any movement or damage.

For added safety, the boxes are reinforced with cushioning materials and sealed with high-quality adhesive tape. All packages are clearly labeled with handling instructions and product information.

We offer multiple shipping options to meet your needs, including standard, expedited, and freight shipping. Each shipment is tracked and insured to guarantee timely and safe delivery.

Upon receiving your Piston Pneumatic Cylinder, please inspect the package for any signs of damage before signing. Contact our customer service immediately if you notice any issues so we can assist you promptly.
