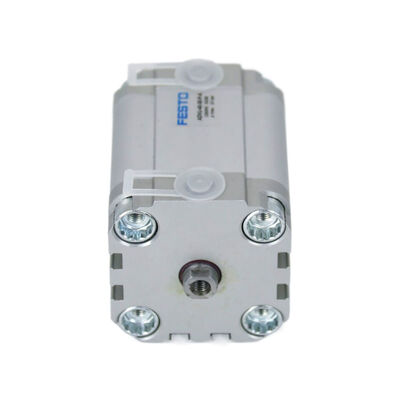

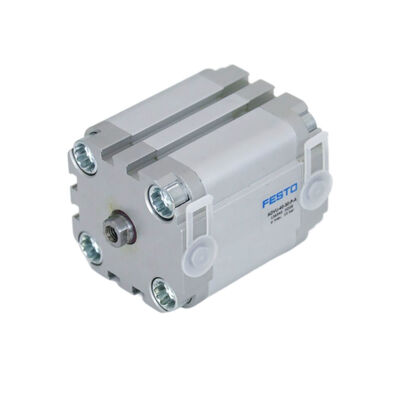

ADVU-80-10-P-A FESTO 156568 ADVU-80-10-15-20-25-30-40-50-60-70-80-P-A-P-A Compact cylinder

Product Description:

The ADVU series compact cylinders from FESTO are pneumatic actuators designed with a compact profile and multifunctional capabilities. These cylinders are widely applied across automated systems, manufacturing machinery, and other industrial sectors, offering both efficiency and reliability.

These cylinders operate in a double-acting mode and utilize compressed air that complies with the ISO 8573-1:2010 standard [7:4:4]. Their typical operating pressure ranges between 0.08 MPa and 1 MPa (0.8 bar to 10 bar), while the operating temperature covers a spectrum from -20℃ to 80℃. The corrosion resistance is rated as Class 2, making them suitable for environments experiencing moderate corrosive stress.

The piston diameters are available in a broad selection of sizes, including 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm. Stroke options range from a standard 5 mm to 80 mm, with optional strokes extending from 1 mm up to 400 mm, depending on the piston diameter. The piston rod is constructed from high-alloy stainless steel, ensuring durability, while the cylinder barrel and end caps are made from forged aluminum alloy. Sealing materials include nitrile rubber (NBR) and thermoplastic polyurethane (TPE-U (PU)) to provide a reliable dynamic seal.

The ADVU series cylinders feature a streamlined design with smooth surfaces and grooves running along three sides to accommodate position sensing. Both the front and rear end caps are securely attached to the cylinder barrel by screws, and the entire assembly is mounted using hexagon socket head screws.

There are several derivative versions available in the series, each catering to specific needs. For instance, the S1 version includes an extended piston rod bearing; the S2 features a double-ended piston rod; the S6 type has high-temperature resistant seals capable of withstanding up to 120℃; and the S20 model comes with a double-ended hollow piston rod.

Installation flexibility is a key feature of the ADVU series. The cylinders can be mounted using hexagon socket head screws or by utilizing the grooves along the three sides along with a wide range of mounting accessories to meet various installation requirements.

Position detection is made convenient through compatibility with proximity sensors. These sensors fit into the profile grooves and can be installed flush with the surface, allowing for effortless replacement without altering the original mounting setup.

Compared to other standard cylinders compliant with ISO 15552, the ADVU series stands out by reducing the installation space requirement by half. This compact design allows users to save valuable workspace. Alongside its space-saving form factor, the cylinder’s high-quality materials contribute to a robust structure that resists corrosion and ensures stable, reliable performance throughout its operation.

Technical Parameters:

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is a versatile and reliable pneumatic actuator designed to meet the demands of various industrial applications. With its aluminium body construction, this pneumatic cylinder offers excellent durability and resistance to corrosion, making it suitable for use in harsh environments. The model ADVU, certified with CE, ensures compliance with safety and quality standards, providing peace of mind for users across different sectors.

This pneumatic cylinder features a piston diameter of 12 mm and a stroke length of 10 mm, making it ideal for precise and compact motion control tasks. Its double-acting mode of operation allows for efficient pushing and pulling actions, enhancing operational flexibility. The oval piston design provides protection against torsion and guide issues, ensuring smooth and accurate movement. Moreover, its ability to be mounted in any position adds to its adaptability in diverse installation scenarios.

The ADVU pneumatic cylinder is widely used in automation systems, packaging machinery, assembly lines, and robotic applications. Its aluminium body construction ensures lightweight handling, which is crucial for high-speed operations and reducing overall machinery weight. Industries such as automotive manufacturing, electronics production, food and beverage processing, and material handling greatly benefit from the robust performance and reliability of this pneumatic cylinder.

In addition to its technical advantages, FESTO offers a minimum order quantity of just one piece, making it accessible for both small-scale projects and large production runs. With a supply ability of 5000 pieces per month and delivery times ranging from 1 to 7 workdays after payment, customers can rely on timely fulfillment of their orders. Payment terms including T/T, Western Union, and Paypal provide convenient options for international buyers. Packaging is flexible and tailored to client requirements, typically shipped in cartons to ensure product safety during transit.

Overall, the FESTO ADVU Pneumatic Cylinder with its aluminium body is an excellent choice for engineers and procurement specialists seeking a high-quality, CE-certified pneumatic solution. Its robust design, operational versatility, and efficient delivery make it suitable for a wide range of application occasions such as automation control, precision machinery, and industrial process equipment, where reliable and precise pneumatic actuation is essential.
