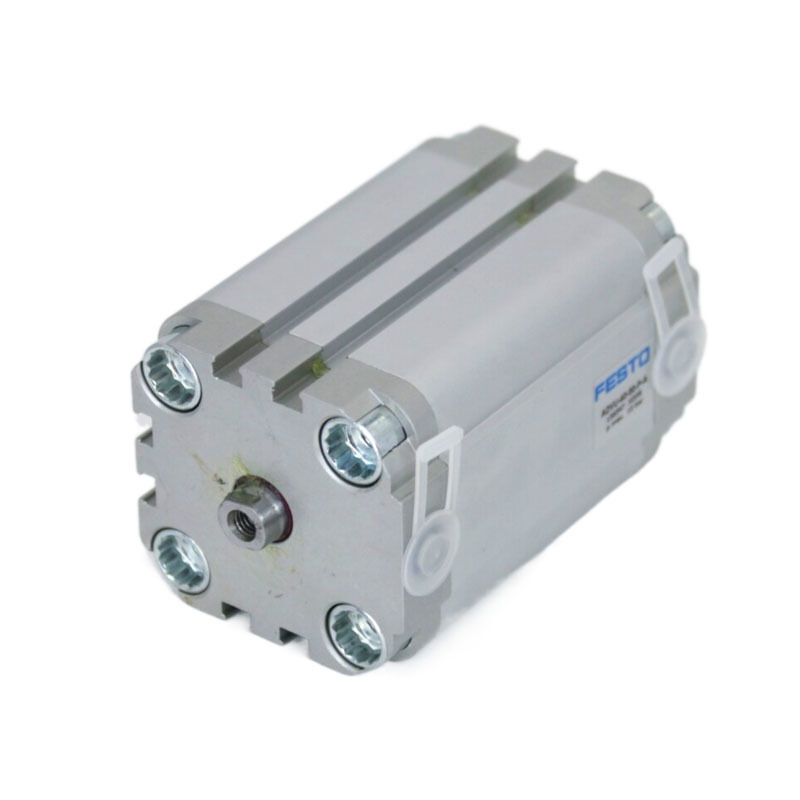

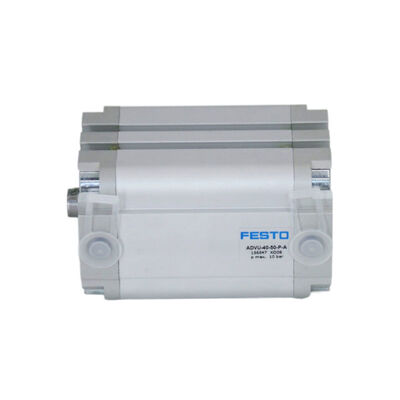

ADVU-63-30-A-P-A 156649 FESTO Compact Cylinder ADVU-63-5/10/15/20/25/30/35/40-A-P-A

Product Description:

The ADVU series compact cylinders from FESTO are pneumatic actuators designed with a space-saving profile and versatile functionalities. They are extensively utilized in automated systems, manufacturing equipment, and various other industrial applications. Below is a detailed overview of their attributes and product specifications.

These cylinders operate in a double-acting mode and use compressed air that meets the ISO 8573-1:2010 standard [7:4:4]. The operating pressure typically ranges from 0.08 MPa to 1 MPa (0.8 bar to 10 bar). They are capable of functioning within an operating temperature span from -20℃ to 80℃.

The corrosion resistance of these cylinders is classified as Class 2, making them suitable for environments with moderate corrosion stress. They come in a variety of piston diameters, including 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm.

Regarding stroke length, the standard stroke ranges between 5 mm and 80 mm, while optional strokes can extend from 1 mm up to 400 mm. The available stroke range depends on the specific piston diameter chosen. The piston rod itself is made from high-alloy stainless steel, ensuring durability and robustness.

The cylinder barrel and end caps are crafted from forged aluminum alloy, and the dynamic seals are composed of nitrile rubber (NBR) or thermoplastic polyurethane (TPE-U/PUs), providing reliable sealing performance.

The design of the ADVU series cylinders is characterized by a slim profile featuring smooth surfaces and grooves on three sides that support position sensing. Both the front and rear end caps are directly screwed onto the cylinder barrel, while assembly is facilitated with hexagon socket head screws.

A wide range of derivative types is available to accommodate different application needs. These include the S1 variant with an extended piston rod bearing, the S2 double-ended piston rod, the S6 model equipped with high-temperature resistant seals that can withstand up to 120℃, and the S20 with a double-ended hollow piston rod, among others.

The ADVU cylinders support multiple mounting options. Installation can be done using hexagon socket head screws or by leveraging the grooves on the three sides along with a comprehensive selection of mounting components, thus meeting diverse mounting requirements.

Position detection is facilitated through compatibility with proximity sensors. These sensors can be embedded directly into the profile grooves and mounted flush with the surface, which allows for easy replacement without the need to modify the original mounting configuration.

In terms of performance, these compact cylinders offer significant advantages. Compared to similar standard cylinders conforming to ISO 15552, they reduce the space required by up to 50%. The compact design ensures efficient use of installation space while maintaining high-quality materials, a robust construction, excellent corrosion resistance, and consistent, reliable operational performance.

Technical Parameters:

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is a highly versatile and reliable automation cylinder designed to meet the demanding needs of modern industrial applications. Certified with CE standards, this compact cylinder ensures safety and quality compliance, making it an ideal choice for various automated systems. Its double-acting mode of operation allows precise control of the piston movement, providing efficient and consistent performance in a wide range of scenarios.

With a stroke length of 10 mm and an M3 piston rod thread, the ADVU model is perfectly suited for applications requiring compact dimensions without compromising on power and durability. The oval piston design offers excellent protection against torsion and guides the piston smoothly, ensuring stability and reducing wear over time. This feature makes the FESTO ADVU an excellent option for mounting in any position, providing flexibility in installation and integration within automation setups.

The compact cylinder is widely used in manufacturing lines where space constraints demand smaller yet effective components. Its ability to operate reliably in tight spaces makes it ideal for packaging machinery, assembly automation, and robotic systems. The piston pneumatic cylinder is also commonly applied in precision handling equipment, where accurate and repeatable linear motion is critical to the production process.

Thanks to FESTO's robust supply ability of 5000 pieces per month and a minimum order quantity of just one unit, businesses can easily procure this automation cylinder according to their production scale. Pricing is negotiable, and the product is shipped in cartons or customized packaging as per client requirements, ensuring safe delivery within 1-7 working days after payment. Payment terms are flexible, accepting T/T, Western Union, and PayPal to accommodate diverse customer preferences.

Overall, the FESTO ADVU piston pneumatic cylinder stands out as a compact cylinder solution that combines high performance, flexibility, and reliability. Its applications span across various industrial sectors including automotive assembly, electronics manufacturing, food and beverage packaging, and any scenario requiring precise linear motion control within compact spaces. This makes it an indispensable component for automation engineers and system integrators striving for efficiency and quality in their pneumatic systems.
