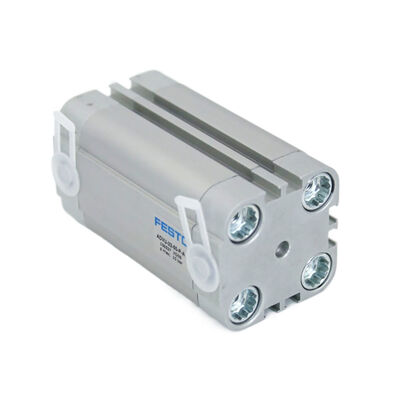

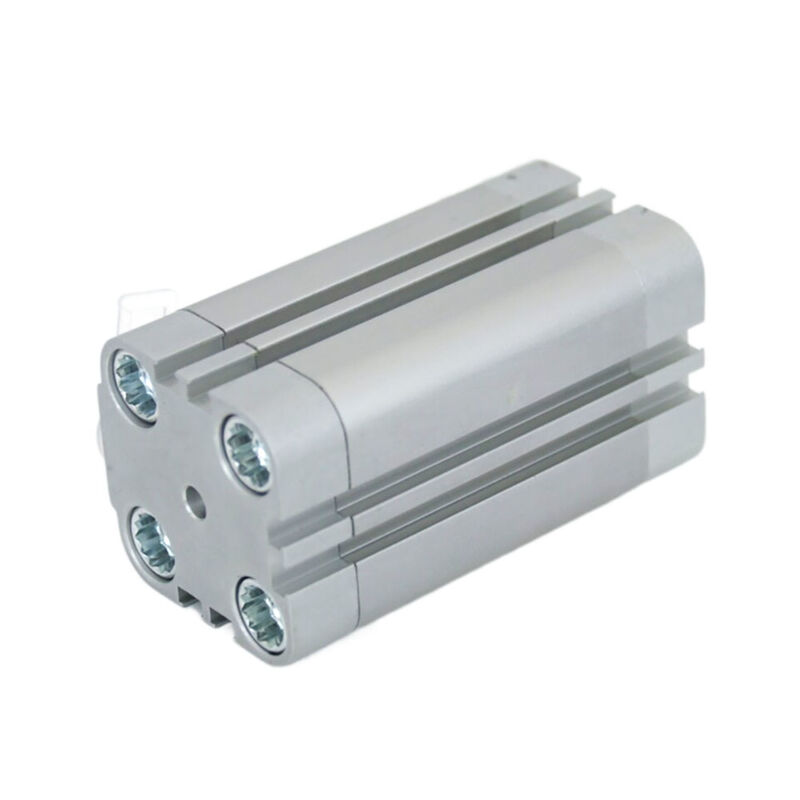

ADVU-50-15-P-A Compact Cylinder FESTO ADVU-50-5/10/15/20/25/30/40/50/90-P-A/-A-P-A

Product Description:

The ADVU series compact cylinders by FESTO are pneumatic actuators designed with a space-saving profile and multifunctional capabilities. These cylinders are extensively employed in various automated systems, manufacturing equipment, and other industrial applications.

These cylinders operate in a double-acting mode and utilize compressed air that complies with the ISO 8573-1:2010 standard [7:4:4]. The typical operating pressure ranges from 0.08 MPa to 1 MPa (equivalent to 0.8 bar to 10 bar), while the operating temperature spans from -20℃ to 80℃. With a corrosion resistance classification of Class 2, these cylinders are suitable for environments experiencing moderate corrosive stresses.

The piston diameter is available in a broad spectrum of sizes including 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm. Standard stroke lengths range from 5 mm up to 80 mm, with optional strokes extending from 1 mm to 400 mm, depending on the piston diameter selected.

Construction materials include a high-alloy stainless steel piston rod and forged aluminum alloy cylinder barrels and end caps. The dynamic seals are composed of nitrile rubber (NBR) and thermoplastic polyurethane (TPE-U, also known as PU), ensuring durability and reliability.

The design of the ADVU series features a slim profile with smooth surfaces and grooves on three sides that accommodate position sensing. The front and rear end caps are secured directly to the cylinder barrel using hexagon socket head screws, providing a robust and compact build.

Various derivative models exist, such as the S1 type which includes an extended piston rod bearing, S2 with a double-ended piston rod, S6 equipped with high-temperature resistant seals capable of withstanding up to 120℃, and S20 featuring a double-ended hollow piston rod, among others.

Installation flexibility is supported through multiple mounting options. The cylinder can be fixed using hexagon socket head screws or mounted utilizing the three-sided grooves in combination with a wide array of mounting accessories, which cater to diverse application requirements.

For position detection, the cylinders are compatible with proximity sensors that fit into the profile grooves flush with the surface. This setup simplifies sensor replacement without adjustment to the initial mounting configuration.

When compared with standard cylinders compliant with ISO 15552, the ADVU series reduces space requirements by 50%, providing a compact solution that optimizes installation areas. Made from premium materials, these cylinders offer a strong structure with excellent corrosion resistance and consistently stable, dependable operational performance.

Technical Parameters:

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is a highly versatile automation cylinder designed for a wide range of industrial applications. With its aluminium body and oval piston for enhanced torsion protection and guidance, this air piston cylinder is engineered to deliver reliable performance in various working conditions. Certified with CE standards, the ADVU model ensures compliance with international quality and safety regulations, making it an ideal choice for automated systems requiring precision and durability.

This double-acting pneumatic cylinder operates efficiently with a piston diameter of 12 mm equivalent diameter, offering smooth and controlled motion suitable for numerous automation tasks. The piston rod features an M3 thread, allowing easy and secure attachment of end-effectors or other mechanical components. Thanks to its flexible mounting position, the ADVU cylinder can be installed in any orientation, enhancing its adaptability to different machinery and assembly lines.

In manufacturing environments, the ADVU air piston cylinder is commonly employed in robotic arms, conveyor systems, packaging machines, and material handling equipment. Its aluminium body provides a lightweight yet robust construction, enabling quick and precise movements essential for high-speed production processes. The cylinder’s design also supports minimal maintenance, reducing downtime and increasing overall operational efficiency.

Packaging and delivery of the FESTO ADVU pneumatic cylinder are tailored to client requirements, with packaging options such as cartons available to ensure safe transit. The supply capacity is robust, with up to 5000 pieces available monthly, and a delivery time of just 1-7 work days after payment. Payment terms are flexible, accepting T/T, Western Union, and Paypal, while pricing is negotiable depending on order quantity and specifications.

The ADVU automation cylinder is highly suited for industries like automotive manufacturing, electronics assembly, food and beverage processing, and general automation solutions. Its compact size and reliable operation enable seamless integration into complex systems where precise linear motion is critical. Whether used for pushing, pulling, lifting, or positioning tasks, this air piston cylinder guarantees consistent performance and long service life.

Overall, the FESTO ADVU piston pneumatic cylinder stands out as a dependable choice for businesses seeking efficient, customizable, and CE-certified pneumatic actuators. Its combination of a durable aluminium body, torsion-resistant oval piston design, and flexible mounting options makes it a key component in modern automated machinery and equipment.
