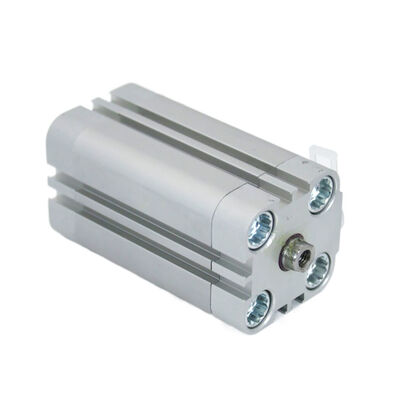

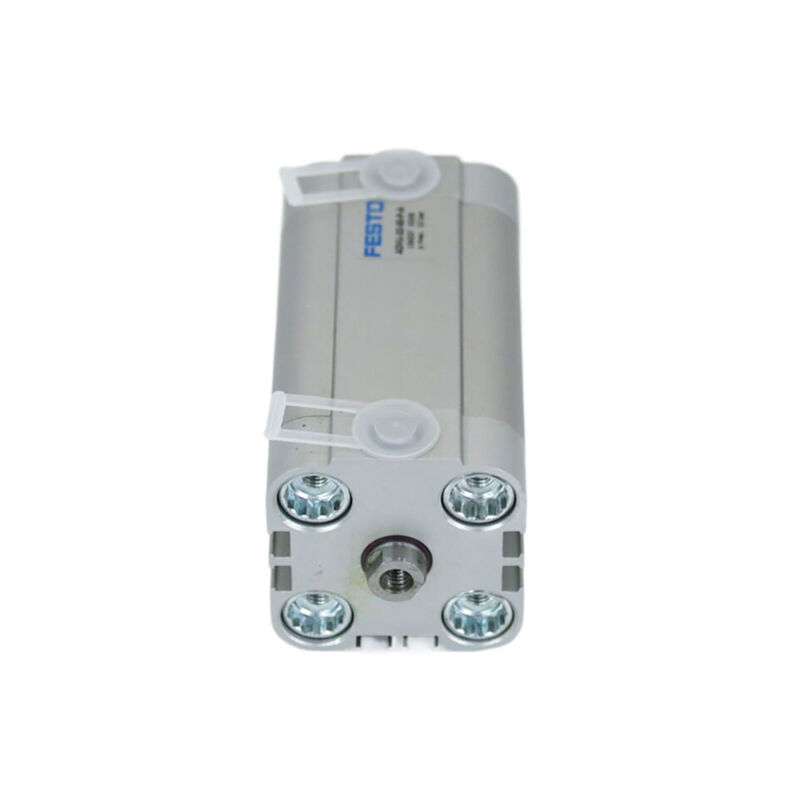

ADVU-40-5-A-P-A FESTO ADVU-40-5-10-15-20-25-30-40-50-A-P-A Compact Cylinder

Product Description:

The ADVU series compact cylinders by FESTO are pneumatic actuators designed with a focus on space efficiency and multifunctionality. They are extensively utilized in automated systems, manufacturing equipment, and various other industrial applications.

• Operation Mode: Double-acting
• Operating Medium: Compressed air meeting ISO 8573-1:2010 standards [7:4:4]
• Operating Pressure: Typically ranges from 0.08 MPa to 1 MPa (0.8 bar to 10 bar)
• Operating Temperature: -20℃ to 80℃
• Corrosion Resistance Class: Class 2, suitable for environments with moderate corrosion stress
• Piston Diameter: Available in a broad range including 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm
• Stroke Length: Standard strokes vary from 5 mm to 80 mm, while optional strokes extend from 1 mm up to 400 mm depending on the piston diameter
• Piston Rod Material: Crafted from high-alloy stainless steel
• Cylinder Barrel and End Cap Material: Made of forged aluminum alloy
• Dynamic Seal Material: Nitrile rubber (NBR) and thermoplastic polyurethane (TPE-U, PU)

The design of the ADVU series emphasizes a slim profile combined with smooth surfaces and features grooves on three sides to support position sensing. Both the front and rear end caps are securely fastened directly to the cylinder barrel, with installation achieved using hexagon socket head screws.

There are multiple derivative types offered for the ADVU series to cater to specific needs. For example, the S1 variant includes an extended piston rod bearing, S2 features a double-ended piston rod, S6 comes equipped with high-temperature resistant seals capable of withstanding up to 120℃, and S20 boasts a double-ended hollow piston rod among others.

When it comes to mounting, these cylinders support various methods. Installation can be done using hexagon socket head screws or by leveraging the grooves on three sides along with a comprehensive range of mounting accessories, thereby accommodating diverse setup requirements.

For position detection, the ADVU series is compatible with proximity sensors that can be embedded directly into the profile grooves. These sensors sit flush with the surface, making replacement simple without needing to adjust the original mounting position.

In terms of performance, the ADVU compact cylinders distinguish themselves from comparable standard cylinders that meet ISO 15552 by reducing the required space by half. Their compact construction conserves installation area while maintaining a robust build quality and excellent resistance to corrosion. Additionally, the cylinders provide stable and reliable operational performance, supported by the use of high-grade materials.

Technical Parameters:

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is an essential component widely used in various industrial automation applications. Known for its robust Aluminium Body, this pneumatic cylinder guarantees durability and lightweight performance, making it ideal for environments requiring reliable and efficient linear motion. The ADVU model, certified by CE, assures compliance with international safety and quality standards, providing users with confidence in its operational excellence.

This double-acting pneumatic cylinder features a piston diameter of 12 mm and a piston rod thread size of M3, designed for precise and consistent motion control. Its oval piston design offers superior protection against torsion and guidance, ensuring smooth and accurate operation even under demanding conditions. The versatile mounting position allows installation in any orientation, making it adaptable to a wide range of machinery and equipment setups.

Typical application occasions for the FESTO ADVU Pneumatic Cylinder include automation production lines, packaging machines, material handling systems, and robotics. Its aluminium body construction provides excellent resistance to corrosion and wear, which is vital in harsh industrial environments such as automotive assembly plants, food processing units, and pharmaceutical manufacturing. Additionally, the pneumatic cylinder is frequently employed in presses, clamps, and positioning devices where consistent and repeatable linear motion is crucial.

In scenarios requiring rapid and reliable actuation, such as conveyor system controls or pick-and-place operations, the ADVU cylinder excels due to its quick response time and high supply ability of up to 5000 pieces per month. Customers can order a minimum quantity of 1 unit, with prices available through negotiation, allowing flexibility for both small-scale and large-scale projects. Packaging is customizable, provided in cartons or as per client requirements, ensuring safe delivery within 1-7 workdays after payment.

Payment terms are accommodating, supporting T/T, Western Union, and PayPal, facilitating smooth transactions globally. The FESTO ADVU Aluminium Body Pneumatic Cylinder is thus a reliable, efficient, and adaptable solution for industries seeking high-quality pneumatic actuation with excellent protection and performance.
