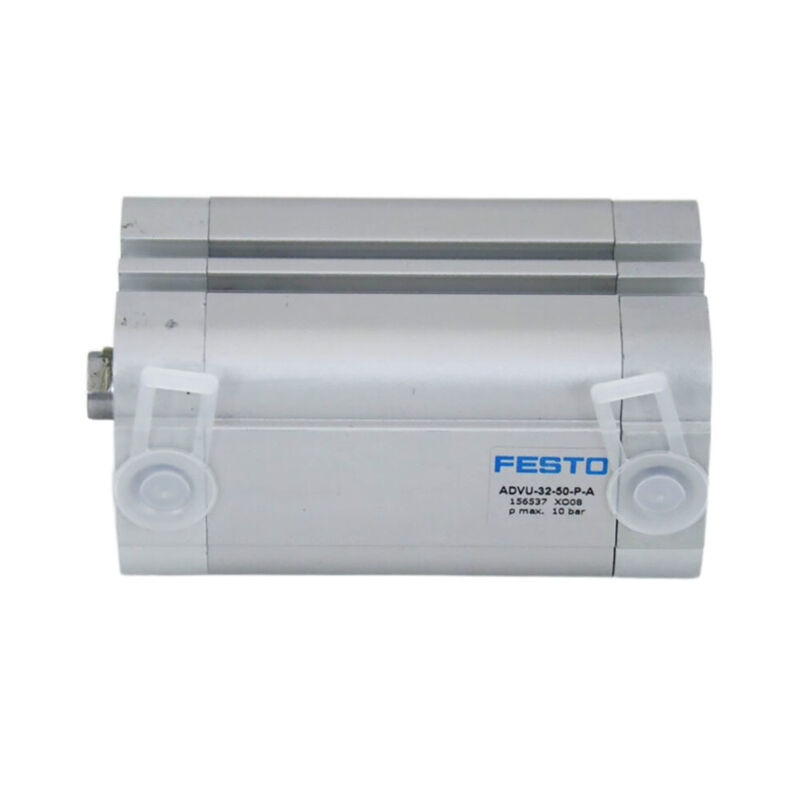

ADVU-32-5-P-A 156530 FESTO ADVU-32-5-10-15-20-30x40-50-60-75-80-90-A-P-A Compact Cylinder

Product Description:

The ADVU series compact cylinders by FESTO are pneumatic actuators designed with a compact, space-saving profile and enhanced versatility. These cylinders find extensive applications across automated systems, manufacturing machinery, and various other industrial sectors.

These cylinders operate in a double-acting mode and utilize compressed air that complies with the ISO 8573-1:2010 [7:4:4] standard as their operating medium. They function effectively within an operating pressure range of 0.08 MPa to 1 MPa (equivalent to 0.8 bar to 10 bar) and tolerate temperatures ranging from -20℃ to 80℃.

Featuring corrosion resistance rated at Class 2, these cylinders are well suited for environments experiencing moderate levels of corrosion stress. The piston diameters are available in a broad selection, including 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm. Standard stroke lengths vary between 5 mm and 80 mm, with optional strokes available from 1 mm up to 400 mm, depending on the piston diameter.

The piston rods are constructed from high-alloy stainless steel, ensuring durability and strength. The cylinder barrels and end caps are made of forged aluminum alloy, while the dynamic seals incorporate materials such as nitrile rubber (NBR) and thermoplastic polyurethane (TPE-U or PU) to provide reliable sealing performance.

The structural design of the ADVU cylinders is characterized by a sleek profile with smooth surfaces and triple-sided grooves designed for position sensing. The front and rear end caps are directly attached to the cylinder barrel by screws, and the entire unit is mounted using hexagon socket head screws for secure installation.

Various derivative models are available to meet specific application needs. For example, the S1 variant features an extended piston rod bearing; S2 is equipped with a double-ended piston rod; S6 models offer seals capable of withstanding high temperatures up to 120℃; and the S20 consists of a double-ended hollow piston rod, among others.

The cylinder supports multiple mounting methods. Installation can be done using hexagon socket head screws or by utilizing the profile grooves on three sides in conjunction with a comprehensive range of mounting accessories, facilitating flexible and convenient installation options.

For position detection, these cylinders are compatible with proximity sensors. Such sensors can be embedded flush within the profile grooves, allowing for easy replacement without the need to alter the original mounting configuration.

Compared to conventional standard cylinders conforming to ISO 15552, the ADVU series reduces space requirements by up to 50%, providing a highly compact design that optimizes installation space. Manufactured with premium materials, these cylinders offer a robust construction, excellent corrosion resistance, and consistently stable, reliable operation performance.

Technical Parameters:

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is a highly versatile and reliable compact cylinder designed to meet a wide range of industrial automation needs. Certified with CE, this double-acting air piston cylinder features a piston diameter of 12 mm and a stroke length of 10 mm, making it an ideal choice for precision applications where space is limited. Its compact design allows it to be easily integrated into various machinery and equipment without compromising performance.

This compact cylinder is particularly well-suited for scenarios requiring efficient linear motion control with minimal footprint. Thanks to its double-acting mode of operation, the FESTO ADVU ensures smooth and consistent pneumatic force in both directions, enhancing operational accuracy and repeatability. The piston rod thread size of M3 provides secure and easy mounting options, further adding to its adaptability in diverse working environments.

In manufacturing settings, the FESTO ADVU air piston cylinder excels in automation processes such as pick-and-place operations, packaging machines, and assembly lines. Its robust construction and CE certification guarantee compliance with international safety standards, making it a trusted component in critical production applications. The ability to mount the cylinder in any position increases its usability across different machinery layouts and orientations.

Additionally, this compact cylinder is widely used in automotive manufacturing, electronics assembly, and food packaging industries, where precise, repeatable motion is essential. With a supply ability of 5000 pieces per month and delivery times ranging from 1 to 7 workdays after payment, customers can rely on timely availability and efficient order fulfillment. Pricing is negotiable, and the product is available with flexible payment options, including T/T, Western Union, and Paypal.

Packaging is handled carefully in cartons or as per client requirements to ensure safe transport and delivery. The minimum order quantity is just one piece, making it convenient for both small-scale and large-scale operations to procure this high-quality FESTO ADVU compact cylinder. Overall, this air piston cylinder is an excellent solution for industries seeking dependable pneumatic actuation with compact dimensions and versatile application scenarios.
