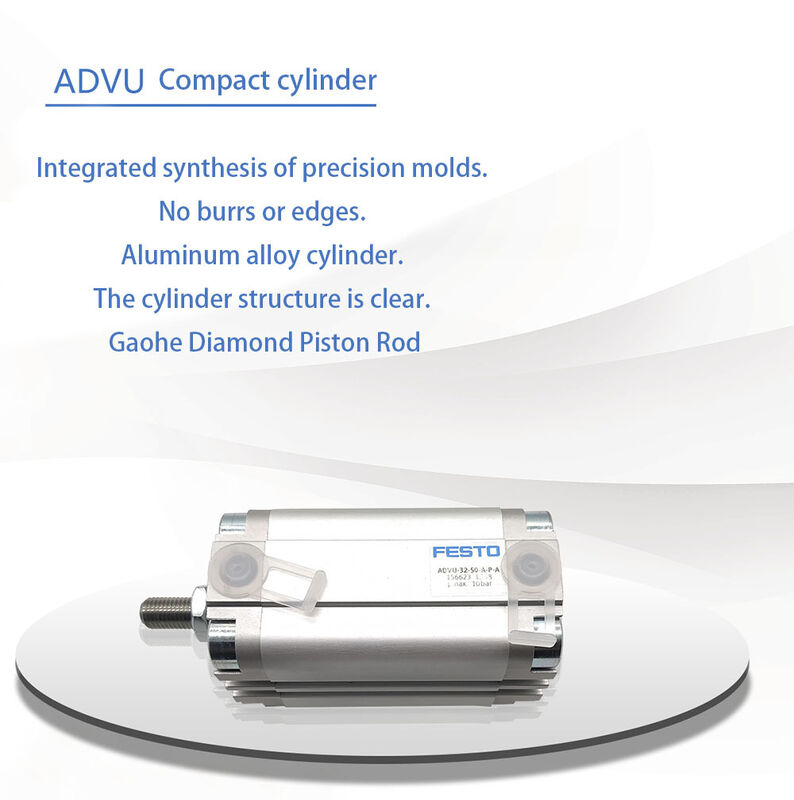

ADVU-20-5-A-P-A 156600 Cylinder ADVU-20-5-15-15-20-25-30-40-50-P-A FESTO Compact cylinder

Product Description:

The ADVU series compact cylinders by FESTO are pneumatic actuators designed with a space-saving profile and versatile functionalities. These cylinders are extensively utilized in automated systems, manufacturing equipment, and various other industrial applications due to their efficient design and reliable performance.

• Operation Mode: Double-acting
• Operating Medium: Compressed air meeting ISO 8573-1:2010 standard [7:4:4]
• Operating Pressure: Generally ranges from 0.08 MPa to 1 MPa (0.8 bar to 10 bar)
• Operating Temperature: Suitable for environments between -20℃ and 80℃
• Corrosion Resistance Class: Class 2, ideal for moderate corrosion stress conditions
• Piston Diameter: Available in multiple sizes including 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm
• Stroke Length: Standard strokes span from 5 mm to 80 mm, with optional strokes available from 1 mm up to 400 mm depending on piston diameter
• Piston Rod Material: Crafted from high-alloy stainless steel
• Cylinder Barrel and End Cap Material: Made from forged aluminum alloy
• Dynamic Seal Material: Utilizes nitrile rubber (NBR) and thermoplastic polyurethane (TPE-U/PU)

The structural design of the ADVU series features a sleek and smooth profile with grooves on three sides that facilitate position sensing. Both the front and rear end caps are directly screwed onto the cylinder barrel, and installation is secured using hexagon socket head screws.

A wide range of derivative types enhances the versatility of these cylinders. For instance, the S1 variant includes an extended piston rod bearing; S2 features a double-ended piston rod; S6 is equipped with high-temperature resistant seals capable of withstanding temperatures up to 120℃; and S20 has a double-ended hollow piston rod, among others.

Multiple mounting options are available to accommodate diverse installation needs. Cylinders can be mounted using hexagon socket head screws or by using the grooves on the three sides in conjunction with a full suite of compatible mounting components.

For position detection, the cylinders are compatible with proximity sensors that fit neatly into the profile grooves and sit flush with the surface. This design allows for easy sensor replacement without modifying the existing mounting position.

In terms of performance, the ADVU series cylinders are engineered to occupy 50% less installation space compared to standard cylinders conforming to ISO 15552. Constructed from premium materials, these cylinders offer a robust build, excellent corrosion resistance, and ensure stable and reliable operation under varied conditions.

Technical Parameters:

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is an advanced air piston cylinder designed to meet the rigorous demands of various industrial applications. With its aluminium body construction, this pneumatic cylinder offers exceptional durability and lightweight performance, making it ideal for environments where efficiency and reliability are paramount. Certified with CE standards, the ADVU model ensures compliance with international safety and quality regulations, providing users with confidence in its operation.

This double-acting pneumatic cylinder is engineered with a piston diameter of 12 mm (equivalent diameter) and a stroke length of 10 mm, allowing precise and controlled linear motion in numerous settings. Its unique oval piston design provides protection against torsion and guides the piston effectively, ensuring smooth and stable operation even under high stress. The versatile mounting position capability means the cylinder can be installed in any orientation, adapting seamlessly to different machinery layouts and automation systems.

The FESTO ADVU air piston cylinder is widely used in automation, packaging, assembly, and material handling industries. Its compact aluminium body makes it suitable for applications where space is limited but high performance is required. Whether it’s driving mechanical arms, actuating valves, or facilitating conveyor systems, this pneumatic cylinder delivers consistent power and speed. The product is supplied with flexible packaging options, including carton packaging or customized solutions as per client requirements, ensuring safe delivery and easy handling.

With a minimum order quantity of just one piece and a supply ability of 5000 pieces per month, the FESTO ADVU pneumatic cylinder can efficiently cater to both small-scale projects and large industrial demands. The delivery time ranges from 1 to 7 workdays after payment, and payment can be conveniently made via T/T, Western Union, or PayPal, enhancing the purchasing experience. Pricing is negotiable, allowing for tailored solutions to fit various budget constraints.

In summary, the FESTO ADVU aluminium body pneumatic cylinder is a reliable, versatile, and high-performance air piston cylinder. It is perfectly suited for a broad range of application occasions and scenarios, including automation equipment, robotics, packaging machinery, and other industrial processes that require precise and efficient pneumatic actuation.
