ADVU-16-5-P-A 156507 156511 156599 FESTO Compact Cylinder ADVU-16-40-30-25-20-15-10-5-A-P-A

Product Description:

The ADVU series compact cylinders from FESTO are pneumatic actuators designed with a space-saving profile and multifunctional capabilities. These cylinders are extensively utilized in automated systems, manufacturing machinery, and various other industrial applications.

• Operation Mode: Double-acting
• Operating Medium: Compressed air compliant with ISO 8573-1:2010 [7:4:4]
• Operating Pressure: Generally from 0.08 MPa to 1 MPa (0.8 bar to 10 bar)
• Operating Temperature: Ranges between -20℃ and 80℃
• Corrosion Resistance Class: Class 2, suitable for environments experiencing moderate corrosion stress
• Piston Diameter: Available in multiple sizes, including 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 125 mm
• Stroke: Standard strokes range from 5 mm to 80 mm, with optional strokes available from 1 mm up to 400 mm. Applicable stroke length varies depending on the piston diameter
• Piston Rod Material: Made from high-alloy stainless steel
• Cylinder Barrel and End Cap Material: Manufactured using forged aluminum alloy
• Dynamic Seal Material: Composed of nitrile rubber (NBR) and thermoplastic polyurethane (TPE-U/PU)

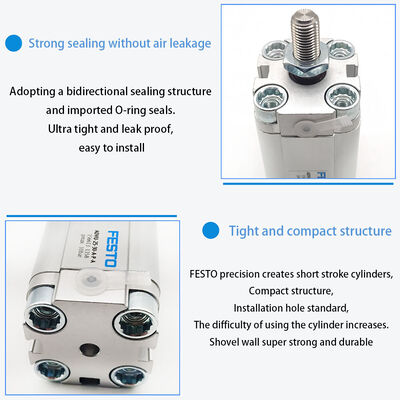

The ADVU cylinders feature a sleek structural design characterized by smooth surfaces and grooves on three sides that facilitate position sensing. The front and rear end caps are securely attached to the cylinder barrel using screws, and installation is performed with hexagon socket head screws for durability and ease of mounting.

Various derivative models are available to meet specific requirements. For example, the S1 variant includes an extended piston rod bearing; S2 features a double-ended piston rod; S6 is equipped with high-temperature resistant seals capable of withstanding temperatures up to 120℃; and S20 comes with a double-ended hollow piston rod.

Multiple mounting options are supported to accommodate diverse installation needs. The cylinder can be mounted using hexagon socket head screws or by utilizing the grooves on three sides along with a comprehensive range of mounting components.

For position detection, the cylinders are compatible with proximity sensors that can be embedded flush into the profile grooves. This design allows for easy sensor replacement without modifying the original mounting arrangement.

Compared to standard cylinders that comply with ISO 15552, the ADVU series reduces the required installation space by approximately 50%. This compact design, combined with high-quality materials, results in a robust structure exhibiting excellent corrosion resistance and delivering stable, reliable performance under various operating conditions.

Technical Parameters:

Applications:

The FESTO ADVU Piston Pneumatic Cylinder is a high-quality air piston cylinder designed to meet a wide range of industrial automation needs. Featuring a robust aluminium body, this compact cylinder ensures durability and lightweight performance, making it ideal for various applications where space and weight are critical factors. With its double-acting mode of operation, the ADVU model delivers reliable and efficient motion control in both extension and retraction strokes.

This compact air piston cylinder is certified with CE, guaranteeing compliance with international safety and quality standards. Its oval piston design provides excellent protection against torsion and guides the piston movement accurately, which enhances operational stability and extends the service life of the product. The piston rod thread is M3, and it supports a stroke length of 10 mm, making it suitable for precise short-stroke applications in automation systems.

The versatility of the FESTO ADVU cylinder allows it to be mounted in any position, providing flexible installation options for complex machinery setups. Its compact size and aluminium body make it a preferred choice for industries such as automotive manufacturing, packaging, electronics assembly, and food processing, where compact and efficient pneumatic components are essential.

Due to its high supply ability of 5000 pieces per month and a minimum order quantity of just one, the FESTO ADVU cylinder is accessible both for small-scale projects and large production lines. The packaging is customizable, typically shipped in cartons or as per clients’ specific requirements, ensuring safe transportation and handling. Delivery is prompt, usually within 1-7 workdays after payment, with flexible payment methods including T/T, Western Union, and Paypal.

In summary, the FESTO ADVU piston pneumatic cylinder is the optimal choice for applications requiring a reliable, compact cylinder with an aluminium body and precise air piston cylinder performance. Its CE certification, flexible mounting, and robust design make it suitable for a broad range of pneumatic automation scenarios, from industrial machinery to precision equipment.
