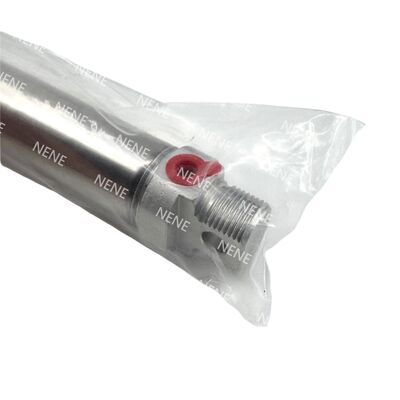

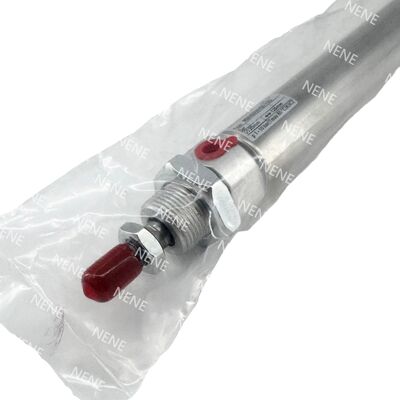

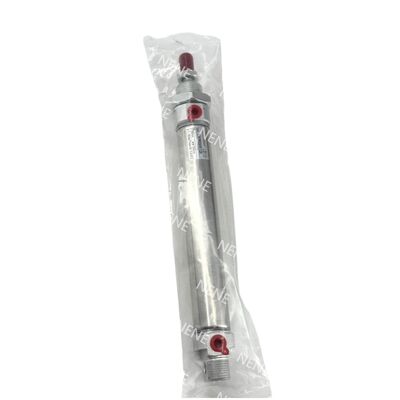

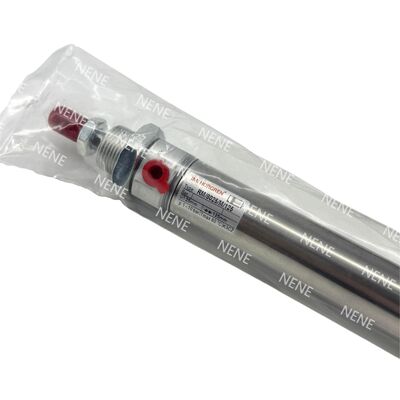

Product Description:
The RM/28000/M series consists of compact, single-acting Roundline cylinders featuring a spring return mechanism. These cylinders come equipped with a magnetic piston as a standard feature, enhancing their functionality and versatility.
Constructed with a stainless-steel tube and clear anodized aluminum end caps, the design ensures excellent corrosion resistance and high durability. This combination of materials provides a robust structure suitable for demanding environments.
Additionally, the RM/28000/M cylinders are designed to comply with ISO 6432 standards, making them highly compatible and compact. Their small size and reliable performance make them perfect for applications that require precise pneumatic positioning and short-stroke automation within limited spaces.
Features:
The cylinder features a compact ISO 6432 form factor, ensuring seamless integration with standard fittings. Its design allows for easy installation in various applications where space is limited.
Constructed from corrosion-resistant materials, this cylinder is well-suited for use in harsh and demanding environments. It maintains reliable performance even under challenging conditions.
Equipped with a magnetic piston, the cylinder provides simplified limit sensing and enhances automation feedback. This feature improves operational efficiency and monitoring accuracy.
The robust mechanical construction includes double-crimped end caps, which contribute to the durability and longevity of the cylinder. This solid build guarantees dependable performance over time.
Technical Parameters:
| Item |
Specification |
| Bore (mm) |
10 / 12 / 16 / 20 / 25 |
| Standard strokes (mm) |
10, 25, 50 |
| Maximum stroke (mm) |
50 |
| Piston rod Ø (mm) |
4 (Ø10), 6 (Ø12, Ø16), 8 (Ø20), 10 (Ø25) |
| Port size |
M5 (Ø10/12/16), G1/8 (Ø20/25) |
| Medium |
Compressed air, filtered, lubricated or non-lubricated |
| Operating pressure |
2 to 10 bar (29 to 145 psi) |
| Operating temperature |
-10°C to +80°C (14°F to 176°F) |
| Operation |
Single-acting, spring return, magnetic piston |
| Cushioning |
Buffer cushioning |
| Barrel material |
Stainless steel |
| End cover material |
Clear anodised aluminium alloy |
| Piston rod material |
Stainless steel |
| Buffer material |
Polyurethane |
| Seals |
Nitrile rubber (NBR) |
| End cap design |
Double crimped high-strength end caps |
| Standard accessories |
Nose mounting nut, piston rod locknut |
| Optional accessories |
Reed switch with integral cable, switch mounting brackets, straight and elbow fittings, mounting hardware |
| Theoretical thrust @ 6 bar (N) |
Ø10: 40.7 ; Ø12: 57.7 ; Ø16: 102 ; Ø20: 165 ; Ø25: 260 |
| Return spring force F1 @ 6 bar (N) |
Ø10: 3.7 ; Ø12: 4.8 ; Ø16: 10.5 ; Ø20: 16.1 ; Ø25: 21.6 |
| Weight & dimensions |
See full datasheet dimensions table |
| Variants |
Central rear port, flat rear cover, multiple mounting options |
| Service kits |
Not available |
| Load / deflection data |
Refer to load and deflection charts in datasheet |
Applications:
Automated assembly and indexing processes benefit greatly from the use of small-stroke actuation. This technology enhances precision and efficiency in tasks that demand short, controlled movements.
In the handling of electronic components, pick-and-place operations often require support for limited travel distances. Utilizing compact actuation solutions ensures accurate positioning and swift handling in these delicate procedures.
Packaging applications and machine tending frequently demand compact and repeatable motion. Employing devices designed for consistent performance in confined spaces helps maintain productivity and reliability.
Moreover, applications that require integrated position sensing gain significant advantages from advanced actuation systems. The incorporation of precise feedback mechanisms allows for better control and improved overall system accuracy.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please ensure that you have the model number, specifications, and operating conditions ready to facilitate prompt assistance.
We offer comprehensive product support including installation guidance, maintenance tips, troubleshooting advice, and replacement parts information. Our technical team is equipped to help you optimize the performance and longevity of your pneumatic cylinder.
For service and repair, always use genuine parts to maintain product integrity and warranty coverage. Regular inspection and lubrication are recommended to prevent wear and ensure smooth operation.
If you encounter any issues with your Piston Pneumatic Cylinder, consult the user manual for common troubleshooting steps. Should you require further assistance, our support resources are available to provide detailed technical solutions tailored to your application needs.
We are committed to delivering high-quality support and services to maximize the value and efficiency of your pneumatic systems.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure safety and protection during transit. Each cylinder is wrapped in anti-corrosive material and placed in a sturdy, custom-designed box to prevent any damage from impacts or moisture. The packaging is clearly labeled with product specifications and handling instructions to facilitate easy identification and proper care.
For shipping, we use reliable carriers with tracking options to guarantee timely delivery. The cylinders are securely palletized for bulk orders to minimize movement and ensure stability throughout the shipping process. We also offer expedited shipping options upon request to meet urgent project deadlines.
Upon receipt, please inspect the packaging for any signs of damage and report any issues immediately to our customer service team. This ensures we can promptly address any concerns and maintain the highest standard of product quality and customer satisfaction.
