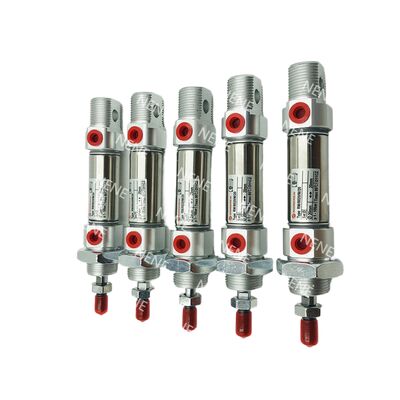

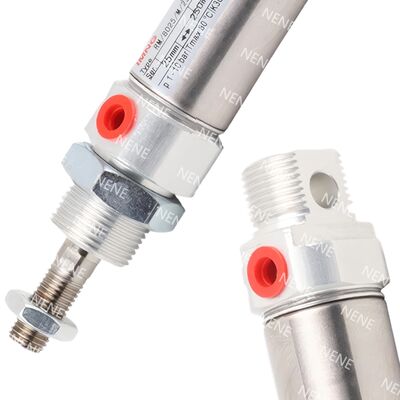

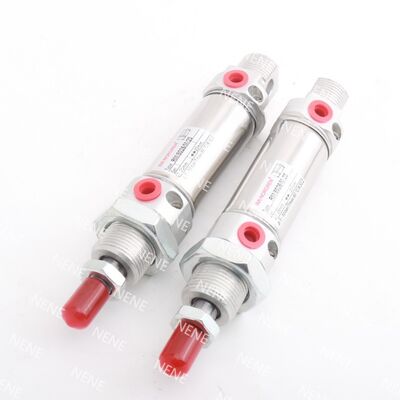

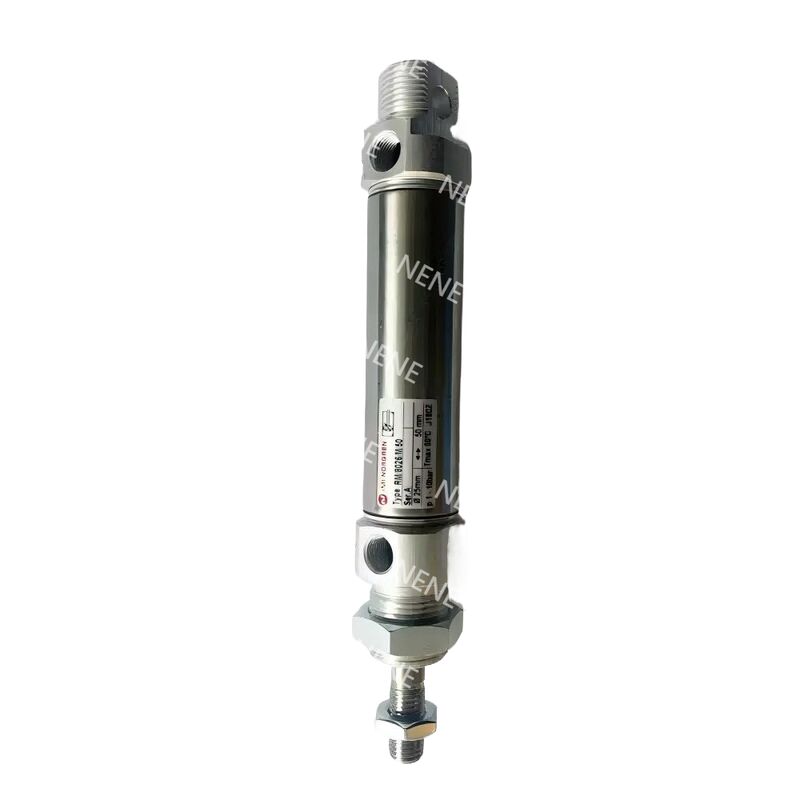

RM/28010/M/25 IMI NORGREN Magnetic Compact Cylinder Ø10mm 25mm Stroke Corrosion Resistant Reed Switch Friendly

Product Description:

The RM/28000/M series features compact, single-acting Roundline cylinders that utilize a spring return mechanism. Each cylinder is equipped with a magnetic piston as a standard component, enhancing their functionality and reliability.

Constructed with a stainless-steel tube and clear anodised aluminium end caps, these cylinders offer excellent corrosion resistance and high mechanical strength. Their design ensures durability and long-lasting performance even in demanding environments.

Additionally, the RM/28000/M range is fully compatible with the ISO 6432 standard, making them an ideal choice for applications where space is limited. Their compact form factor is perfectly suited for pneumatic positioning tasks and short-stroke automation processes.

Features:

The compact design follows the ISO 6432 form factor, allowing for seamless integration with standard fittings. This makes installation straightforward and hassle-free in various applications.

Constructed from corrosion-resistant materials, this product is engineered to withstand harsh and demanding environments, ensuring long-lasting performance and durability.

Equipped with a magnetic piston, it enables easy limit sensing and provides reliable automation feedback, enhancing operational efficiency and precision.

The sturdy mechanical build includes double-crimped end caps, contributing to the overall robustness and reliability of the device under rigorous conditions.

Technical Parameters:

Applications:

Automated assembly and precise indexing are made possible through small-stroke actuation. This technology enables efficient and accurate movement in compact spaces, enhancing production workflows.

Handling electronic components benefits greatly from pick-and-place mechanisms designed for short travel distances. These systems ensure delicate parts are managed with care and positioned accurately during manufacturing.

In packaging and machine tending operations, there is often a need for compact and repeatable motion. Solutions that deliver consistent performance in limited spaces help maintain high throughput and reliability.

Applications that demand integrated position sensing are well-served by these advanced actuation and handling technologies. By incorporating sensing capabilities, systems can achieve precise control and monitoring throughout their operation.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. For technical support, please refer to the detailed user manual provided with the product, which includes installation instructions, operating guidelines, and maintenance tips to ensure optimal functionality.

If you encounter any issues during installation or operation, verify that the cylinder is installed according to the specified orientation and that all connections are secure and leak-free. Regular inspection and lubrication as outlined in the manual will help prevent premature wear and extend the product’s lifespan.

For service and maintenance, use only genuine replacement parts recommended by the manufacturer to maintain performance standards and safety compliance. Our technical team is available to assist with troubleshooting, performance optimization, and customization requests to meet your specific application needs.

We recommend keeping a maintenance log to track service intervals and any repairs conducted. Proper handling and adherence to the operating pressure and temperature limits specified will ensure safe and effective use of the Piston Pneumatic Cylinder.

For detailed technical documentation, FAQs, and software tools related to our Piston Pneumatic Cylinder, please visit our support portal. Our commitment is to provide comprehensive support and services to maximize the value and reliability of your pneumatic systems.

Packing and Shipping:

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static bubble wrap and placed inside a sturdy, custom-fitted cardboard box to prevent movement and damage. Additional padding materials are used to safeguard delicate components and surfaces from scratches and impacts.

For shipping, we use reliable carriers that provide tracking and insurance options to guarantee safe and timely delivery. The packaging is clearly labeled with product information, handling instructions, and orientation markings to facilitate proper handling throughout the shipping process. Whether shipping domestically or internationally, we take every precaution to ensure your Piston Pneumatic Cylinder arrives in perfect working condition.
