Product Description:

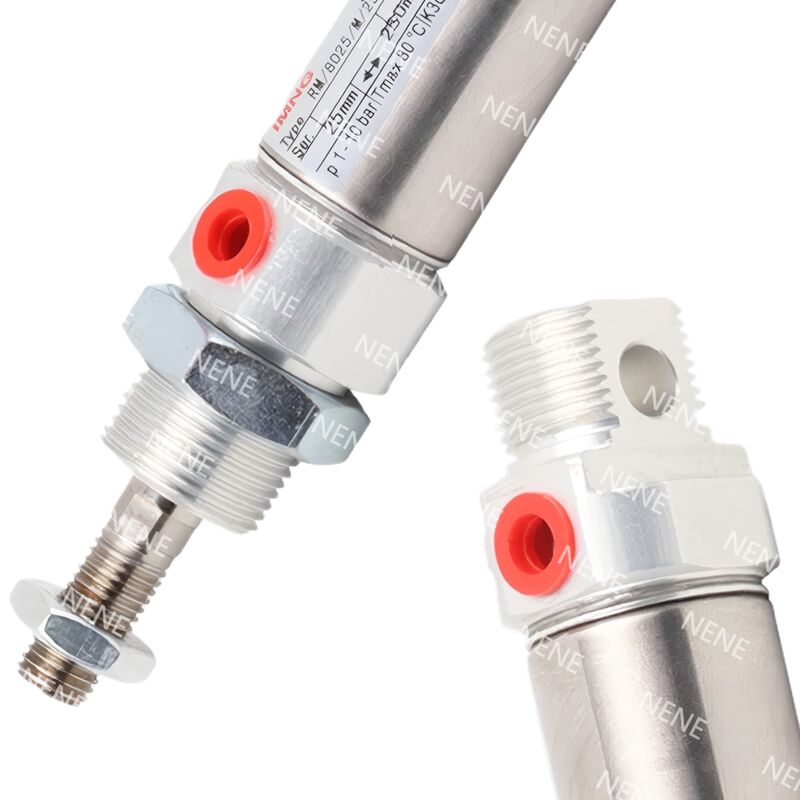

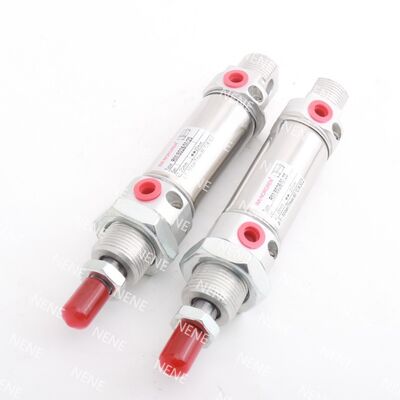

The RM/28000/M series consists of compact, single-acting Roundline cylinders that feature a spring return mechanism. Each cylinder is equipped with a magnetic piston as a standard component, ensuring reliable performance in various applications.
Constructed with a stainless-steel tube and clear anodised aluminium end caps, these cylinders offer excellent corrosion resistance and durability. Their robust design provides high strength, making them suitable for demanding industrial environments.
Additionally, the RM/28000/M range complies with the ISO 6432 standard, guaranteeing compatibility with other compact pneumatic components. This makes them particularly well-suited for applications requiring limited installation space, precise pneumatic positioning, and short-stroke automation tasks.
Features:
The compact ISO 6432 form factor allows for seamless integration with standard fittings, making installation straightforward and efficient.
Constructed from corrosion-resistant materials, this product is designed to withstand harsh and challenging environmental conditions, ensuring long-lasting performance.
The magnetic piston feature enhances functionality by simplifying limit sensing and providing reliable automation feedback.
With a robust mechanical design that includes double-crimped end caps, the construction ensures durability and secure assembly for demanding applications.
Technical Parameters:
| Item |
Specification |
| Bore (mm) |
10 / 12 / 16 / 20 / 25 |
| Standard strokes (mm) |
10, 25, 50 |
| Maximum stroke (mm) |
50 |
| Piston rod Ø (mm) |
4 (Ø10), 6 (Ø12, Ø16), 8 (Ø20), 10 (Ø25) |
| Port size |
M5 (Ø10/12/16), G1/8 (Ø20/25) |
| Medium |
Compressed air, filtered, lubricated or non-lubricated |
| Operating pressure |
2 to 10 bar (29 to 145 psi) |
| Operating temperature |
-10°C to +80°C (14°F to 176°F) |
| Operation |
Single-acting, spring return, magnetic piston |
| Cushioning |
Buffer cushioning |
| Barrel material |
Stainless steel |
| End cover material |
Clear anodised aluminium alloy |
| Piston rod material |
Stainless steel |
| Buffer material |
Polyurethane |
| Seals |
Nitrile rubber (NBR) |
| End cap design |
Double crimped high-strength end caps |
| Standard accessories |
Nose mounting nut, piston rod locknut |
| Optional accessories |
Reed switch with integral cable, switch mounting brackets, straight and elbow fittings, mounting hardware |
| Theoretical thrust @ 6 bar (N) |
Ø10: 40.7 ; Ø12: 57.7 ; Ø16: 102 ; Ø20: 165 ; Ø25: 260 |
| Return spring force F1 @ 6 bar (N) |
Ø10: 3.7 ; Ø12: 4.8 ; Ø16: 10.5 ; Ø20: 16.1 ; Ø25: 21.6 |
| Weight & dimensions |
See full datasheet dimensions table |
| Variants |
Central rear port, flat rear cover, multiple mounting options |
| Service kits |
Not available |
| Load / deflection data |
Refer to load and deflection charts in datasheet |
Applications:
Automated assembly and indexing often involve precise movements with limited stroke lengths. Small-stroke actuation is essential in these processes to ensure high accuracy and efficiency.
Handling electronic components and performing pick-and-place tasks demand support for short travel distances. These operations benefit from reliable and compact actuation mechanisms that can move components swiftly and accurately.
In packaging and machine tending applications, there is a strong need for compact and repeatable motion. Consistent performance in confined spaces is crucial for maintaining productivity and quality.
Many applications require integrated position sensing to monitor and control movement precisely. Implementing position feedback enables improved accuracy and repeatability in automated systems.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual for installation guidelines, maintenance procedures, and troubleshooting tips. Ensure that the cylinder is operated within the specified pressure and temperature ranges to avoid damage and ensure optimal functionality.
Regular inspection of seals, piston rods, and cylinder tubes is recommended to maintain performance and extend the product’s lifespan. Lubrication should be applied as specified in the maintenance instructions to reduce wear and prevent corrosion.
If you encounter any operational issues, verify that the pneumatic connections are secure and that the air supply is clean and dry. For more complex problems, detailed troubleshooting charts are available in the documentation to assist with identifying and resolving common faults.
We also offer professional repair services and replacement parts to support the ongoing use of your Piston Pneumatic Cylinder. Our technical team is dedicated to ensuring your equipment operates smoothly and efficiently throughout its service life.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure it arrives in perfect condition. Each cylinder is securely wrapped with protective materials to prevent damage during transit. The product is then placed in a sturdy, custom-fitted box that provides additional cushioning and support.
For shipping, we use reliable carriers and provide tracking information to keep you updated on your order status. We take every precaution to guarantee timely and safe delivery, whether shipping domestically or internationally. If you have any special packaging or shipping requirements, please contact our customer service team for assistance.
