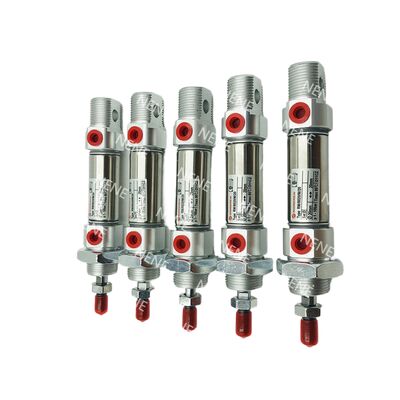

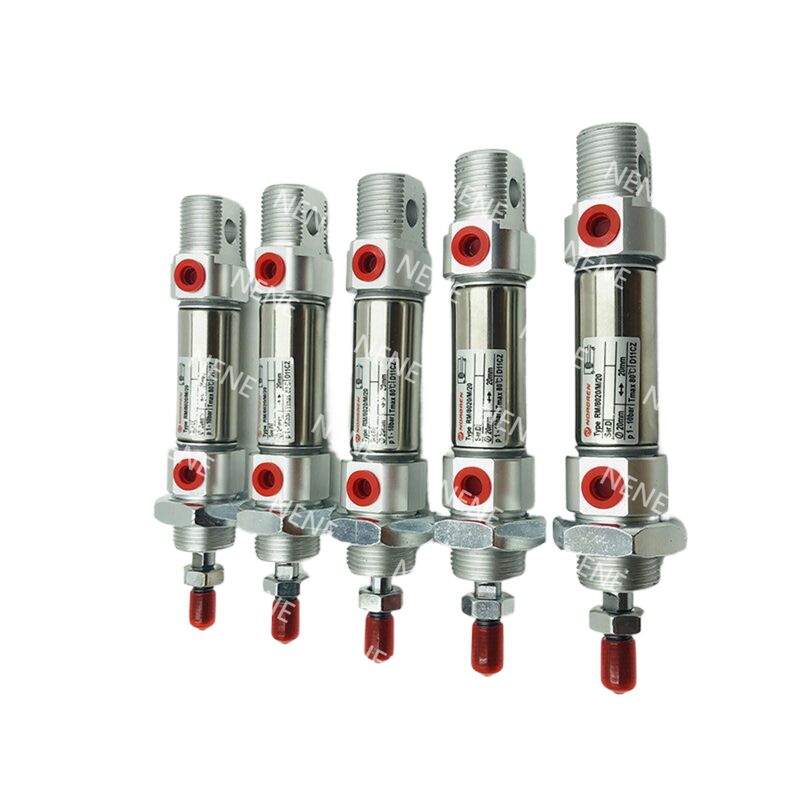

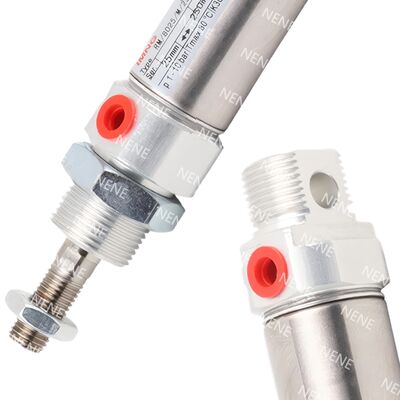

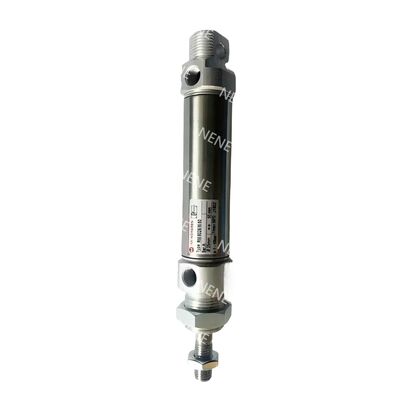

RM/28010/160 Heavy Duty Short Profile Ø10mm 160mm Stroke IMI NORGREN Roundline Cylinder Reed Switch Compatible

Product Description:

The RM/28000/M series consists of compact, single-acting Roundline cylinders that feature a spring return mechanism. These cylinders come equipped with a magnetic piston as a standard feature, enhancing their functionality and reliability.

Constructed with a stainless-steel tube and clear anodised aluminium end caps, these cylinders offer excellent corrosion resistance and high structural strength. Their robust design ensures durability in various working environments.

Additionally, the RM/28000/M range is compatible with the ISO 6432 standard, making them perfectly suited for applications that require compact solutions. They are ideal for pneumatic positioning tasks and short-stroke automation, especially in spaces where installation room is limited.

Features:

The compact form factor of ISO 6432 allows for seamless integration with standard fittings, making installation straightforward and efficient. Its small size is ideal for applications where space is limited, ensuring compatibility without compromising performance.

Constructed from corrosion-resistant materials, this product is designed to withstand harsh and demanding environments. It maintains durability and reliability even in conditions that typically cause wear and degradation, ensuring long-lasting operation.

The magnetic piston feature enhances functionality by simplifying limit sensing and providing precise automation feedback. This magnetic element allows for accurate position detection, improving control and efficiency in automated systems.

Featuring a robust mechanical design, the cylinder is equipped with double-crimped end caps that offer enhanced strength and durability. This construction ensures the unit can endure high stress and maintain structural integrity throughout its lifecycle.

Technical Parameters:

Applications:

Automated assembly processes and indexing operations often rely on small-stroke actuation to achieve precise movement. This method allows for efficient and accurate positioning in various manufacturing tasks.

In the handling of electronic components, pick-and-place systems benefit from short travel capabilities. These systems support quick and reliable placement of parts within limited spaces, enhancing production speed and accuracy.

Packaging applications and machine tending tasks commonly demand compact and repeatable motion. Such movements ensure consistent operation and contribute to streamlined automation workflows.

Additionally, applications that require integrated position sensing are supported to provide enhanced control and feedback. This integration helps in maintaining accuracy and improving overall system performance.

Support and Services:

Our Piston Pneumatic Cylinder product is designed to provide reliable and efficient linear motion for a wide range of industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and maintenance tips to ensure optimal performance and longevity of the cylinder.

We offer comprehensive services including product selection assistance, custom configuration options, and on-site support to meet your specific operational requirements. Replacement parts and upgrade kits are readily available to minimize downtime and maintain productivity.

To maximize the lifespan of your piston pneumatic cylinder, we recommend regular inspection and lubrication as outlined in the user manual. Our support team can provide detailed documentation and training resources to help your maintenance staff handle routine care and repair effectively.

Whether you need help with integrating the cylinder into your existing system or require technical advice on system optimization, our dedicated support service is committed to delivering timely and accurate solutions tailored to your needs.

Packing and Shipping:

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped in anti-corrosive material and placed inside a sturdy, custom-fitted box to prevent movement and damage. Additional cushioning materials such as foam inserts or bubble wrap are used to safeguard delicate components.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. The packaging is clearly labeled with handling instructions and product information to facilitate smooth processing. Whether shipping domestically or internationally, we ensure that the Piston Pneumatic Cylinder arrives in perfect condition, ready for immediate use.
