Product Description:

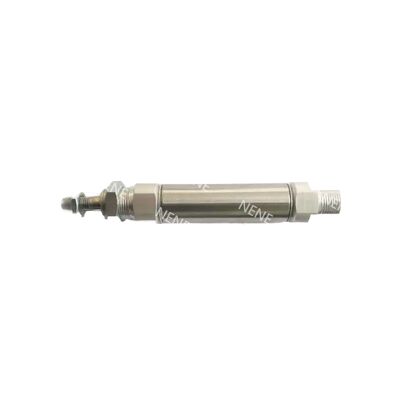

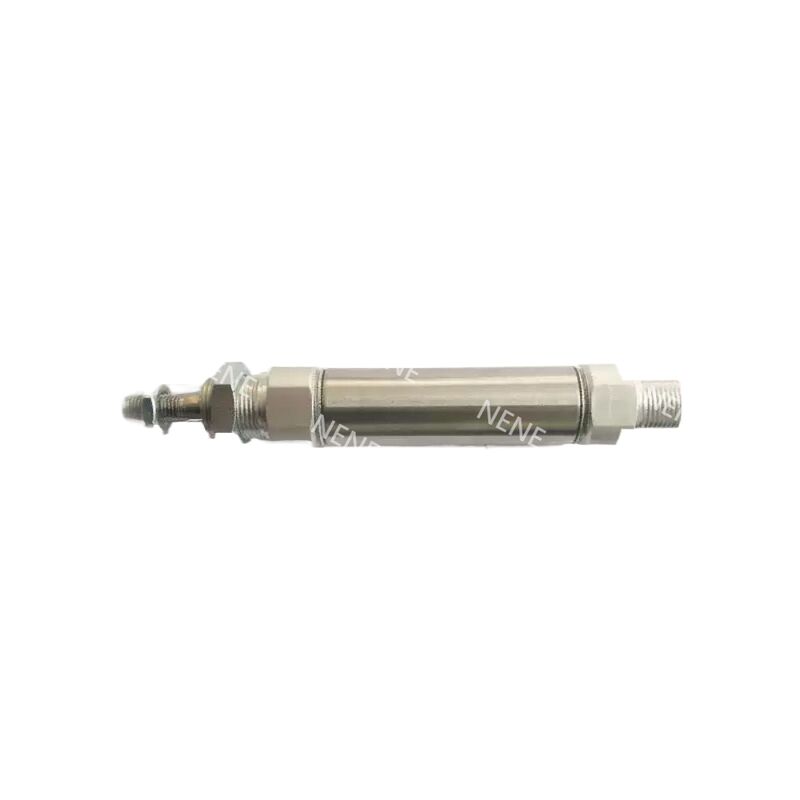

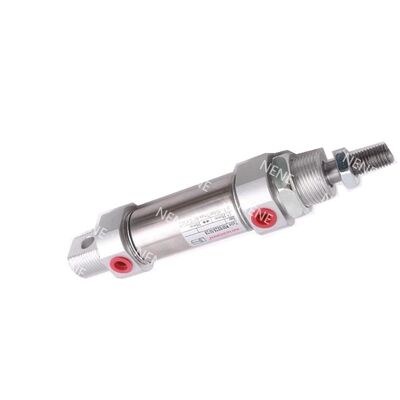

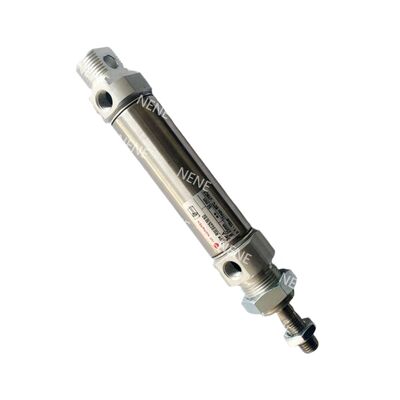

The RM/28000/M series consists of compact, single-acting Roundline cylinders that feature a spring return mechanism and come equipped with a magnetic piston as a standard feature. These cylinders are designed to offer reliable performance in a compact form factor.
Constructed with a stainless steel tube and clear anodized aluminum end caps, the cylinders provide excellent corrosion resistance and enhanced durability. This combination ensures high strength and long-lasting operation even in challenging environments.
Additionally, the RM/28000/M range is fully compatible with the ISO 6432 standard, making them an ideal choice for applications requiring compact pneumatic positioning and short-stroke automation in confined spaces.
Features:
The device features a compact ISO 6432 form factor, allowing for seamless integration with standard fittings. This design ensures easy installation and compatibility across various applications.
Constructed from corrosion-resistant materials, it is well-suited for use in harsh and demanding environments. This durability enhances the longevity and reliability of the component under challenging conditions.
Equipped with a magnetic piston, the device facilitates straightforward limit sensing and automation feedback. This feature improves operational efficiency by enabling accurate position detection.
Its robust mechanical construction includes double-crimped end caps, providing enhanced strength and secure sealing. This design contributes to the overall toughness and reliable performance of the device.
Technical Parameters:
| Item |
Specification |
| Bore (mm) |
10 / 12 / 16 / 20 / 25 |
| Standard strokes (mm) |
10, 25, 50 |
| Maximum stroke (mm) |
50 |
| Piston rod Ø (mm) |
4 (Ø10), 6 (Ø12, Ø16), 8 (Ø20), 10 (Ø25) |
| Port size |
M5 (Ø10/12/16), G1/8 (Ø20/25) |
| Medium |
Compressed air, filtered, lubricated or non-lubricated |
| Operating pressure |
2 to 10 bar (29 to 145 psi) |
| Operating temperature |
-10°C to +80°C (14°F to 176°F) |
| Operation |
Single-acting, spring return, magnetic piston |
| Cushioning |
Buffer cushioning |
| Barrel material |
Stainless steel |
| End cover material |
Clear anodised aluminium alloy |
| Piston rod material |
Stainless steel |
| Buffer material |
Polyurethane |
| Seals |
Nitrile rubber (NBR) |
| End cap design |
Double crimped high-strength end caps |
| Standard accessories |
Nose mounting nut, piston rod locknut |
| Optional accessories |
Reed switch with integral cable, switch mounting brackets, straight and elbow fittings, mounting hardware |
| Theoretical thrust @ 6 bar (N) |
Ø10: 40.7 ; Ø12: 57.7 ; Ø16: 102 ; Ø20: 165 ; Ø25: 260 |
| Return spring force F1 @ 6 bar (N) |
Ø10: 3.7 ; Ø12: 4.8 ; Ø16: 10.5 ; Ø20: 16.1 ; Ø25: 21.6 |
| Weight & dimensions |
See full datasheet dimensions table |
| Variants |
Central rear port, flat rear cover, multiple mounting options |
| Service kits |
Not available |
| Load / deflection data |
Refer to load and deflection charts in datasheet |
Applications:
Automated assembly and indexing processes benefit significantly from small-stroke actuation, enabling precise and efficient movements within a compact range.
In the field of electronic component handling, pick-and-place operations often demand short travel distances to maintain speed and accuracy. These tasks rely on specialized actuation techniques that support quick and reliable positioning.
Packaging and machine tending applications require compact and repeatable motion. The ability to deliver consistent performance in a limited space is crucial for optimizing production workflows and ensuring product quality.
Furthermore, applications that necessitate integrated position sensing can achieve enhanced control and feedback. This integration supports improved accuracy and reliability in various automated processes.
Support and Services:
Our Piston Pneumatic Cylinder is designed for high performance and durability in various industrial applications. For technical support, please ensure you have the model number, specifications, and details of the issue ready to help us provide you with accurate assistance.
We offer comprehensive services including installation guidance, maintenance tips, troubleshooting, and repair support to maximize the efficiency and lifespan of your pneumatic cylinder.
Regular maintenance is recommended to prevent wear and ensure optimal operation. This includes checking for air leaks, inspecting seals and rods for damage, and lubricating moving parts as specified in the product manual.
For any technical inquiries or service requests, our support team is equipped to assist with diagnostics, replacement parts, and warranty information to keep your pneumatic systems running smoothly.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective foam sleeve to prevent scratches and minor impacts. It is then placed in a custom-fitted cardboard box with additional cushioning materials to absorb shocks. The packaging is sealed securely and labeled with handling instructions to ensure safe delivery.
For shipping, we use reliable carriers with tracking options to provide real-time updates on your order status. Depending on the destination, shipping methods may include standard ground transport, expedited air freight, or express courier services. All shipments are inspected before dispatch to guarantee that the product reaches you in perfect condition.
