Product Description:

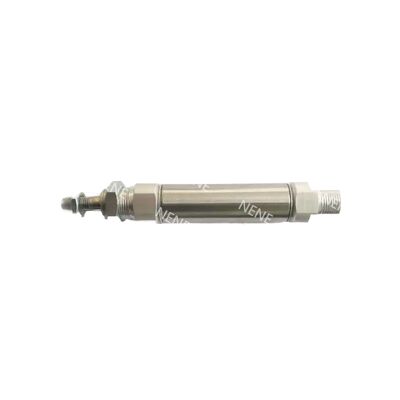

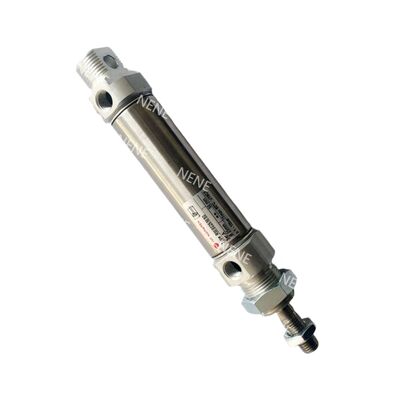

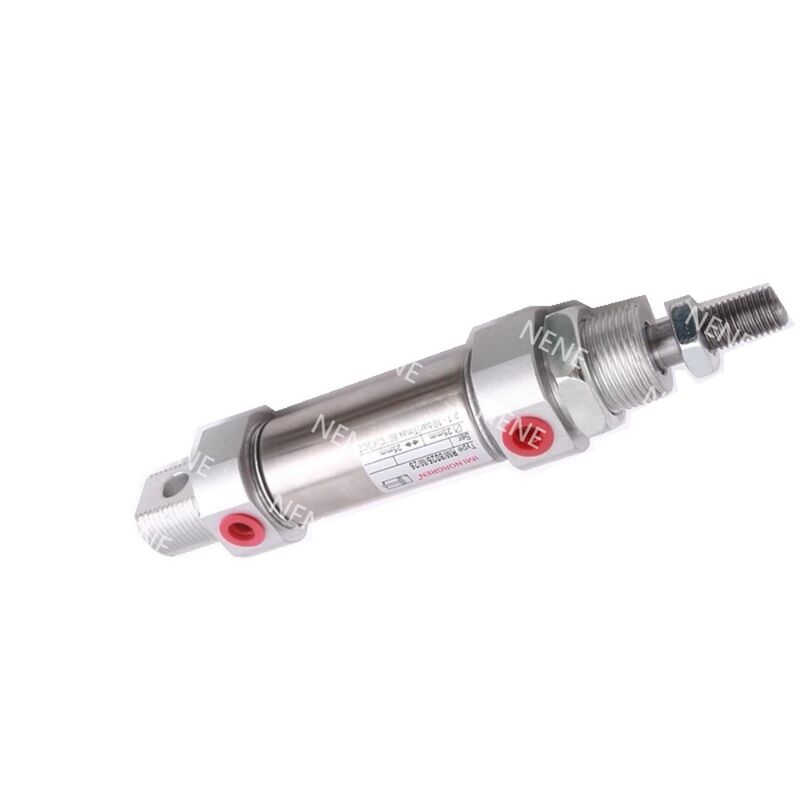

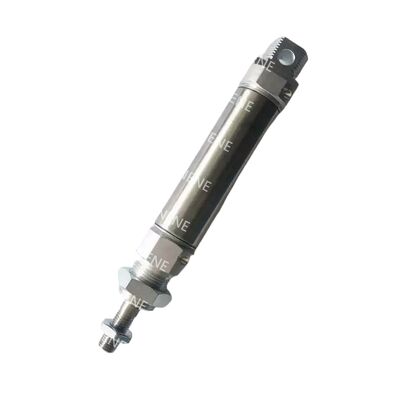

The RM/28000/M series consists of compact, single-acting cylinders featuring a spring return mechanism. These Roundline cylinders come equipped with a magnetic piston as a standard feature, ensuring reliable performance in various applications.
Constructed with a stainless-steel tube and clear anodized aluminum end caps, these cylinders offer excellent corrosion resistance and high durability. Their robust design ensures they maintain strength while being lightweight and easy to integrate.
Additionally, the RM/28000/M range is designed to be compatible with the ISO 6432 standard, making them an ideal choice for pneumatic positioning tasks where space is limited. Their compact size and short-stroke capabilities make them perfect for automation applications requiring precise and efficient operation within confined areas.
Features:
The compact ISO 6432 form factor is designed for effortless integration with standard fittings, making installation straightforward and efficient.
Constructed from corrosion-resistant materials, this product is well-suited for use in demanding and harsh environments, ensuring long-lasting durability.
The inclusion of a magnetic piston enhances functionality by simplifying limit sensing and providing reliable automation feedback.
Its robust mechanical design features double-crimped end caps, contributing to increased strength and secure assembly.
Technical Parameters:
| Item |
Specification |
| Bore (mm) |
10 / 12 / 16 / 20 / 25 |
| Standard strokes (mm) |
10, 25, 50 |
| Maximum stroke (mm) |
50 |
| Piston rod Ø (mm) |
4 (Ø10), 6 (Ø12, Ø16), 8 (Ø20), 10 (Ø25) |
| Port size |
M5 (Ø10/12/16), G1/8 (Ø20/25) |
| Medium |
Compressed air, filtered, lubricated or non-lubricated |
| Operating pressure |
2 to 10 bar (29 to 145 psi) |
| Operating temperature |
-10°C to +80°C (14°F to 176°F) |
| Operation |
Single-acting, spring return, magnetic piston |
| Cushioning |
Buffer cushioning |
| Barrel material |
Stainless steel |
| End cover material |
Clear anodised aluminium alloy |
| Piston rod material |
Stainless steel |
| Buffer material |
Polyurethane |
| Seals |
Nitrile rubber (NBR) |
| End cap design |
Double crimped high-strength end caps |
| Standard accessories |
Nose mounting nut, piston rod locknut |
| Optional accessories |
Reed switch with integral cable, switch mounting brackets, straight and elbow fittings, mounting hardware |
| Theoretical thrust @ 6 bar (N) |
Ø10: 40.7 ; Ø12: 57.7 ; Ø16: 102 ; Ø20: 165 ; Ø25: 260 |
| Return spring force F1 @ 6 bar (N) |
Ø10: 3.7 ; Ø12: 4.8 ; Ø16: 10.5 ; Ø20: 16.1 ; Ø25: 21.6 |
| Weight & dimensions |
See full datasheet dimensions table |
| Variants |
Central rear port, flat rear cover, multiple mounting options |
| Service kits |
Not available |
| Load / deflection data |
Refer to load and deflection charts in datasheet |
Applications:
Automated assembly and indexing processes benefit greatly from small-stroke actuation, enabling precise and efficient movement in manufacturing operations.
Handling electronic components, especially in pick-and-place tasks that involve short travel distances, requires systems designed for accuracy and reliability.
In packaging and machine tending applications, where compact and repeatable motion is essential, advanced automation solutions ensure consistent performance.
Applications that demand integrated position sensing rely on technology that provides real-time feedback for improved control and precision.
