Product Description:

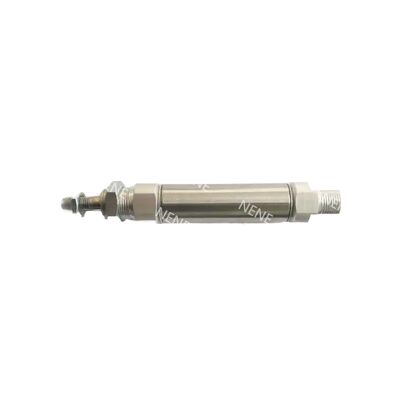

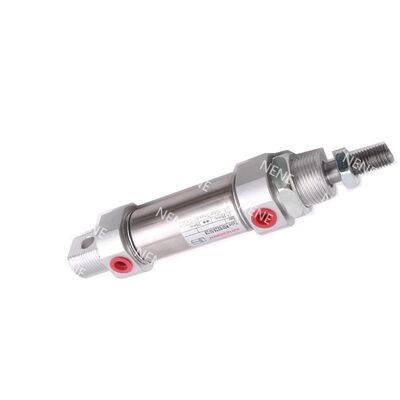

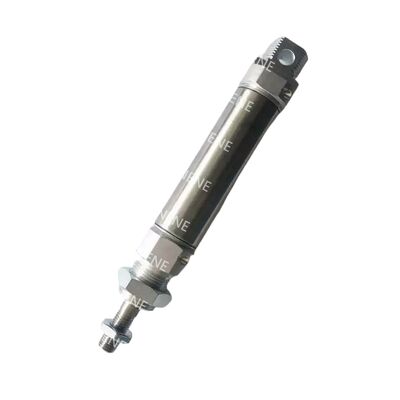

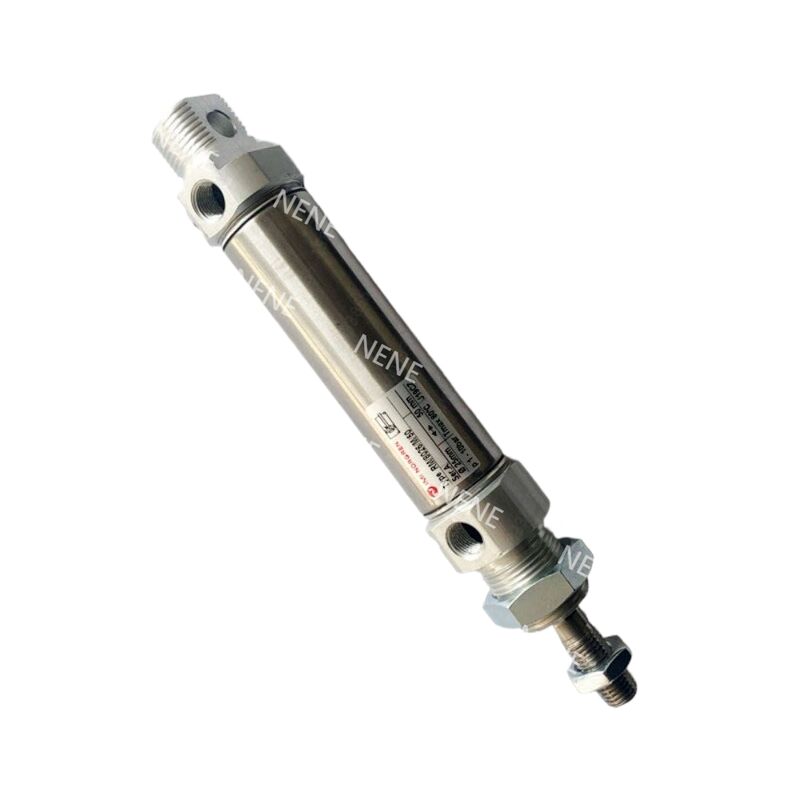

The RM/28000/M series consists of compact, single-acting Roundline cylinders featuring a spring return mechanism and a magnetic piston as a standard component. These cylinders are designed to offer reliable performance in a small form factor.
Constructed with a stainless-steel tube and clear anodised aluminium end caps, the cylinders ensure excellent resistance to corrosion while maintaining high structural strength. This combination of materials also contributes to the durability and longevity of the product.
Additionally, the RM/28000/M range is fully compatible with the ISO 6432 standard, making it an ideal solution for applications that require compact pneumatic positioning. Their design is especially suited for automation tasks involving short-stroke movements in tight or confined spaces.
Features:
The compact design of the ISO 6432 form factor ensures seamless integration with standard fittings, making it an ideal choice for various applications requiring space efficiency.
Constructed from corrosion-resistant materials, this product is well-suited to perform reliably in harsh and demanding environments, providing long-lasting durability.
Featuring a magnetic piston, it facilitates straightforward limit sensing and enhances automation feedback, contributing to improved operational efficiency.
Its robust mechanical build includes double-crimped end caps, which add to the overall strength and reliability of the device, ensuring consistent performance under pressure.
Technical Parameters:
| Item |
Specification |
| Bore (mm) |
10 / 12 / 16 / 20 / 25 |
| Standard strokes (mm) |
10, 25, 50 |
| Maximum stroke (mm) |
50 |
| Piston rod Ø (mm) |
4 (Ø10), 6 (Ø12, Ø16), 8 (Ø20), 10 (Ø25) |
| Port size |
M5 (Ø10/12/16), G1/8 (Ø20/25) |
| Medium |
Compressed air, filtered, lubricated or non-lubricated |
| Operating pressure |
2 to 10 bar (29 to 145 psi) |
| Operating temperature |
-10°C to +80°C (14°F to 176°F) |
| Operation |
Single-acting, spring return, magnetic piston |
| Cushioning |
Buffer cushioning |
| Barrel material |
Stainless steel |
| End cover material |
Clear anodised aluminium alloy |
| Piston rod material |
Stainless steel |
| Buffer material |
Polyurethane |
| Seals |
Nitrile rubber (NBR) |
| End cap design |
Double crimped high-strength end caps |
| Standard accessories |
Nose mounting nut, piston rod locknut |
| Optional accessories |
Reed switch with integral cable, switch mounting brackets, straight and elbow fittings, mounting hardware |
| Theoretical thrust @ 6 bar (N) |
Ø10: 40.7 ; Ø12: 57.7 ; Ø16: 102 ; Ø20: 165 ; Ø25: 260 |
| Return spring force F1 @ 6 bar (N) |
Ø10: 3.7 ; Ø12: 4.8 ; Ø16: 10.5 ; Ø20: 16.1 ; Ø25: 21.6 |
| Weight & dimensions |
See full datasheet dimensions table |
| Variants |
Central rear port, flat rear cover, multiple mounting options |
| Service kits |
Not available |
| Load / deflection data |
Refer to load and deflection charts in datasheet |
Applications:
Automated assembly processes benefit greatly from the use of indexing mechanisms combined with small-stroke actuation. These systems enhance precision and efficiency in repetitive tasks.
Handling electronic components often involves pick-and-place operations that require short travel distances. Utilizing specialized solutions for such movements ensures accuracy and reliability during production.
In packaging and machine tending applications, compact and repeatable motion is essential. Equipment designed to deliver consistent movement in limited spaces improves overall workflow and productivity.
Many applications demand integrated position sensing to monitor and control motion precisely. Incorporating position feedback allows for better automation performance and quality assurance.
