Product Description:

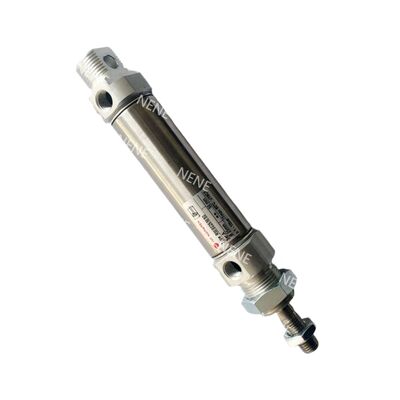

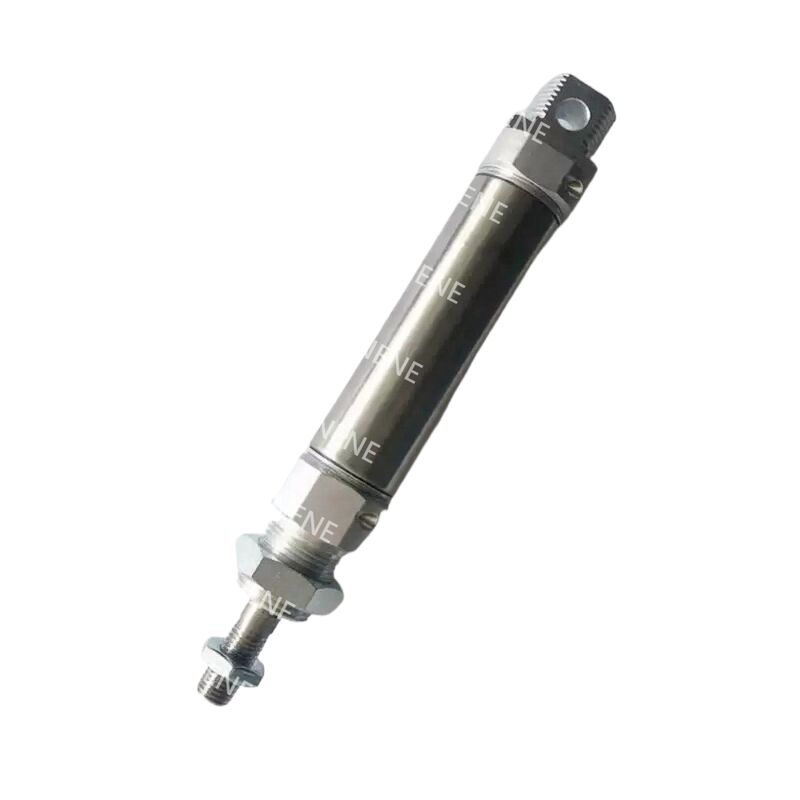

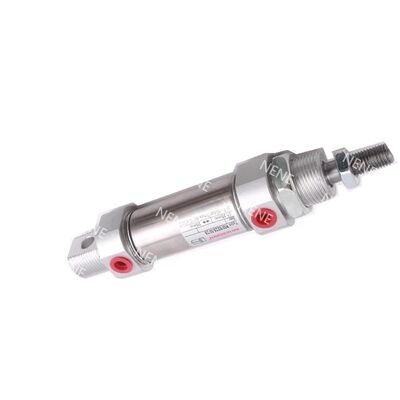

The RM/28000/M series consists of compact, single-acting Roundline cylinders that feature a spring return mechanism. These cylinders come equipped with a magnetic piston as a standard component, enhancing their functionality and reliability.
Constructed with a stainless-steel tube and clear anodised aluminium end caps, the design ensures excellent corrosion resistance and high durability. This robust build makes them suitable for demanding environments while maintaining a lightweight profile.
Additionally, the RM/28000/M range is fully compatible with the ISO 6432 standard, making it an ideal choice for applications requiring compact pneumatic positioning solutions and short-stroke automation, especially where space is limited.
Features:
The compact ISO 6432 form factor is designed to facilitate easy integration with standard fittings, ensuring a seamless installation process.
Constructed from corrosion-resistant materials, this product is ideally suited for use in demanding and harsh environments where durability is essential.
Featuring a magnetic piston, it simplifies limit sensing and enhances automation feedback, making it an efficient choice for various applications.
Its robust mechanical design includes double-crimped end caps, providing added strength and reliability for long-term operation.
Technical Parameters:
| Item |
Specification |
| Bore (mm) |
10 / 12 / 16 / 20 / 25 |
| Standard strokes (mm) |
10, 25, 50 |
| Maximum stroke (mm) |
50 |
| Piston rod Ø (mm) |
4 (Ø10), 6 (Ø12, Ø16), 8 (Ø20), 10 (Ø25) |
| Port size |
M5 (Ø10/12/16), G1/8 (Ø20/25) |
| Medium |
Compressed air, filtered, lubricated or non-lubricated |
| Operating pressure |
2 to 10 bar (29 to 145 psi) |
| Operating temperature |
-10°C to +80°C (14°F to 176°F) |
| Operation |
Single-acting, spring return, magnetic piston |
| Cushioning |
Buffer cushioning |
| Barrel material |
Stainless steel |
| End cover material |
Clear anodised aluminium alloy |
| Piston rod material |
Stainless steel |
| Buffer material |
Polyurethane |
| Seals |
Nitrile rubber (NBR) |
| End cap design |
Double crimped high-strength end caps |
| Standard accessories |
Nose mounting nut, piston rod locknut |
| Optional accessories |
Reed switch with integral cable, switch mounting brackets, straight and elbow fittings, mounting hardware |
| Theoretical thrust @ 6 bar (N) |
Ø10: 40.7 ; Ø12: 57.7 ; Ø16: 102 ; Ø20: 165 ; Ø25: 260 |
| Return spring force F1 @ 6 bar (N) |
Ø10: 3.7 ; Ø12: 4.8 ; Ø16: 10.5 ; Ø20: 16.1 ; Ø25: 21.6 |
| Weight & dimensions |
See full datasheet dimensions table |
| Variants |
Central rear port, flat rear cover, multiple mounting options |
| Service kits |
Not available |
| Load / deflection data |
Refer to load and deflection charts in datasheet |
Applications:
Automated assembly and indexing processes benefit greatly from small-stroke actuation, allowing precise and efficient movement within compact spaces.
Handling electronic components, such as pick-and-place operations, is supported effectively when short travel distances are involved, ensuring accuracy and speed.
Packaging tasks and machine tending applications frequently demand compact and repeatable motion, which can be achieved through specialized actuation systems.
In addition, applications that require integrated position sensing rely on these technologies to maintain precise control and feedback throughout their operation.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. For technical support, please ensure that you have the model number, specifications, and operating conditions available to help us assist you promptly.
We offer comprehensive services including installation guidance, maintenance advice, troubleshooting assistance, and replacement parts support. Our technical team is committed to helping you maximize the performance and lifespan of your pneumatic cylinder.
If you encounter any issues, common troubleshooting steps include checking for air leaks, ensuring proper lubrication, verifying mounting alignment, and inspecting seals and piston rods for wear or damage.
Regular maintenance is recommended to prevent downtime and maintain optimal functionality. This includes periodic inspection, cleaning, and replacement of worn components as needed.
For detailed product manuals, service documentation, and FAQs, please refer to the resources provided with your product or visit our official website.
We are dedicated to providing excellent customer support to ensure your satisfaction and operational success with our Piston Pneumatic Cylinder products.
