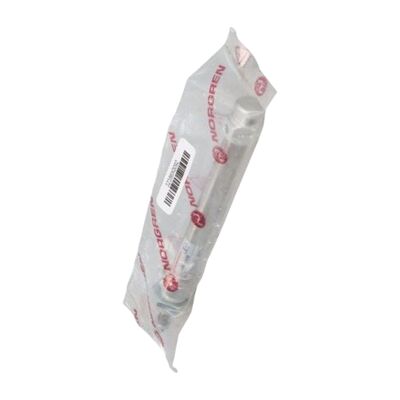

Magnetic Piston RM/28012/M/20 Ø12mm 20mm Stroke Compact Cylinder NORGREN ISO 6432 Position Feedback Ready

Product Description:

The RM/28000/M series consists of compact single-acting Roundline cylinders, featuring a spring return mechanism. These cylinders come equipped with a magnetic piston as a standard feature, ensuring reliable and efficient operation.

Constructed with a stainless steel tube and clear anodised aluminium end caps, the design offers excellent corrosion resistance and high durability. This combination of materials enhances the cylinder's strength while maintaining a lightweight profile.

Additionally, these cylinders conform to the ISO 6432 standard, making them perfectly suited for applications requiring compact dimensions. They are ideal for use in tight spaces and are well-suited to pneumatic positioning tasks and short-stroke automation processes.

Features:

The compact design follows the ISO 6432 form factor, allowing for seamless integration with standard fittings. This ensures that installation is straightforward and compatible with existing systems.

Constructed from corrosion-resistant materials, this product is ideal for use in harsh and demanding environments. Its durability guarantees long-lasting performance even under challenging conditions.

The inclusion of a magnetic piston enhances the device's functionality by simplifying limit sensing and providing reliable feedback for automation processes. This feature contributes to improved operational efficiency.

Additionally, the robust mechanical construction is reinforced with double-crimped end caps, ensuring structural integrity and increased resistance to mechanical stress during operation.

Technical Parameters:

Applications:

Automated assembly and indexing processes benefit greatly from small-stroke actuation, allowing for precise and efficient movement in compact spaces.

These systems are ideal for handling electronic components, particularly in pick-and-place operations that require short travel distances to maintain accuracy and speed.

They are also well-suited for packaging tasks and machine tending applications where consistent, repeatable motion is essential to maintain high productivity levels.

Additionally, for applications that demand integrated position sensing, these systems can be equipped with a reed switch accessory to provide reliable feedback and enhanced control.

Support and Services:

Our Piston Pneumatic Cylinder product is designed to provide reliable and efficient performance in a variety of industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, maintenance tips, and optimization advice to ensure the cylinder operates at peak efficiency.

We offer comprehensive services including product selection assistance, customized solutions to meet specific application requirements, and after-sales support to keep your pneumatic systems running smoothly. Regular maintenance and inspection recommendations are provided to extend the lifespan of the cylinder and prevent unexpected downtime.

Should you require replacement parts or upgrades, our support services include sourcing genuine components and offering retrofit options to enhance your system’s functionality. Additionally, we provide detailed technical documentation, user manuals, and troubleshooting guides to help address common issues quickly and effectively.

Our commitment to quality and customer satisfaction means we continuously update our support resources and service offerings to meet the evolving needs of our clients.

Packing and Shipping:

The Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-corrosion paper and secured within a custom-fitted foam insert to prevent movement and damage. The packaged product is then placed inside a sturdy, corrugated cardboard box designed to withstand shocks and impacts.

For shipping, the boxes are sealed with durable packing tape and labeled with handling instructions to ensure careful transport. Multiple boxes are palletized and shrink-wrapped for added stability during shipping. We offer various shipping options to meet your delivery needs, including standard, expedited, and freight services.

Upon receiving the Piston Pneumatic Cylinder, please inspect the packaging for any signs of damage and report any issues immediately to ensure prompt resolution. Our packaging and shipping process is designed to deliver your product safely and efficiently, maintaining its quality and performance.
