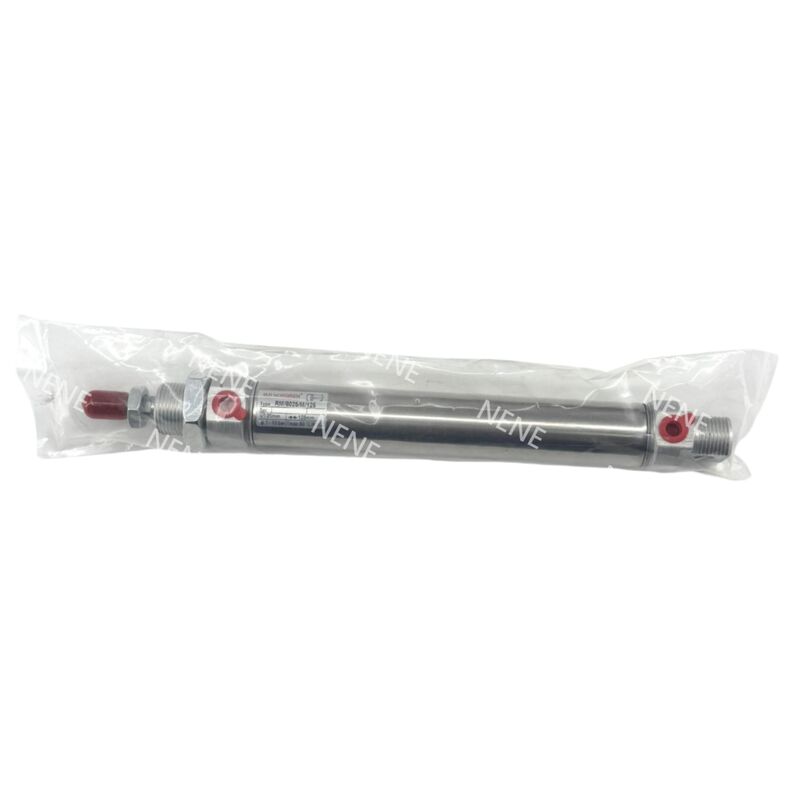

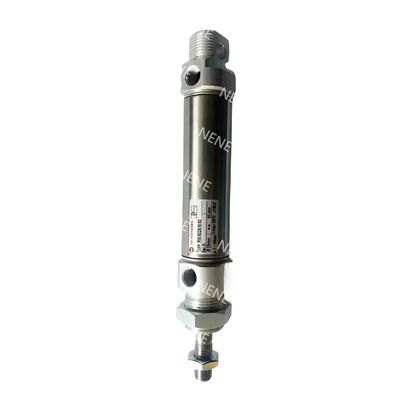

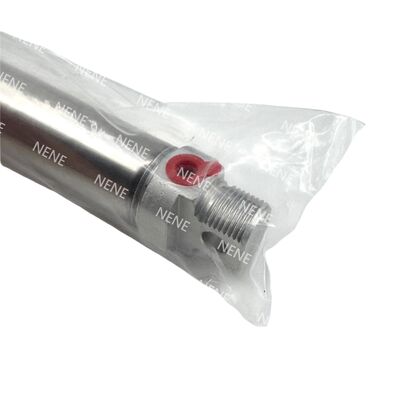

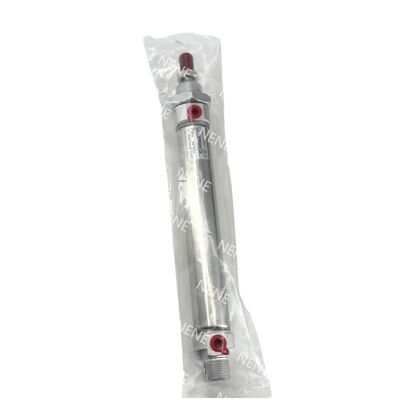

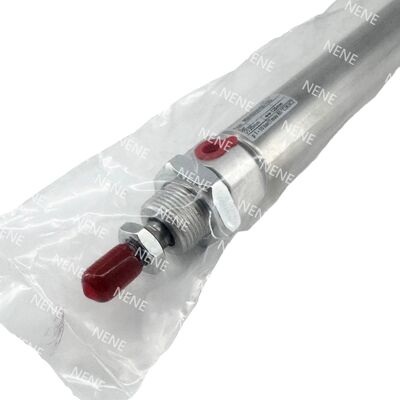

Long Travel Magnetic Cylinder RM/28010/M/160 Ø10mm 160mm Stroke IMI NORGREN ISO 6432 Position Feedback Ready

Product Description:

The RM/28000/M series consists of compact, single-acting Roundline cylinders that feature a spring return mechanism. These cylinders come standard with a magnetic piston, enhancing their functionality in various pneumatic systems.

Constructed with a stainless steel tube and clear anodised aluminium end caps, the RM/28000/M range offers excellent corrosion resistance and robust strength. This durable design ensures reliable performance even in demanding environments.

Moreover, these cylinders are designed to be compatible with the compact ISO 6432 standard, making them an ideal choice for applications where space is limited. They are particularly well-suited for precise pneumatic positioning and short-stroke automation tasks, providing efficient and accurate operation.

Features:

The compact ISO 6432 form factor allows for seamless integration with standard fittings, making installation straightforward and efficient.

Constructed from corrosion-resistant materials, this product is designed to perform reliably even in demanding and harsh environmental conditions.

Equipped with a magnetic piston, it facilitates simplified limit sensing and provides accurate feedback for automation systems.

Its robust mechanical build features double-crimped end caps, ensuring durability and long-lasting performance.

Technical Parameters:

Applications:

Automated assembly and indexing systems benefit greatly from small-stroke actuation, enabling precise and efficient movements within compact spaces.

In the field of electronic component handling, pick-and-place operations often require support for short travel distances, ensuring accurate placement and reliable handling.

This technology is also ideal for packaging and machine tending applications, where compact and repeatable motion is essential to maintain high productivity and consistency.

Additionally, it suits applications that demand integrated position sensing capabilities, especially when paired with a reed switch accessory for enhanced feedback and control.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. To ensure optimal operation, please follow the installation guidelines carefully and perform regular maintenance checks.

If you encounter any issues with the piston pneumatic cylinder, first verify that all connections are secure and that the air supply meets the specified pressure requirements. Common troubleshooting steps include checking for air leaks, inspecting seals and piston rods for wear or damage, and ensuring the cylinder is properly lubricated.

For maintenance, it is recommended to clean the cylinder regularly and replace seals or other wear components as needed to prevent performance degradation. Use only compatible lubricants and replacement parts to maintain product integrity.

Our technical support team is available to assist with detailed troubleshooting, replacement parts identification, and application advice to maximize the lifespan and efficiency of your piston pneumatic cylinder. Please consult the product manual for detailed specifications and safety instructions before use.

We also offer a range of services including installation support, routine maintenance programs, and onsite inspections to help you maintain peak performance of your pneumatic systems.

Packing and Shipping:

Our Piston Pneumatic Cylinders are carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-corrosion paper and securely placed in a custom-fitted foam insert to prevent movement and damage. The packaged product is then placed inside a sturdy corrugated cardboard box, designed to withstand impacts and environmental factors.

For shipping, we use reliable carriers with tracking options to guarantee timely delivery. All packages are clearly labeled with handling instructions and product details. We also offer special packaging solutions upon request to meet specific customer requirements or international shipping standards.
