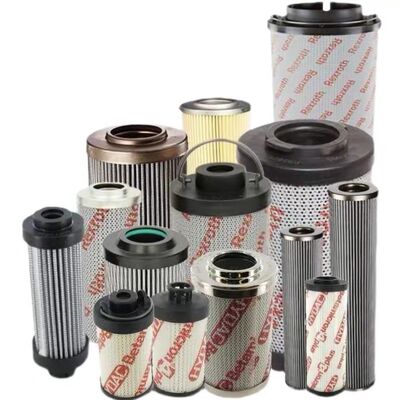

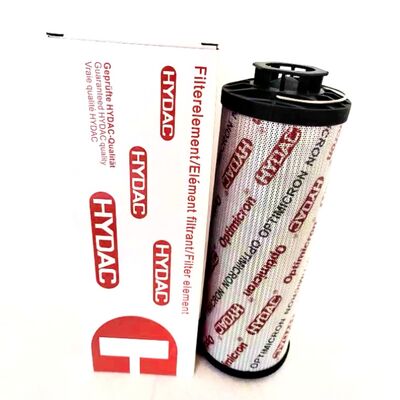

HYDAC Filter Element 0660D003BN3HC 0660 Series Filter

Product Description:

This series of filter elements is distinguished by its reliable performance and is manufactured in strict adherence to ISO international standards. Standards such as ISO 2941, which governs burst pressure verification, and ISO 3724, concerning fatigue resistance testing, are meticulously followed. This rigorous compliance ensures the filters’ structural integrity and guarantees long-term reliability in demanding applications.

A key safety enhancement integrated into most models is the bypass valve. This valve automatically activates when the pressure differential across a clogged filter reaches a critical level. By doing so, it maintains continuous oil flow within the system, preventing equipment damage caused by oil starvation. This feature acts as a safeguard, allowing for scheduled maintenance without unexpected interruptions.

Regarding materials and compatibility, the filter media primarily consists of glass fiber. This material is chosen for its excellent resistance to high temperatures and corrosion. Consequently, the 0660 series filters are compatible with a broad spectrum of operating fluids, including mineral oils, synthetic hydraulic oils, biodegradable oils, phosphate ester fire-resistant fluids, and water-glycol mixtures. These filters can operate reliably across a wide temperature range, typically from -25°C up to +110°C, adapting smoothly to various challenging conditions, from cold starts to high-temperature operations.

To accommodate diverse filtration needs, the series offers multiple models. For example, the 0660R010ON/-V model features a 10-micron filtration rating and utilizes glass fiber media. The 0660D010BN/HC model also provides 10-micron precision but adds a bypass valve for enhanced system protection. For applications requiring extremely high cleanliness levels, the 0660R005ON model delivers a fine 5-micron filtration rating. For the highest degree of precision, the 0660R001BN3HC model achieves an impressive 1-micron filtration capability, significantly extending the service life of hydraulic fluids.

Applications:

The HYDAC 0660 series filter element serves as a vital protective component within hydraulic and lubrication systems spanning a wide range of industrial sectors. Its primary role is to ensure the cleanliness and reliability of these systems by effectively filtering out harmful contaminants.

In the realms of heavy industry and manufacturing, the 0660 series is extensively utilized in hydraulic power units and circulating lubrication systems. Typical applications include metallurgical equipment such as rolling mills and continuous casters, construction machinery like excavators and tunnel boring machines, plastic injection molding machines, machine tools, as well as papermaking machinery. The filter’s main purpose in these settings is to remove contaminants including metal wear particles and debris from seals, thereby maintaining system performance and longevity.

The energy and power generation sectors also rely heavily on the HYDAC 0660 filter element. It is often installed in wind turbine pitch control systems, lubrication setups for steam turbines in thermal power plants, gas turbine lubrication stations, and auxiliary hydraulic systems within nuclear power plants. By safeguarding precision servo valves and bearings, it plays a crucial role in enhancing the reliability and efficiency of power generation equipment.

Additionally, the applications of the HYDAC 0660 series extend to the transportation industry and specialized equipment fields. This includes hydraulic systems used in ship deck machinery, port cranes, aerospace ground support devices, as well as hydraulic components in railway vehicles. Its adaptability and robust filtration capabilities make it suitable for these demanding environments.

Support and Services:

Our Hydraulic Filter Elements are designed to ensure optimal filtration performance and protect your hydraulic systems from contaminants. For technical support and service inquiries, please refer to the product manual included with your purchase, which provides detailed installation, maintenance, and troubleshooting instructions.

We recommend regular inspection and replacement of the filter elements according to the operating conditions and manufacturer's guidelines to maintain system efficiency and prevent damage. Using genuine replacement elements is essential to ensure compatibility and filtration effectiveness.

If you experience any issues with your Hydraulic Filter Element, such as reduced flow, pressure drop, or contamination bypass, please consult the troubleshooting section of the user manual. Common solutions include checking for proper installation, verifying system pressure, and ensuring timely replacement of the filter element.

For further assistance, technical documentation, or to request service support, please visit our official website or authorized service centers. Our support team is equipped to provide expert guidance on product selection, system integration, and maintenance best practices to help maximize the lifespan and performance of your hydraulic filtration system.

Packing and Shipping:

Product Packaging: The Hydraulic Filter Element is carefully packaged to ensure maximum protection during transit. Each filter element is individually wrapped in a protective sleeve to prevent contamination and damage. The wrapped elements are then placed in sturdy, corrugated cardboard boxes with adequate cushioning materials such as foam inserts or bubble wrap to absorb shocks and vibrations. The packaging is clearly labeled with product details, handling instructions, and batch information to facilitate easy identification and inventory management.

Shipping: The packaged Hydraulic Filter Elements are shipped using reliable logistics providers to ensure timely and safe delivery. Depending on the destination and order size, shipping options include air freight, sea freight, or ground transportation. All shipments are accompanied by the necessary documentation, including packing lists and certificates of conformity, if required. Special care is taken to handle packages marked as fragile to maintain product integrity throughout the shipping process.
