Product Description:
This series of filter elements is known for its reliable performance and is manufactured in strict accordance with international ISO standards. These include ISO 2941, which verifies burst pressure, and ISO 3724, which tests fatigue resistance. Adherence to these standards guarantees the structural integrity and long-term dependability of the filters.
A key safety feature incorporated in most models is the integrated bypass valve. This valve automatically opens when the pressure difference across a clogged filter reaches a critical level, allowing oil to continue flowing through the system. This mechanism helps prevent equipment failure caused by oil starvation and provides a safety buffer until scheduled maintenance can be performed.
The filter medium is typically made from glass fiber, providing excellent resistance to high temperatures and corrosion. This makes the 0660 series compatible with a wide variety of operating fluids, including mineral oils, synthetic hydraulic oils, biodegradable oils, phosphate ester fire-resistant fluids, and water-glycol mixtures. The filters can operate within a broad temperature range, generally from -25°C to +110°C, enabling them to perform reliably in harsh conditions, from cold starts to high-temperature environments.

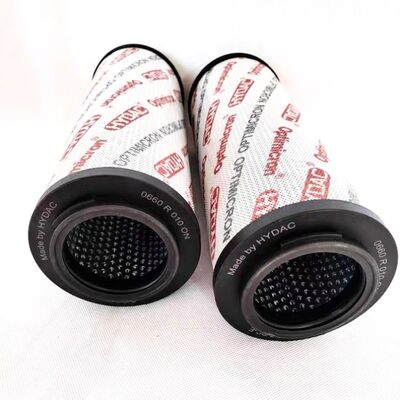

To accommodate different application requirements, the series includes several models. For example, the 0660R010ON/-V model features a 10-micron filtration rating and uses glass fiber material. Similarly, the 0660D010BN/HC model offers 10-micron filtration and includes a bypass valve to protect the system. For applications requiring higher cleanliness levels, the 0660R005ON model provides 5-micron precision filtration. The 0660R001BN3HC model achieves an exceptionally high filtration precision of 1 micron, which significantly helps to prolong the service life of hydraulic fluids.
Applications:
The HYDAC 0660 series filter element plays a vital role as a protective component in hydraulic and lubrication systems across a wide range of industrial fields.
In the heavy industry and manufacturing sectors, this filter element is extensively utilized in hydraulic power units and circulating lubrication systems. It is particularly employed in metallurgical machinery such as rolling mills and continuous casters, construction equipment like excavators and tunnel boring machines, as well as plastic injection molding machines, machine tools, and papermaking machines. The primary purpose of the filter is to remove contaminants such as metal wear particles and seal debris, ensuring the smooth operation of these machines.
Within the energy and power generation industries, the HYDAC 0660 series filter is frequently found in wind turbine pitch control systems and lubrication systems for steam turbines at thermal power plants. It is also used in gas turbine lubrication stations and auxiliary hydraulic systems in nuclear power plants. By filtering out impurities, it helps protect sensitive components like precision servo valves and bearings.
Additionally, this filter series finds applications in the transportation and special equipment sectors. It is employed in the hydraulic systems of ship deck machinery, port cranes, aerospace ground support equipment, and hydraulic components in railway vehicles, contributing to the reliability and longevity of these critical systems.
Support and Services:
Our Hydraulic Filter Element is designed to provide exceptional filtration performance, ensuring the longevity and efficiency of your hydraulic systems. For technical support, we offer comprehensive assistance including troubleshooting, maintenance guidance, and replacement recommendations to help you maintain optimal filter performance.
We recommend regular inspection and timely replacement of the filter element to prevent contamination and system failures. Our technical team can assist in identifying the correct filter model for your specific application and provide detailed installation instructions.
In addition to technical support, we offer a range of services including custom filtration solutions, performance testing, and system compatibility analysis. Our experts are committed to helping you achieve maximum system reliability and reduce downtime through effective filtration management.
For detailed product specifications, maintenance schedules, and troubleshooting tips, please refer to the product manual or visit our online support resources.
Packing and Shipping:
The Hydraulic Filter Element is carefully packaged to ensure maximum protection during transportation. Each filter element is individually wrapped in a clean, moisture-resistant plastic bag to prevent contamination and corrosion. The wrapped elements are then placed in sturdy, corrugated cardboard boxes that provide excellent cushioning and resistance to impact.
For bulk orders, multiple boxes are securely packed onto pallets and shrink-wrapped to prevent movement and damage during shipping. All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate efficient delivery and inventory management.
We use reliable shipping services to ensure timely and safe delivery of the Hydraulic Filter Elements to our customers worldwide. Our packaging standards comply with international shipping regulations, guaranteeing that the product arrives in perfect condition and ready for immediate use.
