Product Description:

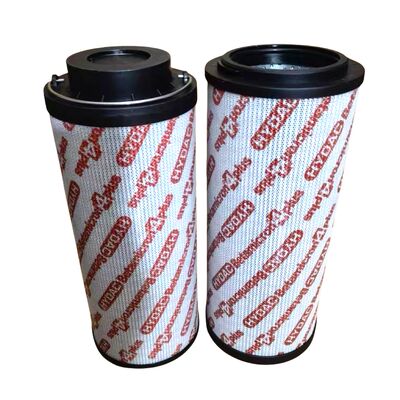

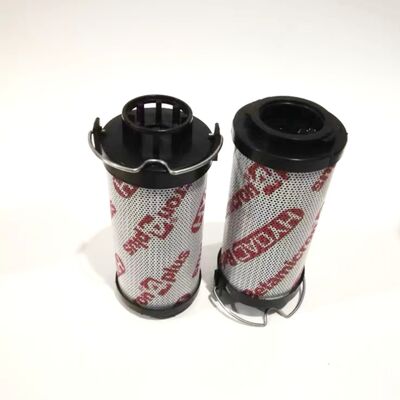

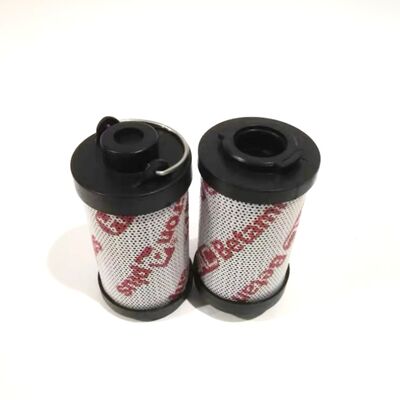

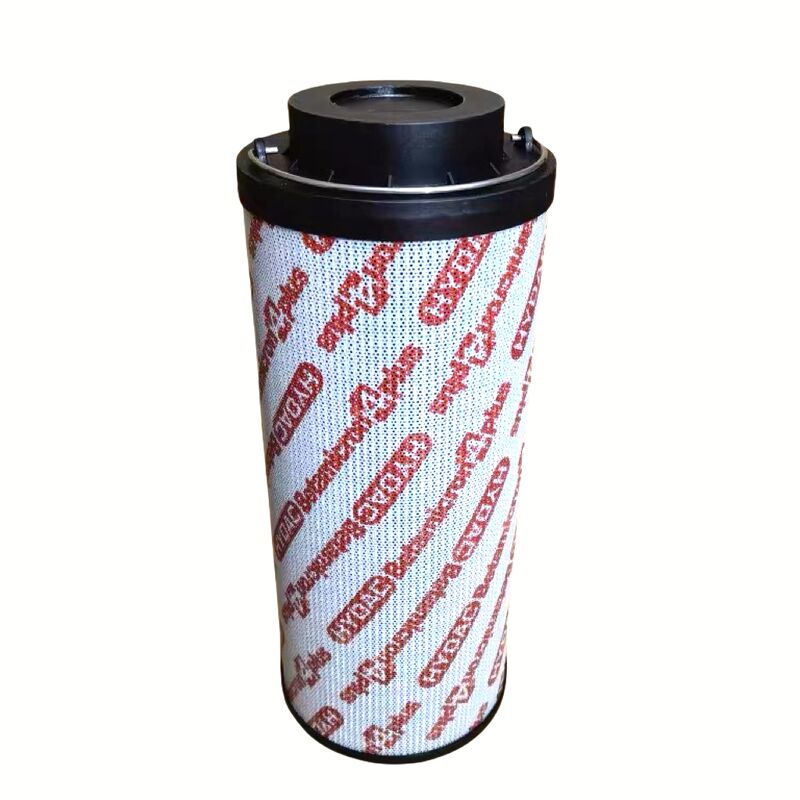

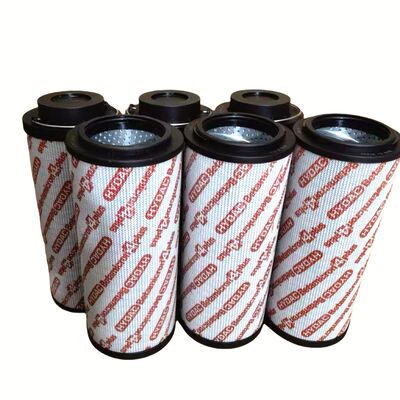

This series of filter elements is known for its reliable performance and is produced in strict accordance with international ISO standards. These include ISO 2941, which verifies burst pressure resistance, and ISO 3724, focused on fatigue resistance testing. Compliance with these standards guarantees the structural integrity and long-term dependability of the filters.
One notable safety feature incorporated in most models is the integrated bypass valve. This valve automatically activates when the pressure differential across a clogged filter reaches a critical level. By doing so, it maintains continuous oil flow within the system, preventing equipment damage caused by oil starvation and providing a safeguard that allows for planned maintenance intervals.
In terms of materials and fluid compatibility, the filter medium predominantly uses glass fiber. This material is well-regarded for its resistance to high temperatures and corrosion, enabling the 0660 series filters to work effectively with a diverse range of operating fluids. These include mineral oils, synthetic hydraulic oils, biodegradable oils, phosphate ester fire-resistant fluids, and water-glycol mixtures.
The operating temperature range of these filters is extensive, generally functioning reliably between -25°C and +110°C. This broad range allows them to perform efficiently in various demanding environments, from cold startups to high-temperature conditions.
The series offers a variety of models to suit different filtration requirements. For example, the 0660R010ON/-V model provides a filtration rating of 10 microns using glass fiber media. The 0660D010BN/HC model also features a 10-micron rating and includes a bypass valve for additional system protection.
For systems demanding higher cleanliness levels, the 0660R005ON model delivers filtration precision down to 5 microns. Even higher precision is available with the 0660R001BN3HC model, which achieves filtration at the 1-micron level. This ultra-fine filtration helps extend the service life of hydraulic fluids by effectively removing smaller contaminants.
Applications:
The HYDAC 0660 series filter element plays a vital role as a protective device in hydraulic and lubrication systems across a wide range of industrial fields.
In sectors such as heavy industry and manufacturing, this filter is extensively utilized in hydraulic power units and circulating lubrication systems. It is especially common in metallurgical equipment including rolling mills and continuous casters, as well as construction machinery like excavators and tunnel boring machines. Additionally, it finds use in plastic injection molding machines, various machine tools, and papermaking machinery. The primary purpose of the filter is to remove contaminants such as metal wear particles and seal debris, thereby ensuring system reliability and longevity.
Within the energy and power generation industry, the HYDAC 0660 series filter is frequently employed in wind turbine pitch control systems, lubrication systems for steam turbines used in thermal power plants, gas turbine lubrication stations, and auxiliary hydraulic systems in nuclear power plants. By filtering impurities, it safeguards precision components such as servo valves and bearings from damage.
Moreover, the filter's application extends into the transportation and specialized equipment industries. It is used in hydraulic systems for ship deck machinery, port cranes, aerospace ground support equipment, as well as hydraulic components in railway vehicles, providing essential protection and enhancing operational efficiency in these demanding environments.
Support and Services:
Our Hydraulic Filter Elements are designed to provide superior filtration performance, ensuring the longevity and efficiency of your hydraulic systems. For technical support, please refer to the product manual included with your purchase, which contains detailed installation instructions, maintenance guidelines, and troubleshooting tips.
We recommend regular inspection and timely replacement of the filter element to prevent contamination and maintain optimal system performance. Replacement intervals may vary depending on operating conditions; consult the manual for specific recommendations.
Should you encounter any issues or require further assistance, our technical support team is available to provide expert guidance on product selection, installation, and maintenance procedures. We are committed to helping you achieve the best results with your hydraulic filtration needs.
Additionally, we offer a range of complementary services including custom filtration solutions, on-site support, and training sessions to ensure your team is well-equipped to handle all aspects of hydraulic system filtration.
For warranty information and service policies, please refer to the warranty documentation provided with your product or visit our official website.
Packing and Shipping:
The Hydraulic Filter Element is carefully packaged to ensure maximum protection during transit. Each filter element is wrapped in a protective plastic sleeve to prevent contamination and damage. It is then placed in a sturdy cardboard box with foam inserts to secure the product and minimize movement. The outer packaging is clearly labeled with product information and handling instructions.
For shipping, the packaged Hydraulic Filter Elements are consolidated into larger cartons or pallets depending on order volume. All shipments are handled with care to avoid exposure to moisture, dust, and physical impacts. We work with reliable carriers to ensure timely and safe delivery to your location worldwide.
