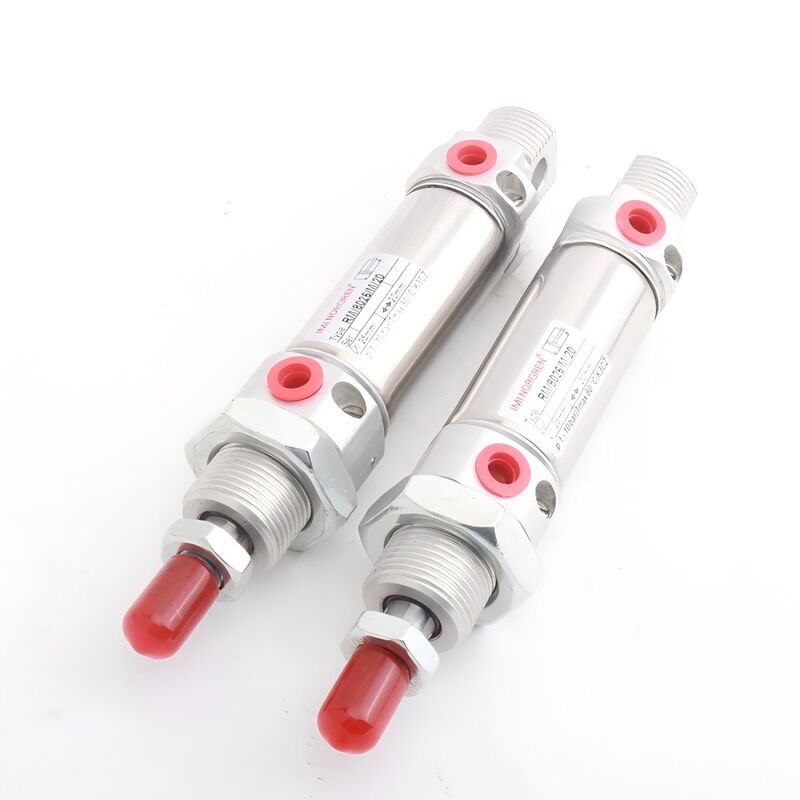

RM/28010/20 RM/28010/25 Roundline cylinders (ISO) Single acting, ISO 6432

Product Description:

The Piston Pneumatic Cylinder is a high-performance ISO 6432 cylinder designed to deliver reliable and efficient operation in a variety of industrial applications. This compact cylinder is engineered with precision to provide smooth and consistent motion control, making it an ideal choice for automation systems, manufacturing processes, and other pneumatic applications where space-saving and durability are crucial.

One of the standout features of this pneumatic cylinder is its buffer cushioning system. The buffer cushioning ensures that the piston decelerates gradually at the end of its stroke, reducing impact and noise while enhancing the overall lifespan of the cylinder. This cushioning mechanism not only protects the internal components but also contributes to smoother operation and increased precision, which is essential for tasks requiring controlled and repeatable movements.

The piston pneumatic cylinder is available in multiple bore sizes, including 10 mm, 12 mm, 16 mm, 20 mm, and 25 mm. This range of bore diameters allows users to select the optimal cylinder size based on their application requirements, balancing force output and compactness. Whether you need a small, lightweight cylinder for delicate operations or a larger bore for applications demanding greater force, this product line accommodates diverse needs with ease.

Designed for single-acting operation, the cylinder features a spring return mechanism that ensures the piston returns to its original position automatically once the applied pressure is released. This simplifies control and reduces the need for additional components in the pneumatic circuit. Additionally, the magnetic piston design enables easy integration with magnetic sensors for position detection, enhancing automation capabilities and allowing for precise monitoring of the cylinder’s position within the system.

The operating pressure range of the piston pneumatic cylinder spans from 2 to 10 bar (29 to 145 psi), providing flexibility to perform under various pressure conditions while maintaining consistent performance. This wide operating pressure range makes the cylinder suitable for both light-duty and more demanding pneumatic applications, ensuring reliability and adaptability across different industrial environments.

Constructed with a stainless steel barrel, the cylinder offers exceptional resistance to corrosion, wear, and environmental factors. This robust material choice ensures long-term durability and dependable operation even in harsh conditions, such as exposure to moisture, chemicals, or extreme temperatures. The stainless steel barrel not only prolongs the service life of the cylinder but also minimizes maintenance requirements, contributing to reduced downtime and operational costs.

In summary, this ISO 6432 compact pneumatic cylinder combines advanced features such as buffer cushioning, multiple bore sizes, single-acting spring return operation, and a magnetic piston with a durable stainless steel barrel to deliver superior performance and reliability. Its design caters to the needs of modern automation and industrial applications, providing a versatile and efficient solution for motion control. Whether you are looking to enhance your pneumatic system with a high-quality compact cylinder or require a dependable ISO 6432 cylinder for precise and smooth operation, this piston pneumatic cylinder stands out as an excellent choice.

Technical Parameters:

Applications:

The NORGREN Piston Pneumatic Cylinder, model number RM/28012/20, is a highly versatile and reliable compact cylinder designed to meet the diverse needs of various industrial applications. Certified with CE, this air piston cylinder ensures top-notch quality and safety standards, making it an ideal choice for automated machinery and equipment requiring precise and efficient linear motion.

This compact cylinder is particularly well-suited for environments where space is limited but performance cannot be compromised. Its single-acting, spring return, magnetic piston operation offers smooth and controlled motion, enhanced by buffer cushioning that minimizes impact and prolongs the lifespan of the cylinder. With bore sizes ranging from 10mm to 25mm and an operating pressure of 2 to 10 Bar (29 to 145 Psi), the RM/28012/20 model caters to a wide range of force and speed requirements.

The operating temperature range of -10°C to +80°C (14°F to 176°F) allows this air piston cylinder to perform reliably in various climatic conditions, from cold storage facilities to warmer industrial settings. Its robust construction ensures consistent performance in automated assembly lines, packaging machines, material handling systems, and pneumatic clamping devices.

Industries such as automotive manufacturing, electronics assembly, food processing, and pharmaceuticals can benefit greatly from the NORGREN compact cylinder. Its quick delivery time of 1-7 work days after payment, along with flexible packaging options tailored to client requirements, facilitates seamless integration into production schedules. The RM/28012/20 is available with a minimum order quantity of just one piece, enabling both small-scale and large-scale operations to access this efficient pneumatic solution.

With a supply capacity of 5000 pieces per month, and payment terms including T/T, Western Union, and PayPal, purchasing this compact cylinder is convenient and straightforward. The negotiable price ensures competitive affordability, reinforcing NORGREN’s commitment to delivering high-quality pneumatic components that enhance productivity and operational efficiency.

In summary, the NORGREN RM/28012/20 piston pneumatic cylinder is an excellent compact cylinder choice for applications demanding precise, durable, and efficient pneumatic actuation. Its combination of magnetic piston technology, buffer cushioning, and robust operational parameters makes it indispensable in modern industrial automation and pneumatic systems.

Packing and Shipping:

Each Piston Pneumatic Cylinder is carefully packaged to ensure protection during transit. The cylinder is first wrapped in anti-static bubble wrap to prevent any surface damage and then placed inside a sturdy cardboard box designed to absorb shocks and impacts. Additional padding materials, such as foam inserts or air cushions, are used to secure the product firmly within the box, minimizing movement and reducing the risk of damage.

For shipping, we use reliable courier services that provide tracking and insurance options to guarantee safe and timely delivery. All packages are clearly labeled with handling instructions, including “Fragile” and “This Side Up,” to ensure proper care throughout the shipping process. We also offer custom packaging solutions for bulk orders or special requirements to meet customer needs effectively.
