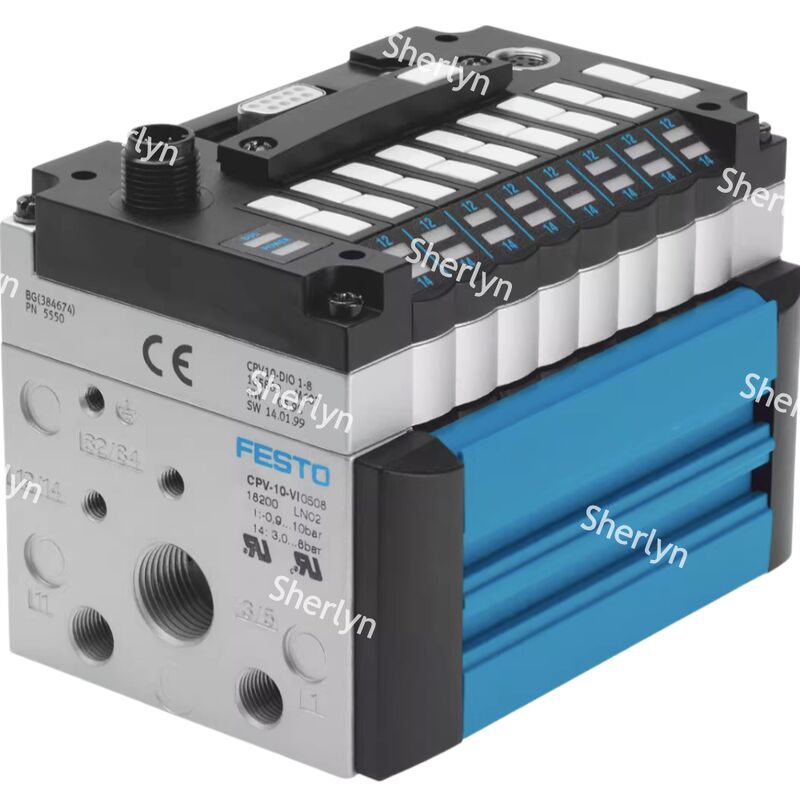

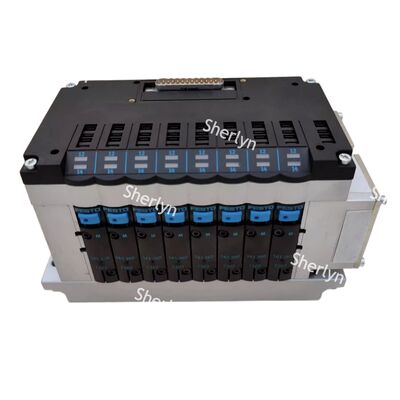

FESTO Valve Island CPV10-VI CPV10 Series

Product Description:

One of the standout characteristics of this valve series is its remarkable compactness. Each valve plate measures only 10 millimeters in width, allowing a dual-valve function (either dual electric control or two position five way) to be incorporated within a minimal installation space. This results in a very high power density, enabling the valves to be installed directly adjacent to actuators or equipment modules, thus significantly reducing the space needed in control cabinets.

The CPV10 features a modular splicing design that provides great flexibility. Multiple valve plates—typically ranging from two to eight—can be connected according to actual operational requirements and managed collectively via bus nodes. This approach simplifies both configuration and expansion. When additional functions are needed in the future, simply attaching more valve plates is sufficient.

Despite its compact size, this valve series delivers impressive flow capabilities, supporting a standard flow rate of up to 400 liters per minute. This capacity is enough to drive most standard cylinders effectively. Furthermore, its proximity installation near actuators significantly shortens the pneumatic path, which minimizes pressure losses and enhances the cylinder’s response speed.

The valve series offers a broad range of electrical interface options tailored to various on-site applications, including:

• Multi-pin Interface: Utilizes multi-core cables to streamline wiring complexity.
• Fieldbus Interface: Compatible with leading industrial fieldbus protocols such as PROFIBUS-DP, DeviceNet, CANopen, EtherCAT, and more to facilitate seamless integration into automation systems.
• AS-i Interface: Ideal for straightforward distributed I/O control setups.

With an IP65 protection rating, the valve island effectively guards against dust ingress and water from all directions, guaranteeing reliable operation under harsh industrial conditions. Moreover, certain models have achieved ATEX explosion-proof certification, making them suitable for use in hazardous locations, including chemical and pharmaceutical manufacturing environments.

Each valve plate comes equipped with an LED status indicator that clearly shows the valve’s operational status, such as on/off states and fault conditions. Most models also include manual control mechanisms, or manual triggers, which facilitate straightforward manual operation during debugging, maintenance tasks, or power outages, thereby streamlining the overall maintenance process.

Applications:

The CPV10 valve island is known for its compact design, flexibility, and high reliability, making it a popular choice in various automation applications that demand both space efficiency and performance.

In general industrial automation, the CPV10 is well-suited for a range of equipment including packaging machinery, assembly lines, material handling systems, transportation devices, and sorting machines. Its versatility supports smooth and efficient operation across these sectors.

For industries where cleanliness is paramount, such as electronic assembly, semiconductor manufacturing, medical device production, and pharmaceutical packaging, the CPV10 valve island is commonly utilized. It offers the high volume and reliable pneumatic control necessary to meet stringent quality and hygiene standards.

Additionally, there are explosion-proof versions of the CPV10 valve island designed for use in special environmental conditions. These models are ideal for chemical and biological industries where flammable or explosive gases and dust might be present, ensuring safety and compliance with rigorous industrial regulations.

Support and Services:

Festo provides comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our support includes detailed product documentation, application guidance, and troubleshooting assistance to help you select and maintain the right solenoid valve for your specific needs.

We offer expert advice on installation, operation, and maintenance procedures to maximize the lifespan and efficiency of your solenoid valves. Our technical team is equipped to assist with customization options, integration into automated systems, and resolving any technical issues that may arise during use.

Additionally, Festo supplies a range of replacement parts and accessories to support ongoing maintenance and repairs, ensuring minimal downtime. We also provide training programs and resources to help users fully understand the functionality and capabilities of our solenoid valve products.

For detailed product specifications, user manuals, and software updates, customers can access our online resources which are regularly updated to reflect the latest innovations and industry standards.

Packing and Shipping:

The Festo Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually packed in a sturdy, cushioned box that prevents damage from shocks and vibrations. The packaging materials are designed to be environmentally friendly while providing secure containment.

For shipping, the packages are sealed and labeled with all necessary handling instructions and product information. Depending on the order size, multiple units may be consolidated in larger cartons with additional padding to maintain product integrity. All shipments are tracked to guarantee timely and safe delivery to the customer’s specified location.
